Brother MFC-J2310 Service Manual

3-61
Confidential

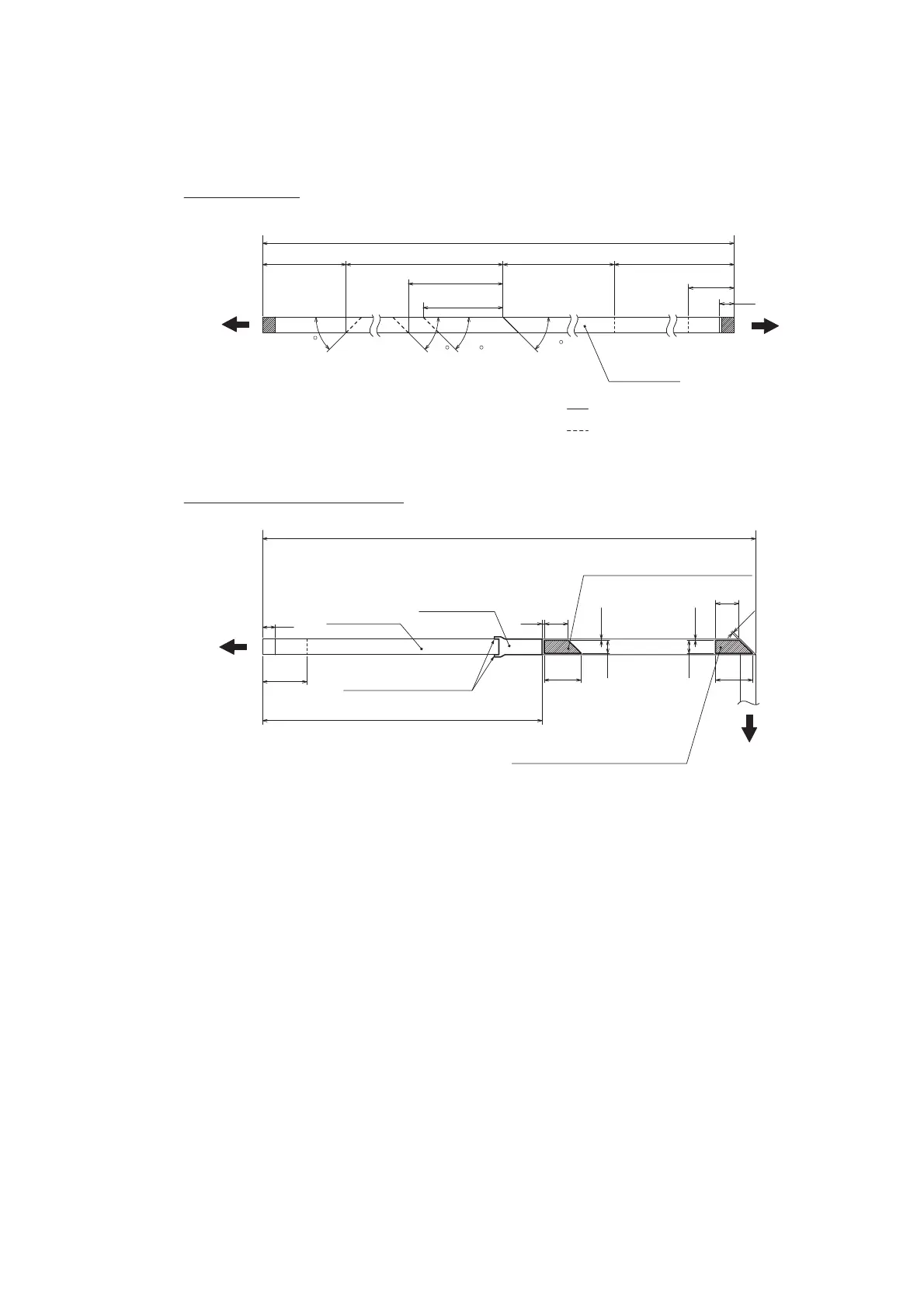

Assembling Note: Assemble new first side CIS flat cable, FFC rubber and FFC tension film as
shown below.
521
15
124
24
1
1.5
14
1.5
14
47
295
38
38
To CIS unit
To main body
UL symbol
print side
Hook two pawls here.
Double-sided tape attachment position
FFC
tension film
Double-sided tape
(to be attached onto the back)
Double-sided tape
(to be attached onto the back)
To main body
To CIS unit
UL symbol
print side
Folding instructions
45
45 45
45
865
87.5 256.5
99.5
47
15
83.5
226 295
Valley fold
Mountain fold
(Unit: mm)
(3_CIS_FFC_E)
