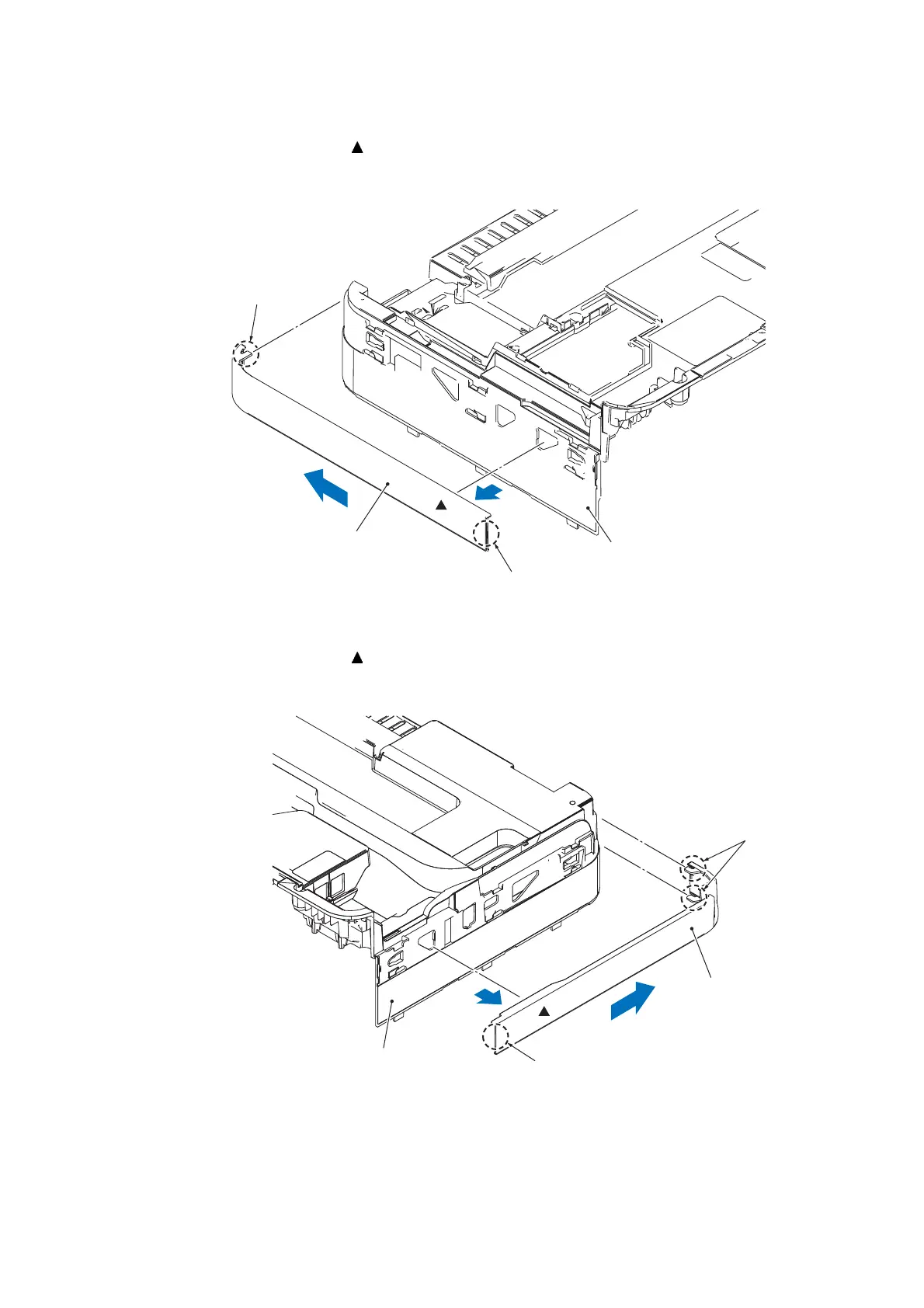

(2) Release the hook (indicated in the illustration below) on the upper side cover L.
(3) While pushing out the -marked point on the upper side cover L from the inside, slide the
cover L to the rear and remove it from the upper cover.
(4) Release the hook (indicated in the illustration below) on the upper side cover R.
(5) While pushing out the -marked point on the upper side cover R from the inside, slide the
cover R to the rear and remove it from the upper cover.
Put your fingers here.
(Rear)
(Front)
Upper cover
Upper side cover L
Hook
(3_036_E)
Put your fingers here.
(Rear)
(Front)
Upper cover
Hooks
(3_037_E)
Upper side cover R
