3-70
Confidential

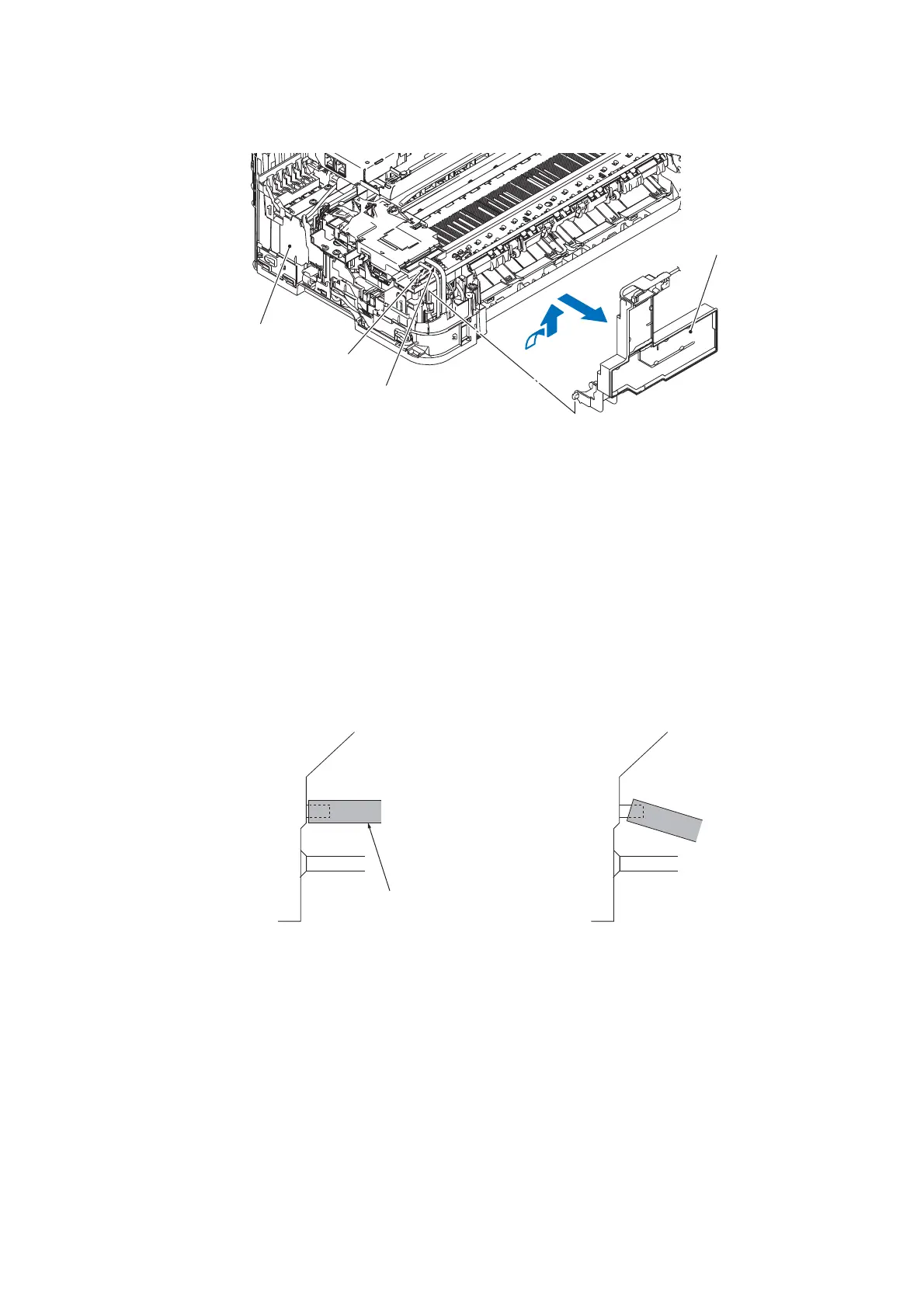

(3) Turn the ink absorber box 90 degrees to the rear and take it out.
Assembling Notes:
• It is not necessary to trim the ends of the main drain tube and air vent tube when reconnecting
those tubes to the ink absorber box.
• Take care not to connect the drain tube or air vent tube to the ink absorber box at an angle.
Tubes connected at an angle come off easily, resulting in ink leakage. After connection,
check that there is no ink leakage.
• If you replace the ink absorber box (without replacing the main PCB), reset the purge count,
using the procedure given in Chapter 4, Section 1.14.
It is also recommended that the flushing box be replaced and the flushing count be reset as
necessary since the flushing count may approach the upper limit.
(Rear)
Lower cover
Ink absorber box
Drain tube
Air vent tube
(3_047_E)
Correct Wrong
Main drain tube
Do not connect the main drain tube
at an angle.
Connect the tube all the way seated.
(3_048_E)
To Next Page
