3-72
Confidential

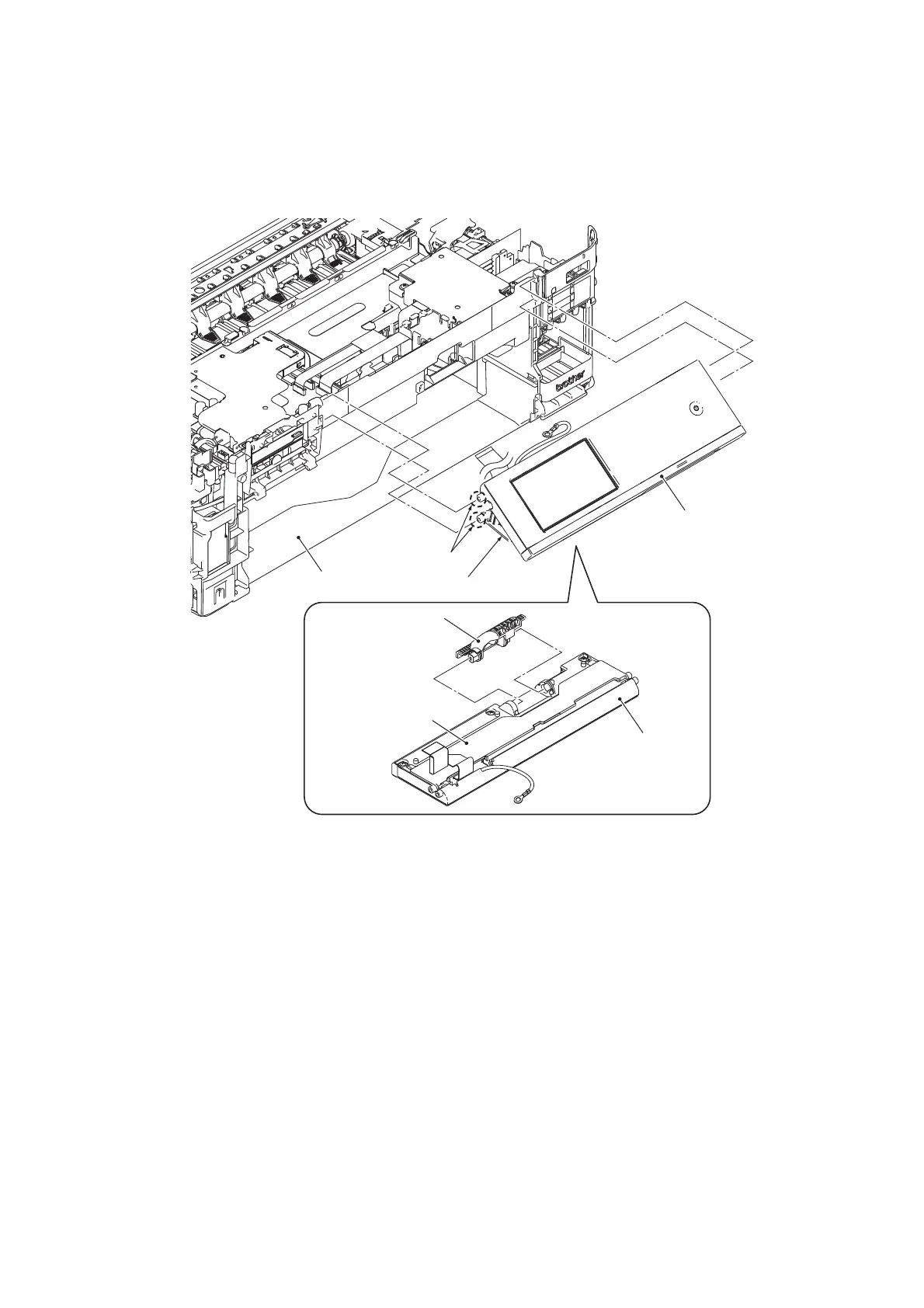

(4) Release the upper left boss on the control panel ASSY and the left-side boss on the FFC
guard cover, then remove the control panel ASSY.
(5) Release the right-side boss on the panel tilt hook from the control panel ASSY to remove
the panel tilt hook.
FFC guard cover
FFC guard cover
(Front)
Lower cover
Bosses
Control panel ASSY
Control panel ASSY
Tilt hook
(3_050_E)
