3-75
Confidential

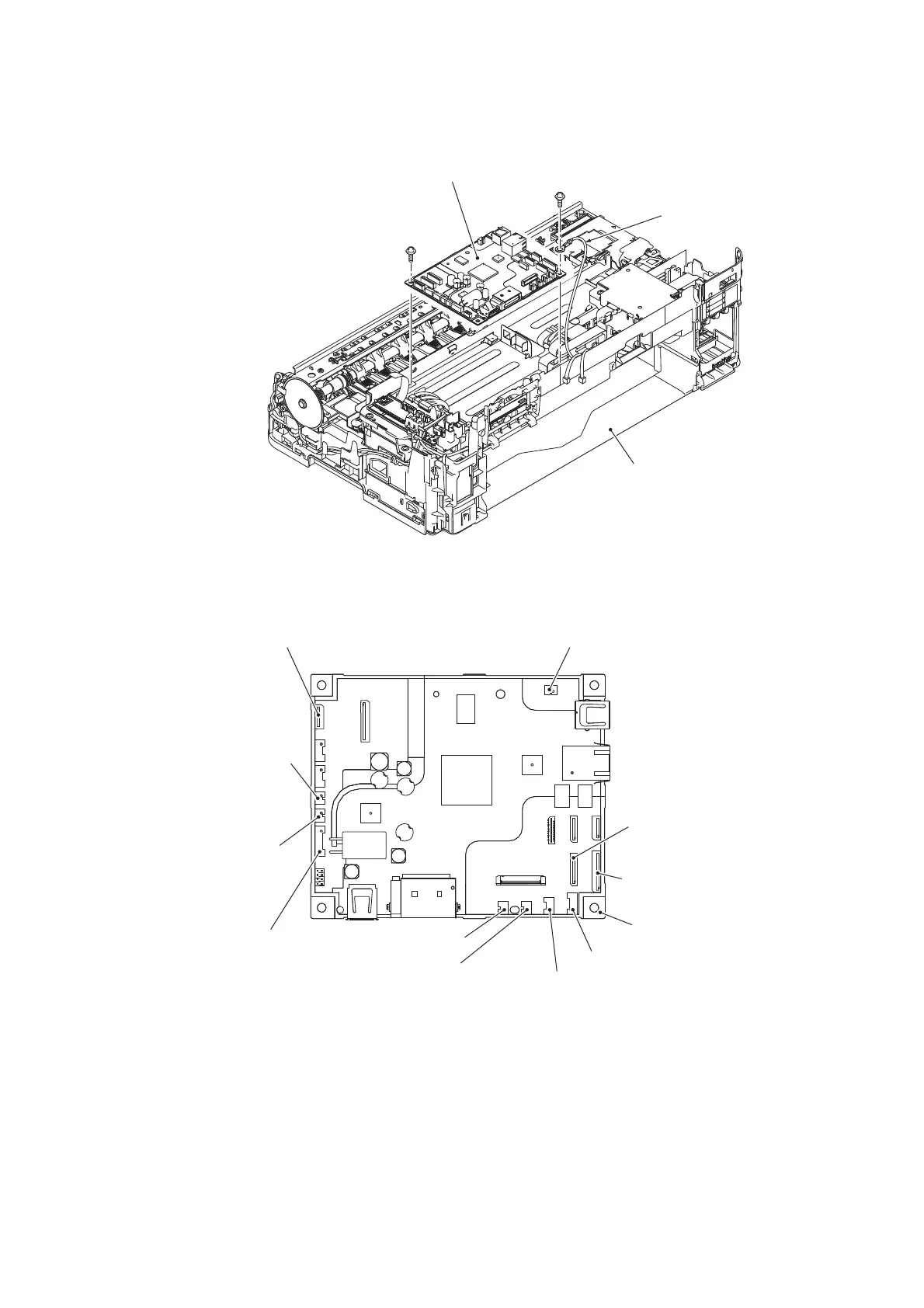

(4) Remove the two screws (TAPTITE CUP S M3x6) and remove the main PCB ASSY.
Assembling Note: When tightening the right front screw on the main PCB, secure the FG wire
together.
TAPTITE CUP S M3x6
TAPTITE CUP S M3x6
(Rear)
(Front)
Lower cover
Main PCB ASSY
FG wire
(3_054_E)
Speaker harness
Power supply
PCB harness
Paper feed motor
harness
Carriage motor
harness
Registration sensor harness
Purge cam sensor harness
MJ PCB flat cable
Ink sensor flat cable
Sensor relay PCB flat cable
Ink absorber full sensor harness
Ink cartridge cover
sensor harness
FG wire
(3_055_E)
