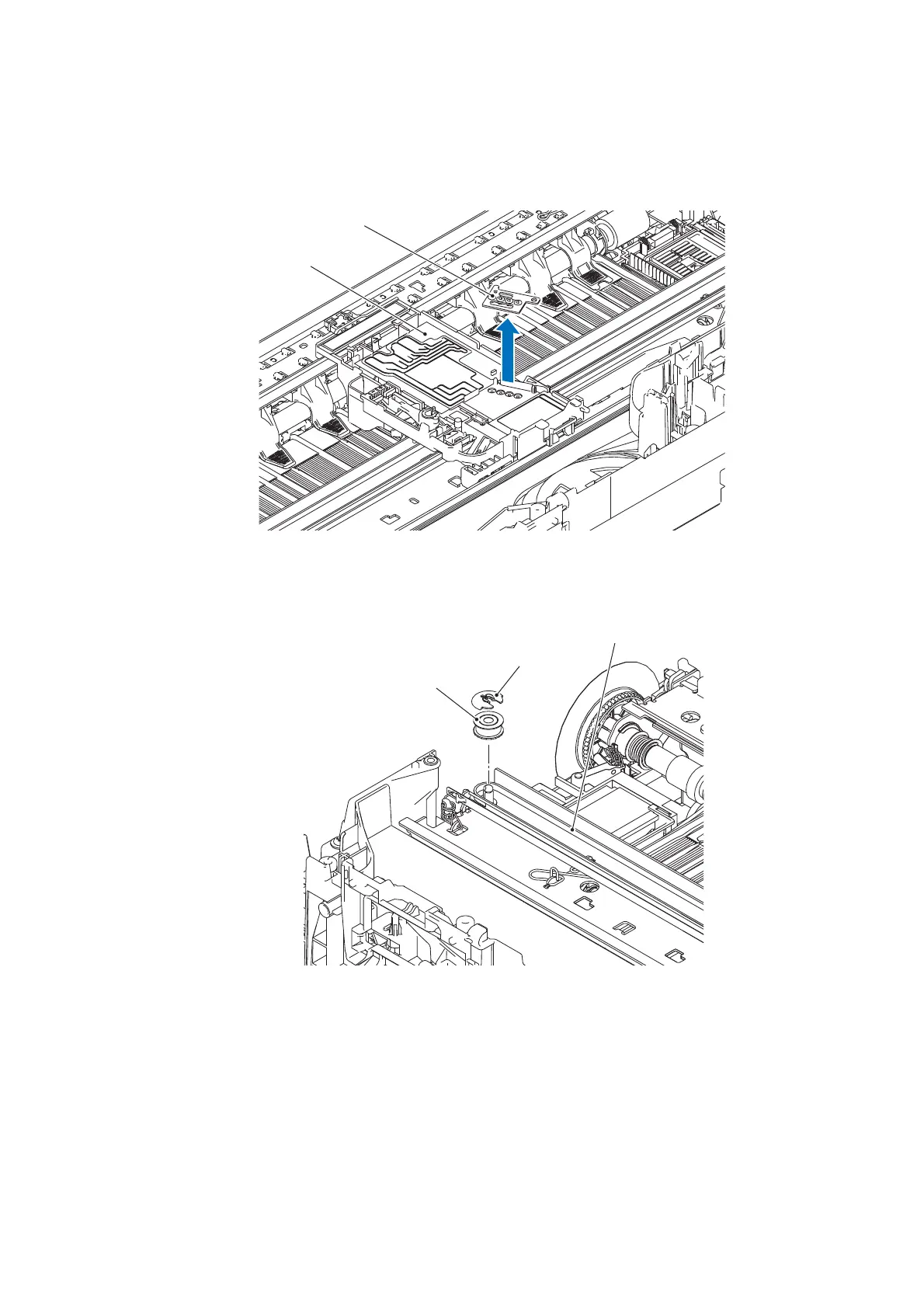

(11) Remove the head joint rubber.
Note: Put the head joint rubber on a clean vinyl sheet and take care not to contaminate it. Do not
touch the inclination adjuster knob.
(12) Remove the resin retaining ring and the idle pulley.
Head/carriage unit
Head joint rubber
(3_065_E)
Plastic retaining ring
CR timing belt
Idle pulley
(3_066_E)
