3-111
Confidential

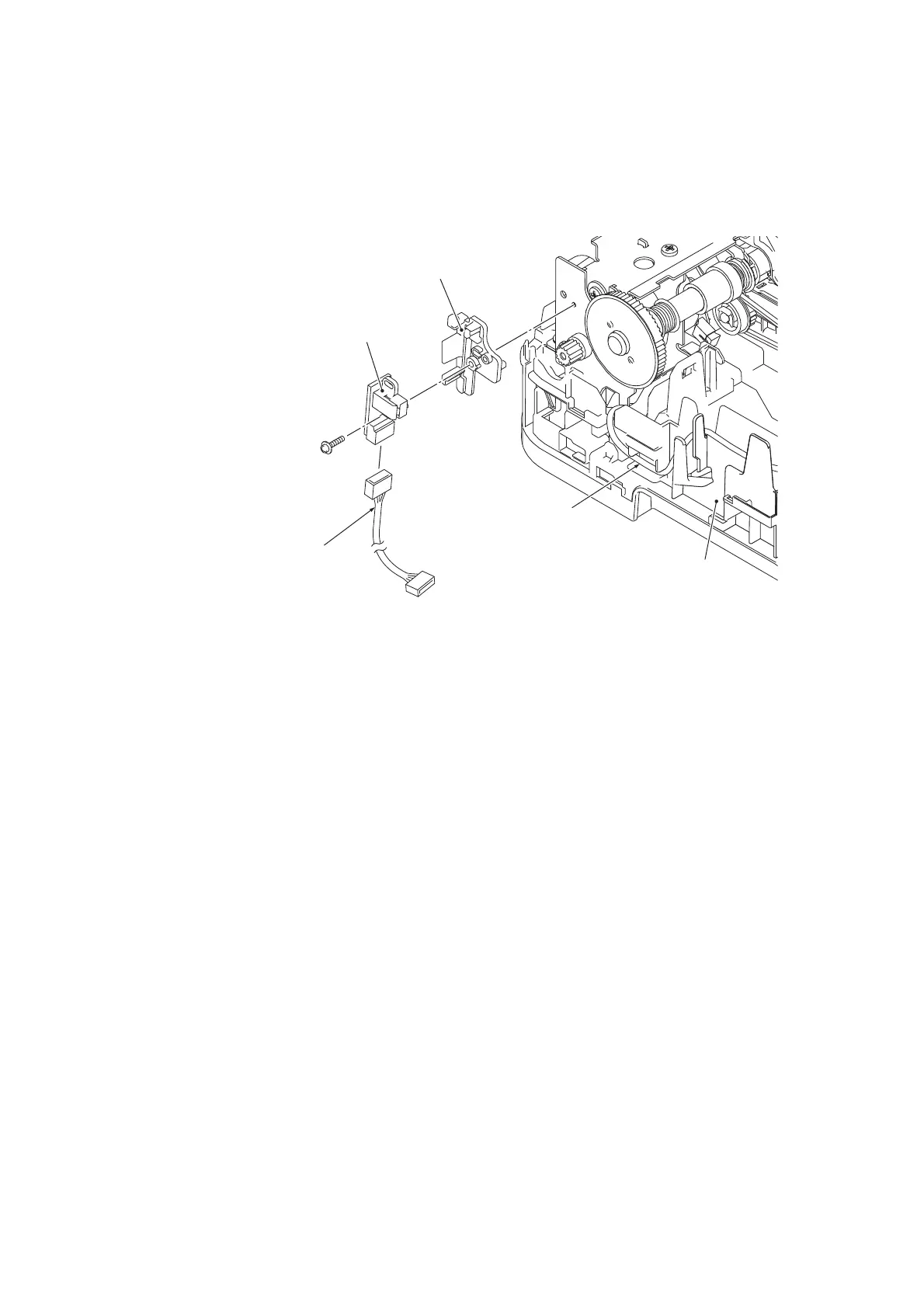

(3) Release the wiring of the PF encoder harness.
(4) Remove the screw (SCREW BIND M2x12) and remove the PF encoder sensor holder and
the PF encoder PCB ASSY.
(5) Disconnect the PF encoder sensor harness.
SCREW BIND M2x12
Lower cover
Paper feed motor
harness
PF encoder PCB ASSY
PF encoder sensor harness
PF encoder sensor holder
(3_097_1_E)
