3-117
Confidential

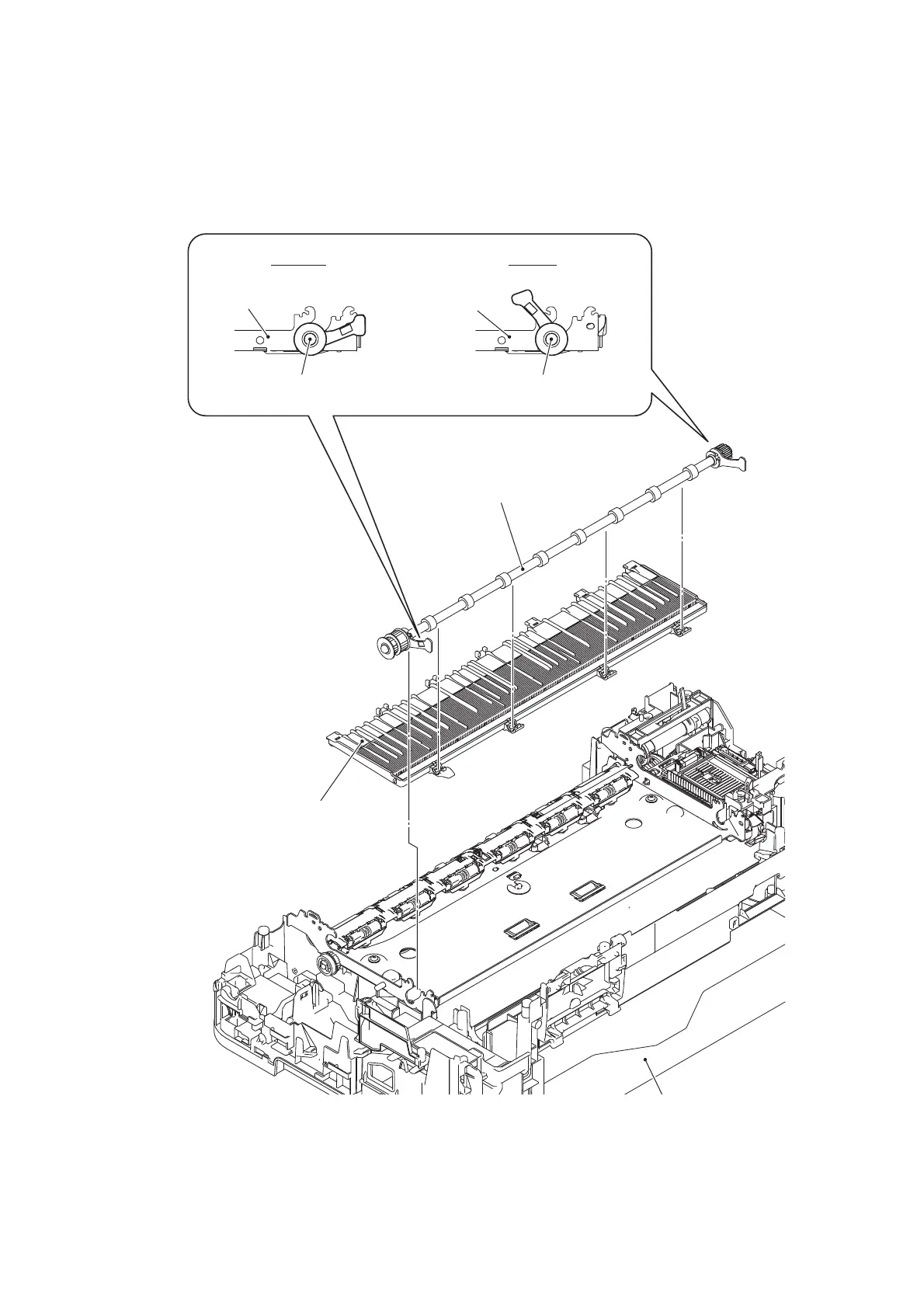

(3) Remove the platen ASSY.
(4) Remove the paper ejection roller from the platen ASSY.
Assembling Note: Mount the paper ejection roller with its bushing lever tilted forward as
shown below.
(Rear)
(Front)
(Rear)
(Front)
(Rear)
(Front)
Lower cover
Platen ASSY
Platen Platen
Paper ejection roller Paper ejection roller
Paper ejection roller
Correct Wrong
(3_104_E)
