Brother MFC-J2310 Service Manual

3-127
Confidential

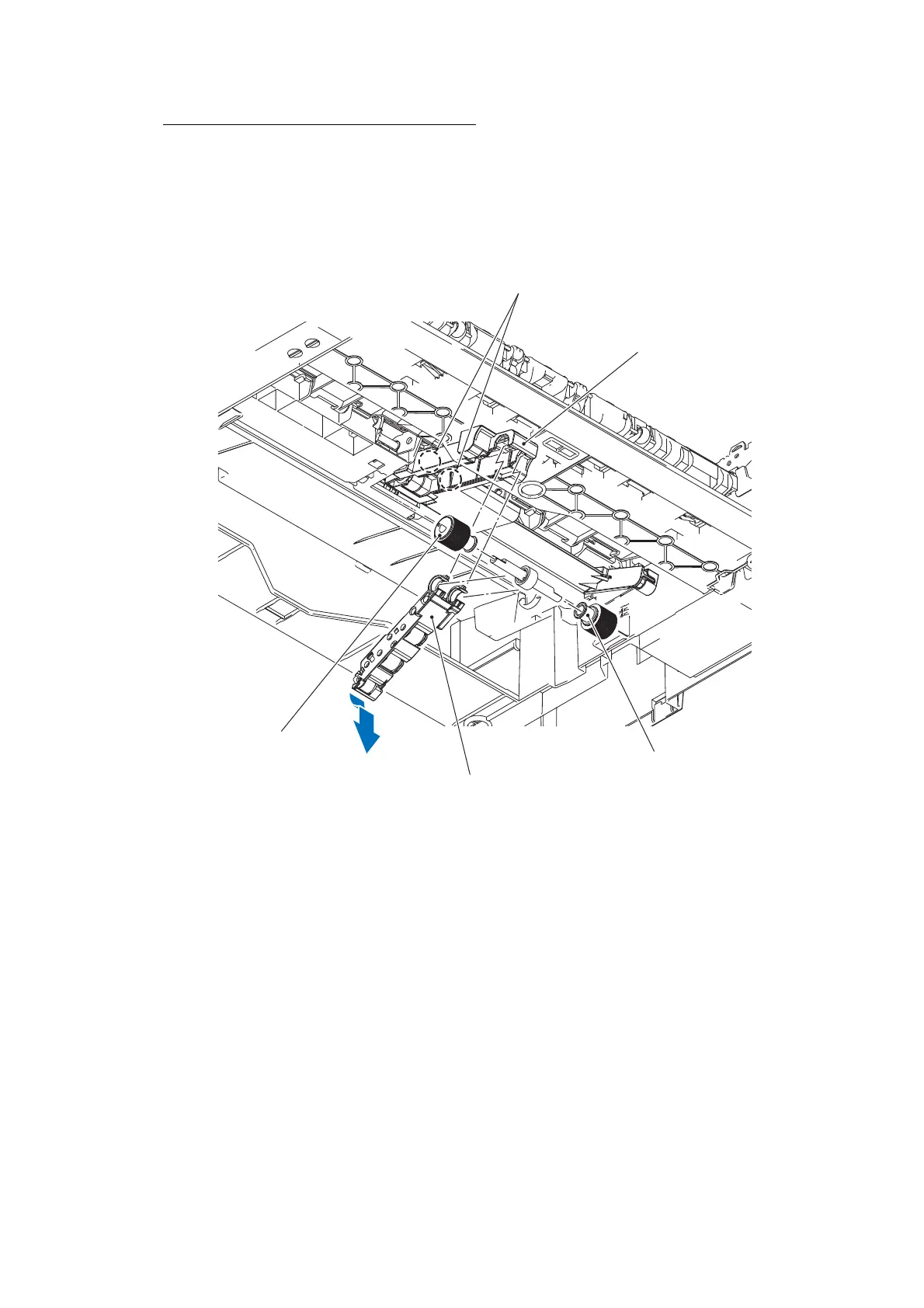

For the paper pull-in roller with gear drive
(1) Release the two hooks of the paper pull-in roller holder and remove the T1 paper pull-in
rollers and their holder from the gear holder ASSY.
(2) Remove the T1 paper pull-in rollers from their holder and separate those rollers to the right
and left.
Hook
Gear holder ASSY
T1 paper pull-in roller
Paper pull-in roller holder
T1 paper pull-in roller
(3_002_S13E)
