3. INSTALLATION
12

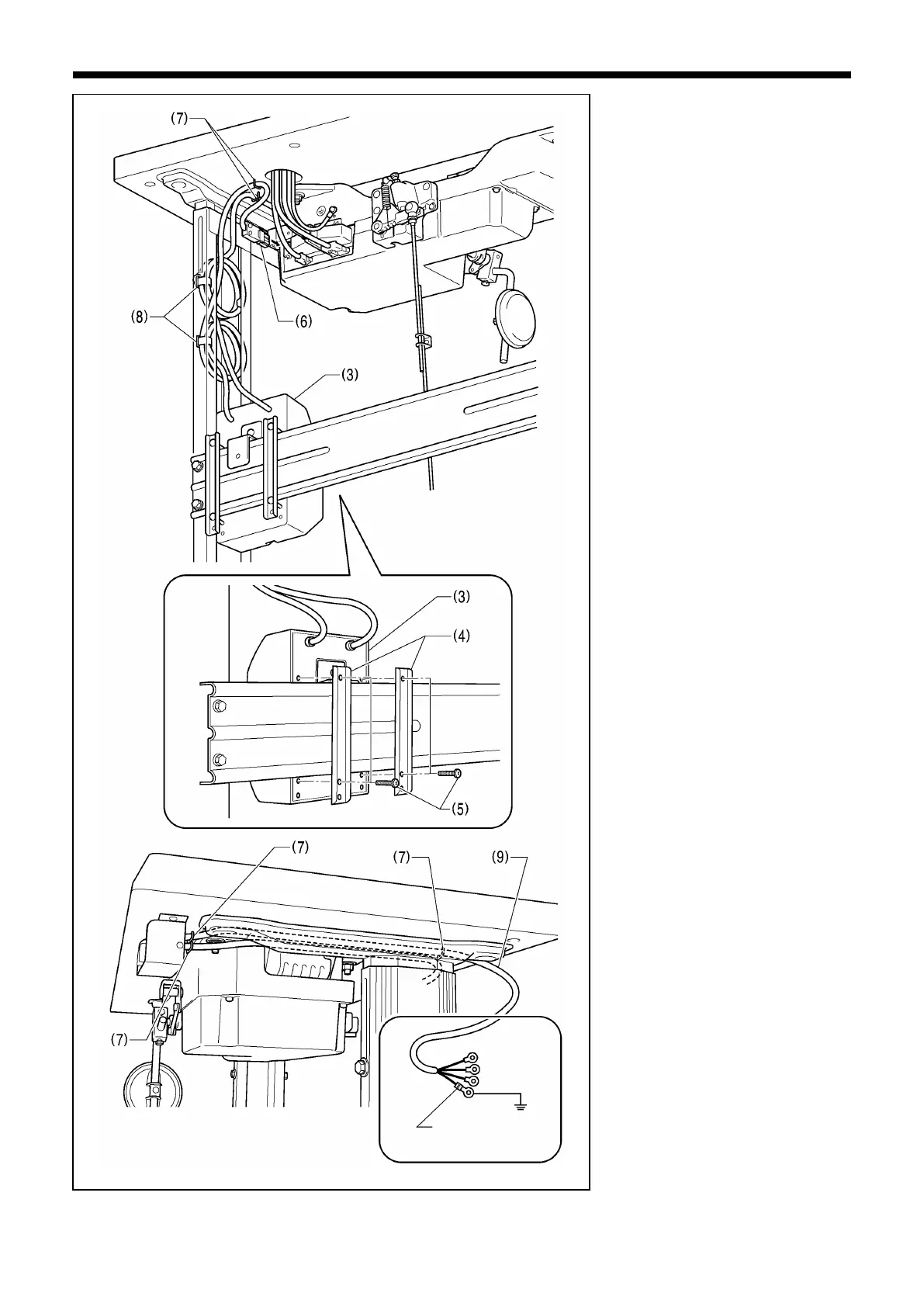

(3) Transformer box
(4) Transformer box plates [2 pcs]
(5) Screw [with washer]
(6) 3-pin power supply connector
(7) Staples [5 pcs]
(8) Cord clamps [2 pcs]
(9) Power cord
1. Attach an appropriate plug to the
power cord (9). (The green and
yellow wire is the ground wire.)
2. Insert the power plug into a
properly-grounded electrical outlet.
NOTE:
・ Take care when tapping in the
staples (7) to make sure that they
do not pierce the cords.
・ Do not use extension cords,
otherwise machine operation
problems may result.
Green and yellow
wire (ground wire)
