Brother S-7300A-403P - Americas 220 V Specification Cord Connections; Power Switch and Connector Setup; Safety Notes for 220 V Wiring

S-7300A
3. INSTALLATION
13

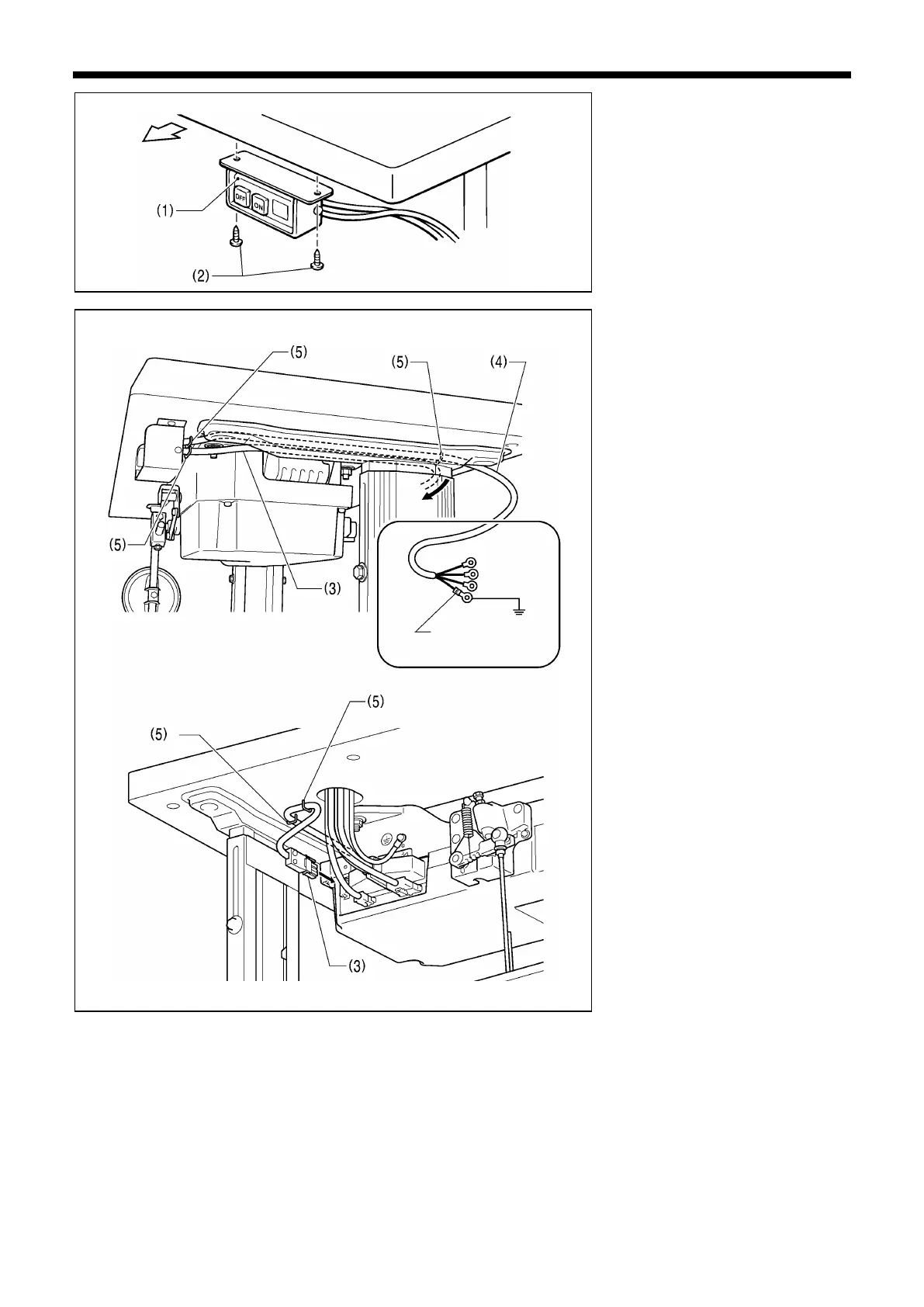

<For Americas 220V specifications>
(1) Power switch
(2) Screws [2 pcs]
(3) 3-pin power supply connector
(4) Power cord
(5) Staples [5 pcs]
1. Attach an appropriate plug to the
power cord (4). (The green and
yellow wire is the ground wire.)
2. Insert the power plug into a
properly-grounded electrical outlet.
NOTE:
・ Take care when tapping in the
staples (5) to make sure that they
do not pierce the cords.
・ Do not use extension cords,
otherwise machine operation
problems may result.
Operator
4145M
0892D
Green and yellow
wire (ground wire)
