Technical Data MS 700‘54 Ascend
9.4 Safety Valves

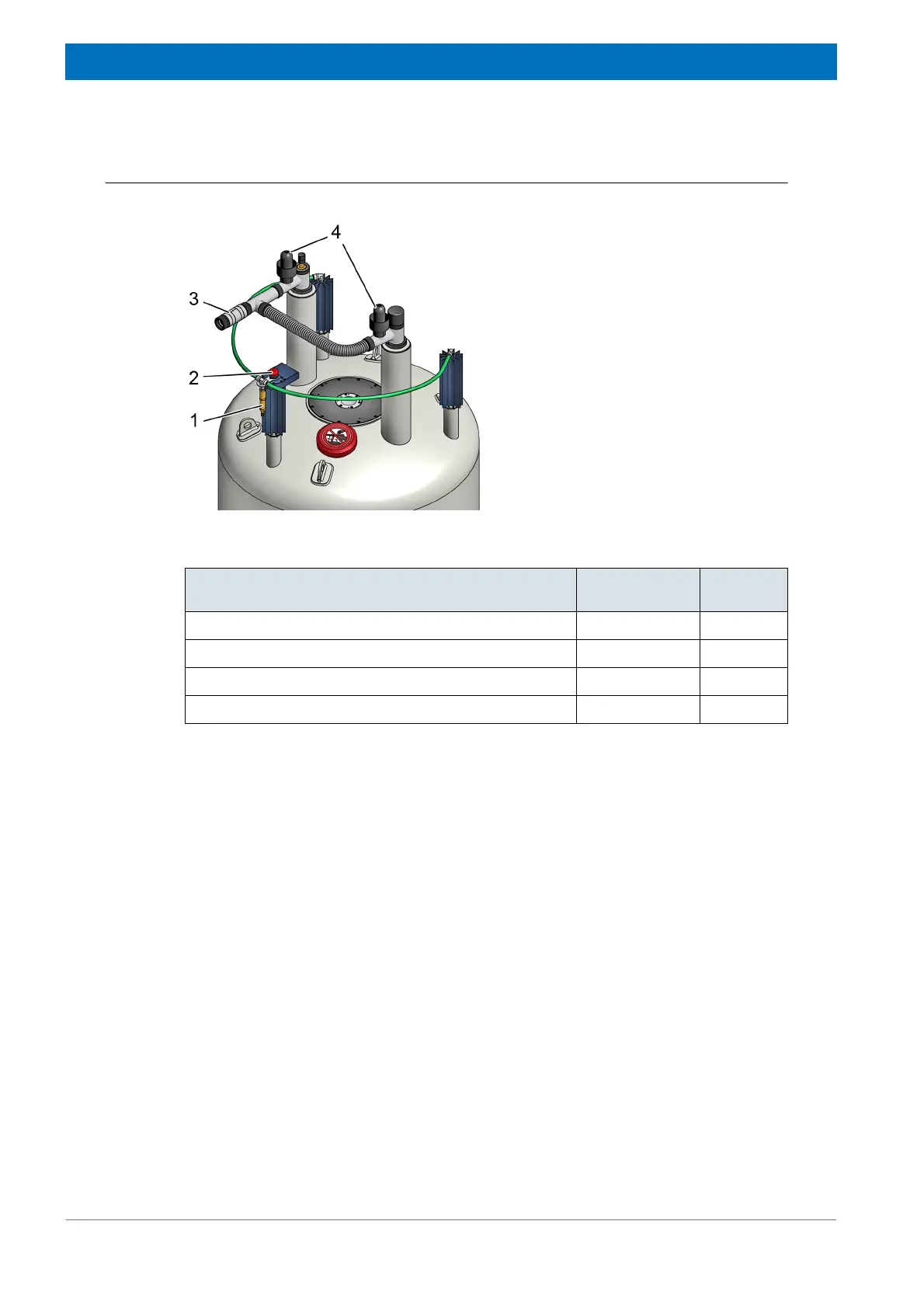

Figure 9.3: Safety valves of the cryostat
1 One-way valve of the nitrogen vessel
2 Safety valve of the nitrogen vessel
3 One-way valve of the helium vessel
4 Quench valve
Opening pressure mbar psi
One-way valve of the nitrogen vessel 10 0.15
Safety valve of the nitrogen vessel 140 2
One-way valve of the helium vessel 15 0.2
Quench valve 180 2.6
Table 9.6: Opening pressure of the safety valves of the magnet system
