Technical Data MS 700‘54 Ascend
9.6 Helium Level Sensor
The Helium Level Sensor is inserted in the helium fill-in turret.
Helium Level Sensor Material No. Value Unit
Level Sensor Type Z58114 1300/690
Overall length 1300 mm
Active length 690 mm
Calibration 0 %, Calibration resistor Z28630
blue
140 Ω
Calibration 100 %, Calibration resistor Z28628
black
15 Ω
Table 9.8: Helium level sensor

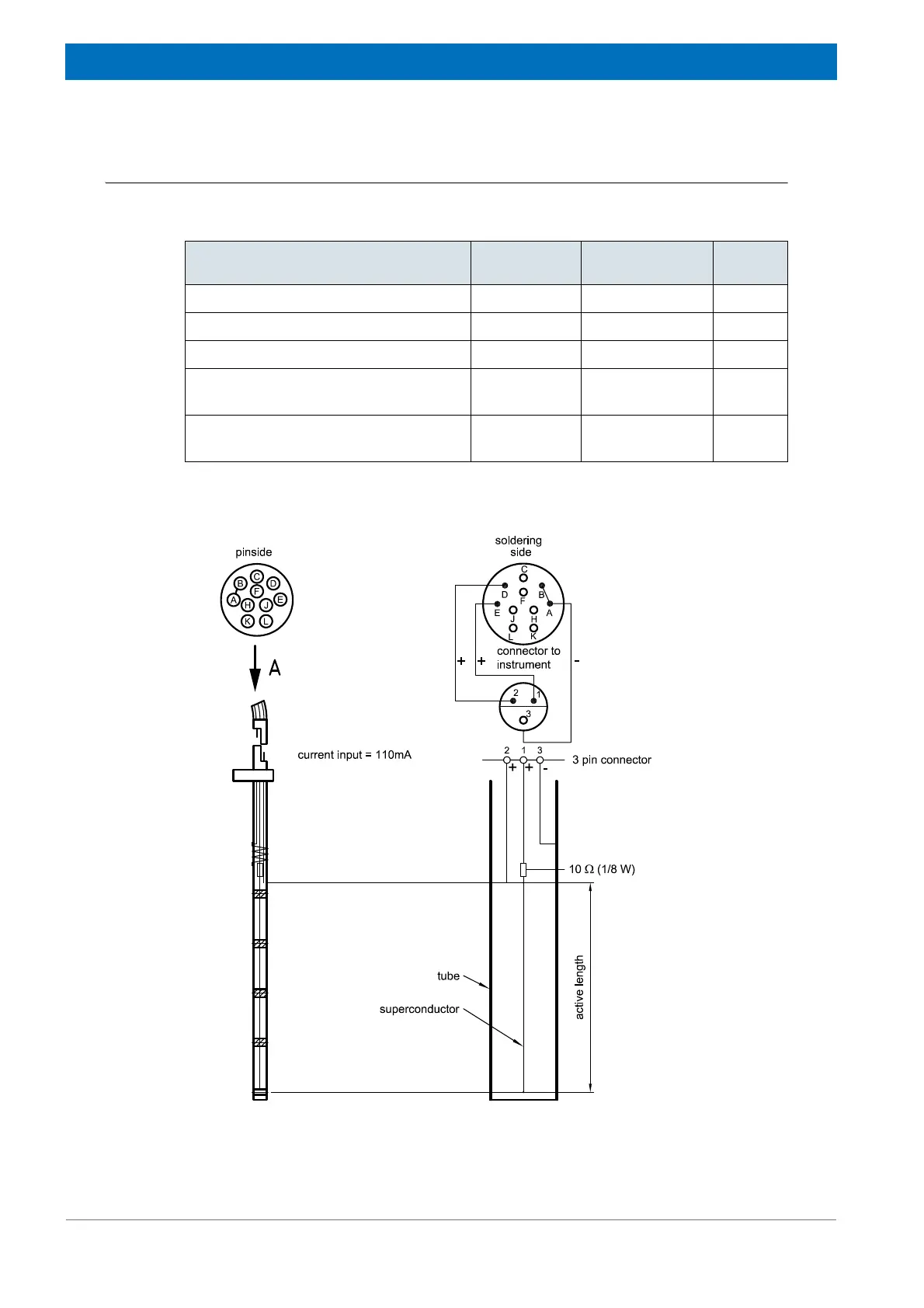

Figure 9.5: Helium level sensor
;
