9.12 Helium Level Graph

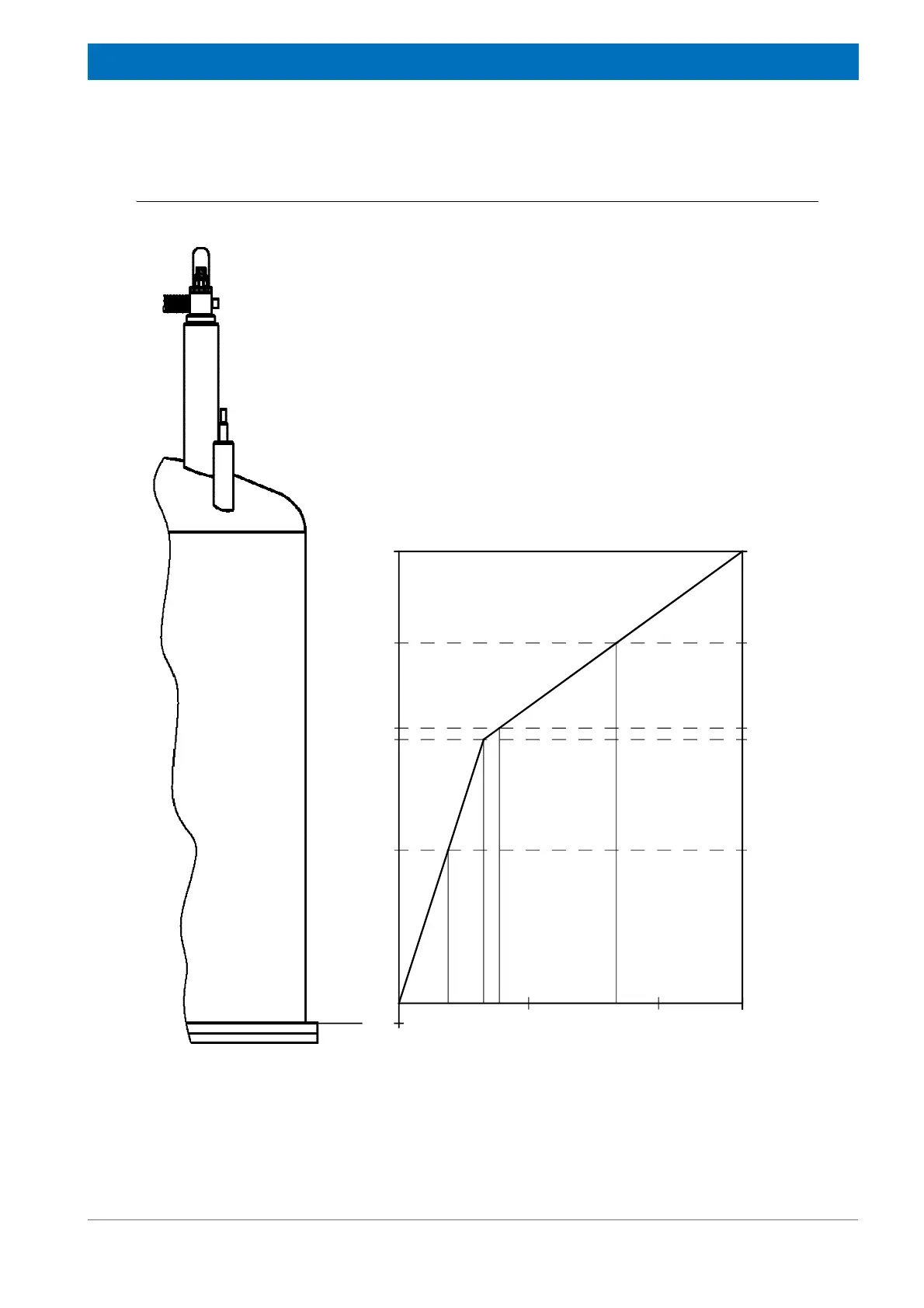

Figure 9.10: Helium level graph
(mm)
(litres)
0
top of helium vessel
1086.0 99.7%
0
46.0
132.350 100
minimum level during energizing
875.0 69.1%
minimum allowed level
679.2 40.8%
top of coil
653.0 37.0%
0% of helium level sensor
398.0 0%
