BST ekr CON 600 net User Manual

6
Commissioning
24/47 ekr CON 600, ekr CON 600 net – Master-Slave Guiding with Sensor Positioner

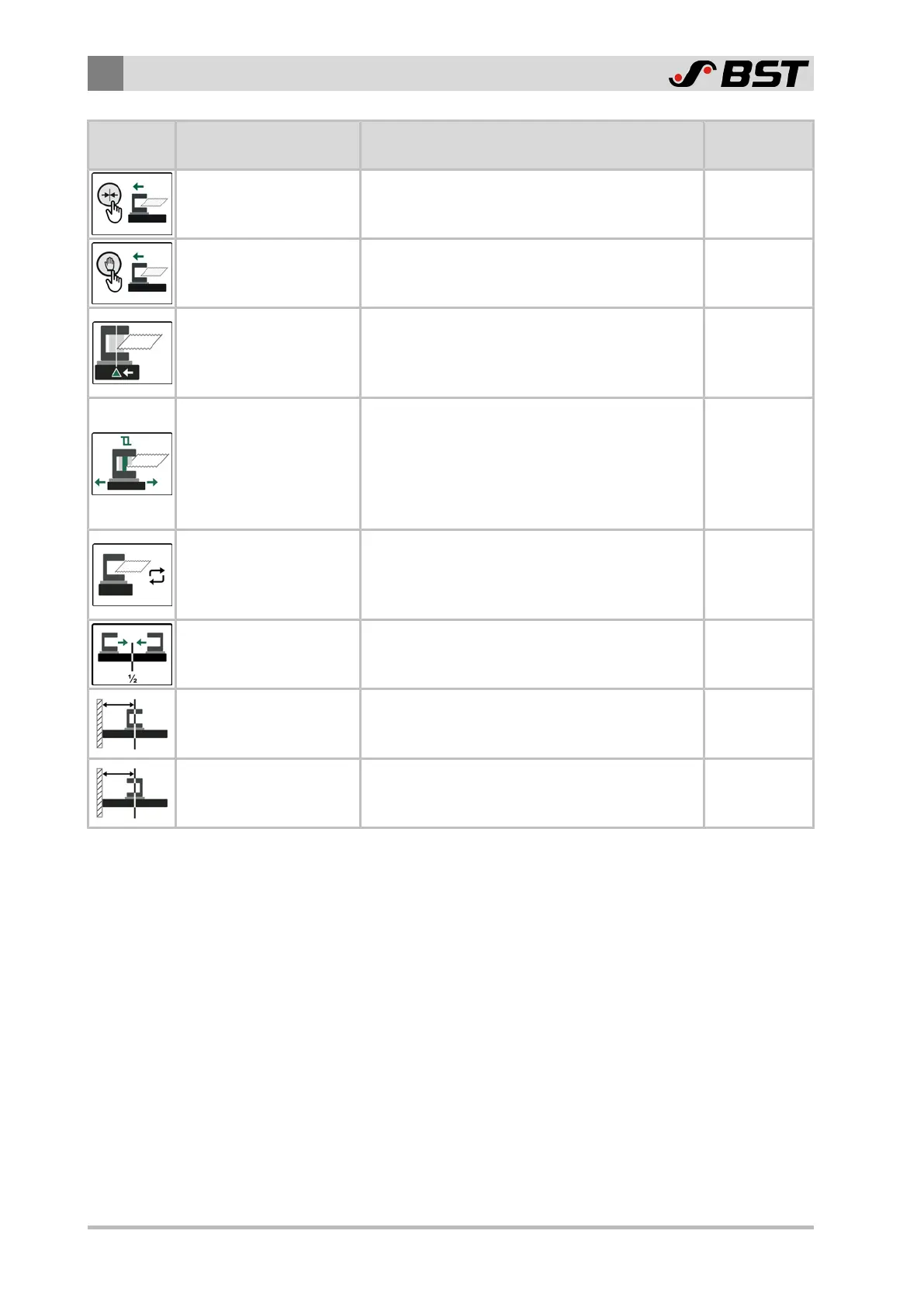

Button Designation Meaning Availability
setting menu
Retract mode
“Center positioning”
Upon switching to the Center positioning
operating mode, the sensor positioner sensor
slides run to their park position (Home Position).
SLAVE
Retract mode
“Manual mode”
Upon switching to the Manual mode operating
mode, the sensor slides of the sensor positioner
run to their park position (Home Position).
SLAVE
Automatic
setpoint acceptance
Upon switching to the Automatic operating mode,
the sensor positioner automatically carries out
edge detection. The position of the web edge
detected is taken over as the setpoint for guiding.
SLAVE
Hysteresis for automatic
sensor tracking
For applications with, e.g. "flattering" web edges,
a hysteresis can be specified for the automatic
sensor tracking. The sensor slides of the sensor
positioner only follow the web of material after
the web edge has left the specified hysteresis
area in the sensor measuring range.
SLAVE
Automatic edge sensor
standardization
With each edge detection, an automatic bright
and dark value standardization is carried out
(only for optical edge sensors IR2011 and
IR2012).
SLAVE
Reference run
of the sensor slides
Approaching the reference position: The sensor
slides (one or both) are run to the middle of the
respective traversing range.
SLAVE
&
MASTER*
Position offset for the
left sensor slide
Input of the distance of the left sensor slide to
the reference point.
SLAVE
&
MASTER*
Position offset for the
right sensor slide
Input of the distance of the right sensor slide to
the reference point.
SLAVE
&
MASTER*
* Display function only
