Design and Function
3
ekr CON 600, ekr CON 600 net – Master-Slave Guiding with Sensor Positioner 9/47
3 Design and Function
3.1 Functional Principle
The Master-Slave Guiding with Sensor Positioner is used when
two webs of material have to be guided together precisely to the
web edge or web center-line (laminating control). In doing so, the
positions of the unguided MASTER web (guide web) and the
guided SLAVE web (following web) are detected by edge sensors
that are positioned by motor-powered sensor positioners.
(guided)
SLAVE web
Sensor 1
Guiding device
Sensor 2
Sensor positioner
SLAVE web
Sensor 3
Sensor 4
MASTER web
(unguided)
Sensor positioner
MASTER web
Distance
web edges

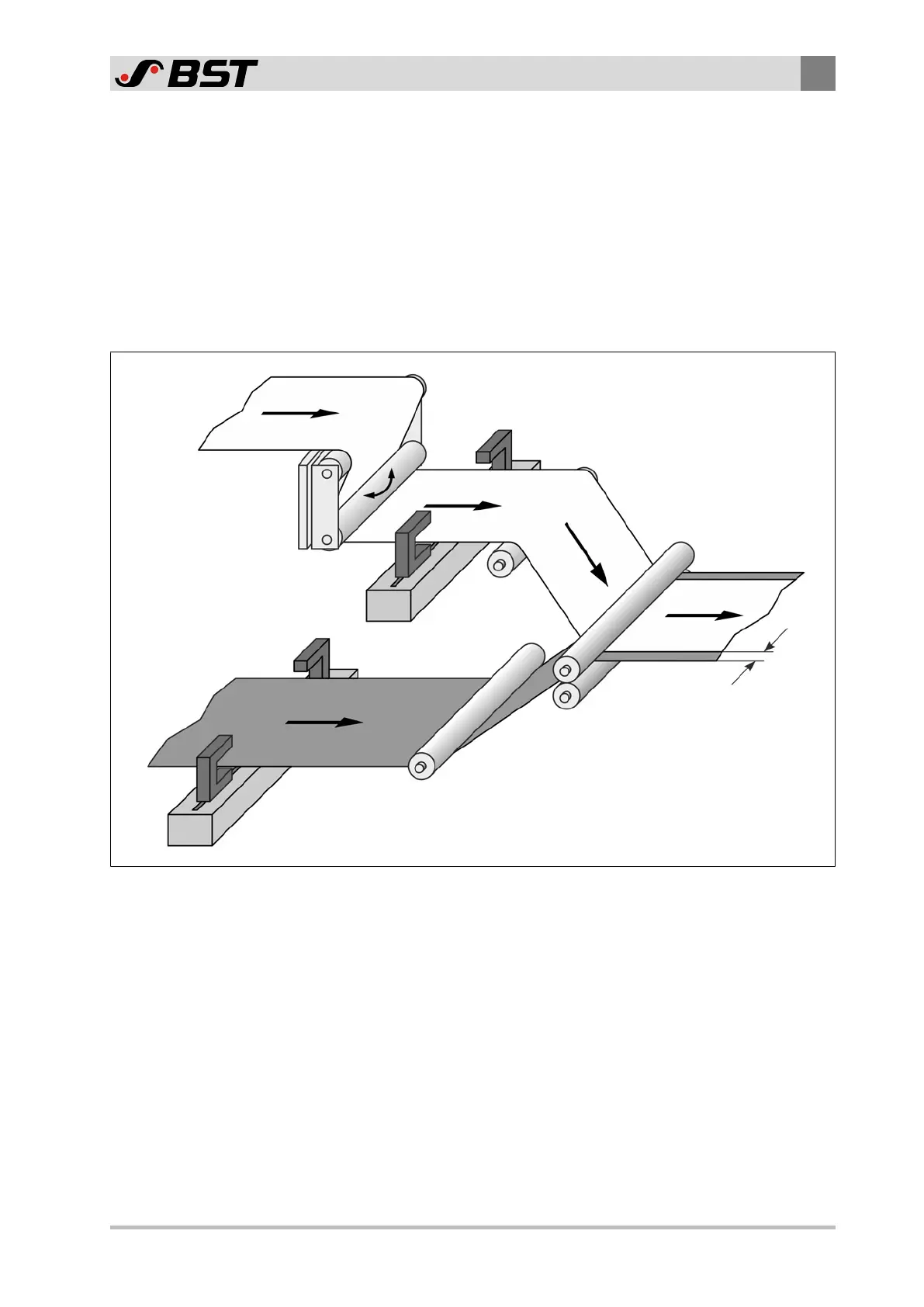

Fig.1: Master-slave guiding for guiding together two webs of material precisely to the web edge or web center-line
