ekr CON 600, ekr CON 600 net – Master-Slave Guiding with Sensor Positioner 21/47
6.3 Enabling Master-Slave Guiding
The Master-Slave Guiding is enabled using the DIL switch S6.6 on
the processor board of the ekr CON 600, ekr CON 600 net controller.

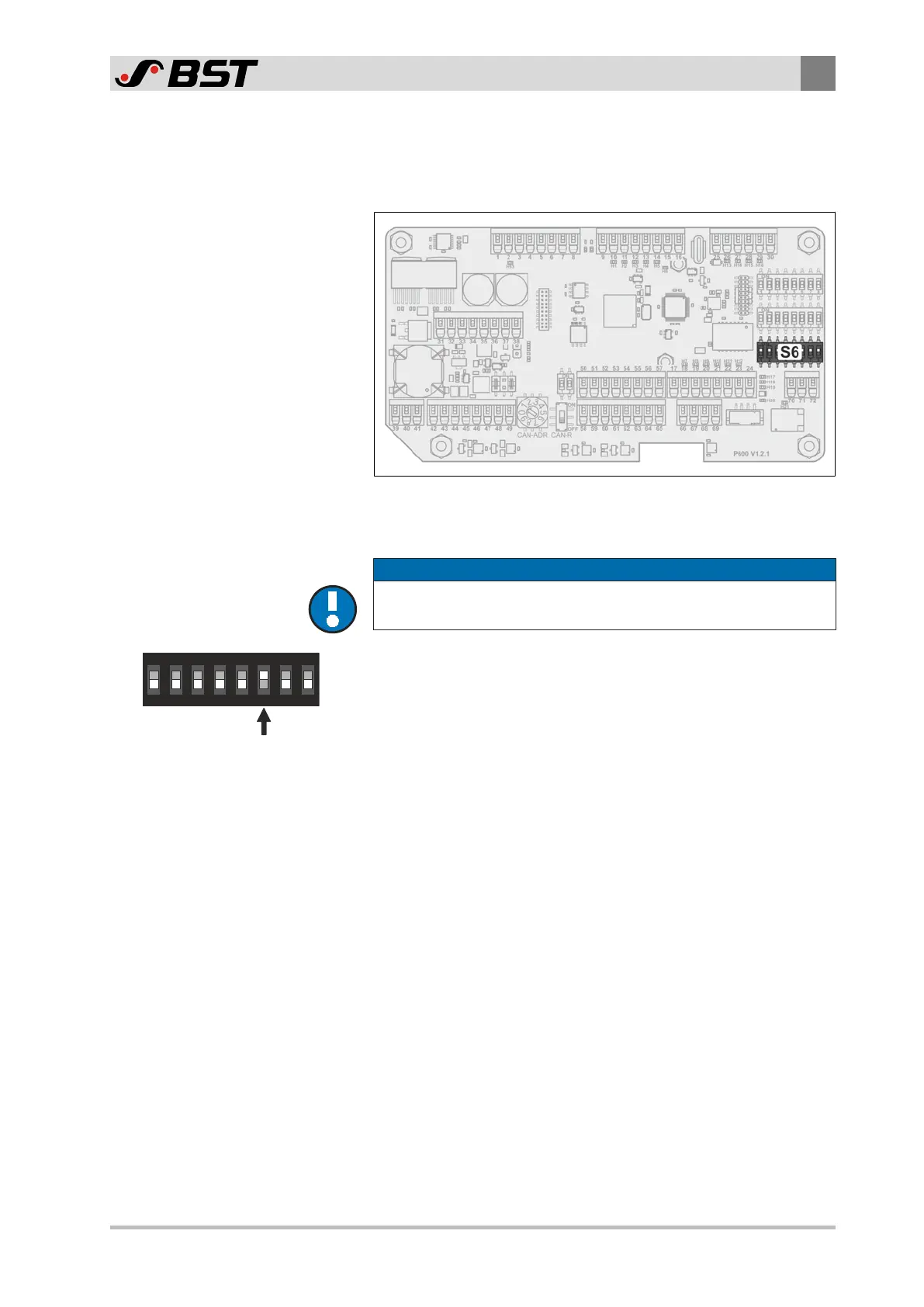

Fig.10: DIL switch S6 on the processor board of the controller
Enabling Master-Slave Guiding
NOTICE
Damage to the components from working on live parts.
►
Before opening the controller, switch off the power supply.
1 2 3 4 5 6 7 81 2
ON
S6.6 = ON
►
Set DIL switch S6.6 on the processor board of the controller to
position ON.
The procedure for setting the DIL switch is described in the
installation and commissioning manual of the ekr CON 600, ekr
CON 600 net controller (document number MD.541).
6.4 Performing the Material Setup
In order to achieve optimal guiding results, you have to carry out a
material setup for each of the sensors connected (Sensor 1 to
Sensor 4) during the initial commissioning of the Master-Slave
Guiding (see Performing the Material Setup, page 35).
During the material setup the controller is automatically adjusted
to the properties of the material to be scanned.
