BST ekr CON 600 net User Manual

Design and Function
3
ekr CON 600, ekr CON 600 net – Master-Slave Guiding with Sensor Positioner 11/47

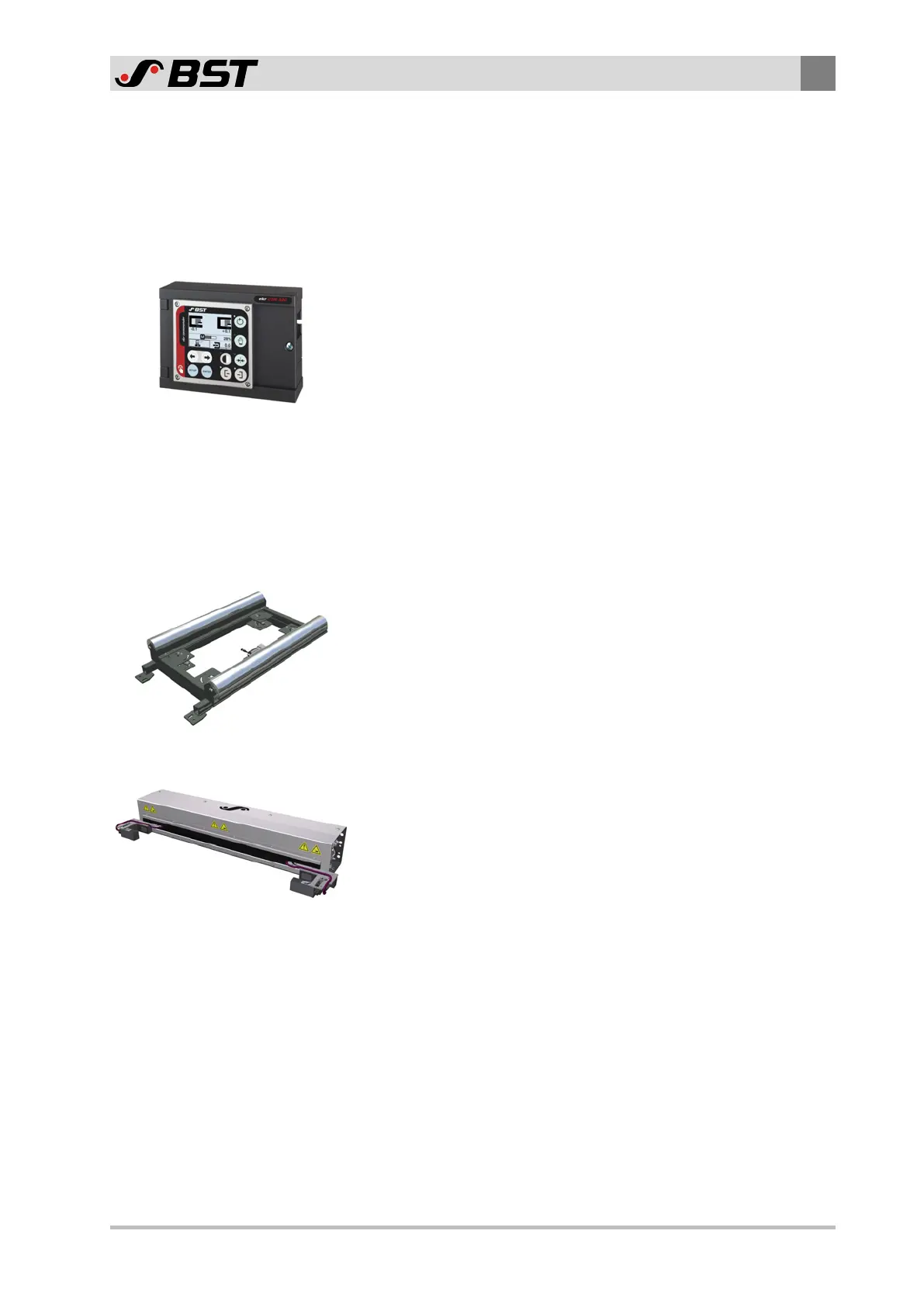

3.3 Web Guiding Components Used
The web guiding system for the Master-Slave Guiding with Sensor
Positioner consists of the components described in the following
chapters.
3.3.1 Web Guiding Controller
The ekr CON 600, ekr CON 600 net web guiding controller is used
to control and operate the Master-Slave Guiding.
Requirements
The following requirements must be fulfilled for using the Master-
Slave Guiding with Sensor Positioner with the ekr CON 600, ekr
CON 600 net web guiding controller:
■ Firmware version of the controller ≥ 3.1.1
■ Firmware version of the ekrcommander control panel ≥ 1.6.2
■ DIL switch S6.6 = ON (Master-Slave Guiding enabled, see
Enabling Master-Slave Guiding, page 21)
3.3.2 Guiding Device
The guiding device (e.g. rotating frame guide) is used to correct
the position of the SLAVE web across the web running direction.
If the unguided MASTER web moves laterally to the web running
direction during the laminating process, the guiding device tracks
the SLAVE web by an appropriate turning movement.
3.3.3 Sensor Positioners
The FVGPOS100 sensor positioners are used for the motor-driven
positioning of the edge sensors at the MASTER and the SLAVE
web. The design and number of the sensor positioners used de-
pends on the desired guiding mode.
Requirement
The following requirement must be fulfilled for using the
FVGPOS100 sensor positioner for Master-Slave guiding:
■ Firmware version of the sensor positioner ≥ 1.7.2
