BST ekr CON 600 net User Manual

A
Wiring Diagrams Master-Slave Guiding
44/47 ekr CON 600, ekr CON 600 net – Master-Slave Guiding with Sensor Positioner
A2 Web Edge/Web Center-Line Guiding
A2.1 Application with ekr CON 600 Controller
Extension cable
2 m (131 993)
5 m (131 994)
10 m (131 995)
Connecting cable
3 m (118 447)
5 m (118 448)
10 m (118 449)
Control panel
ekr commander
Controller
ekr CON 600
Connector assignment
with four edge sensors
ekr commander: X101
Sensor 1: X102
Sensor 2: X103
Sensor 3: X100
Sensor 4: X104
Sensor 4Sensor 3
MASTER web
(unguided)
Sensor 1 Sensor 2
SLAVE web
(guided)
Actuator
Guiding
device
Sensor positioner

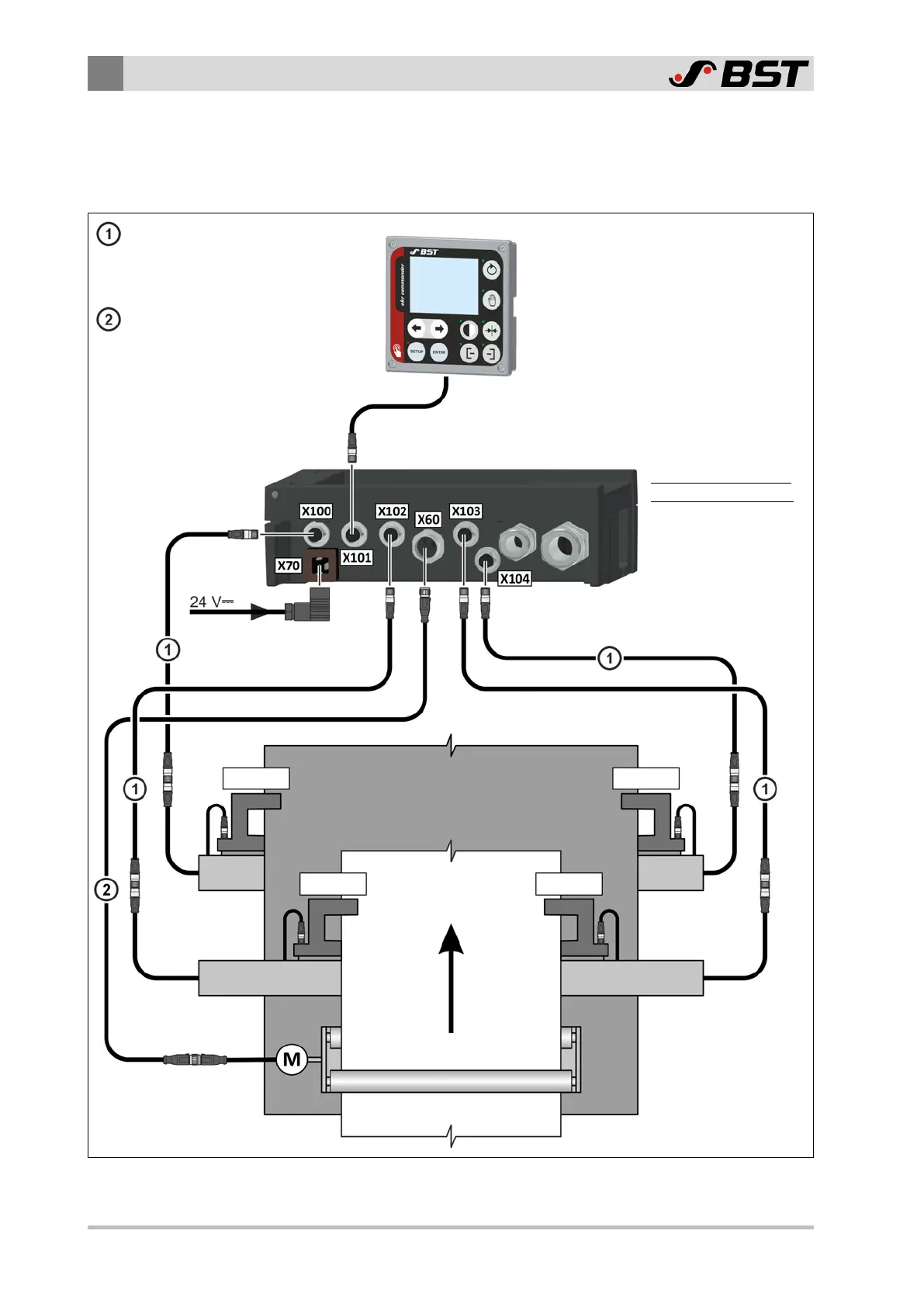

Fig.20: Wiring diagram for master-slave guiding with four edge sensors (web edge/web center-line guiding)
