BST ekr CON 600 net - Application with ekr CON 600 net Controller

Wiring Diagrams Master-Slave Guiding
A
ekr CON 600, ekr CON 600 net – Master-Slave Guiding with Sensor Positioner 43/47
A1.2.2 Application with ekr CON 600 net Controller
Extension cable
2 m (131 993)
5 m (131 994)
10 m (131 995)
Connecting cable
3 m (118 447)
5 m (118 448)
10 m (118 449)
Cable tail
0,37 m (243 956)
Controller
ekr CON 600 net
Control panel
ekr commander
Connector assignment
with two edge sensors
ekr commander: X100
Sensor 2: X103
Sensor 4: X104
MASTER web
(unguided)
SLAVE web
(guided)
Sensor 4
Sensor 2
Sensor positioner
Guiding
device
Actuator

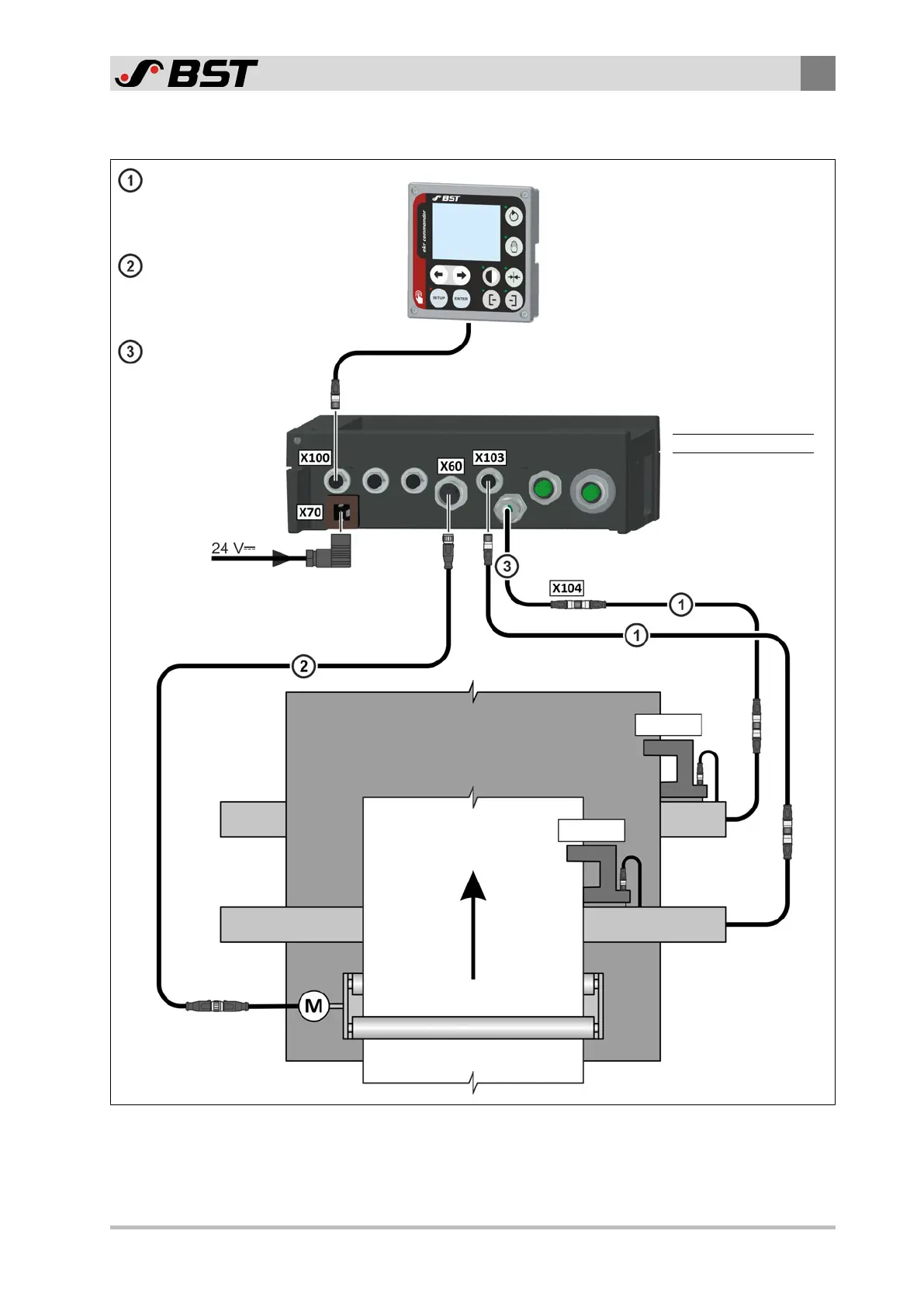

Fig.19: Wiring diagram for master-slave guiding with two edge sensors (guiding to the right web edge)
