Electrical Connection
16/47 ekr CON 600, ekr CON 600 net – Master-Slave Guiding with Sensor Positioner
5.3.1.2 Guiding to the Right Web Edge
Application with
ekrCON600 controller

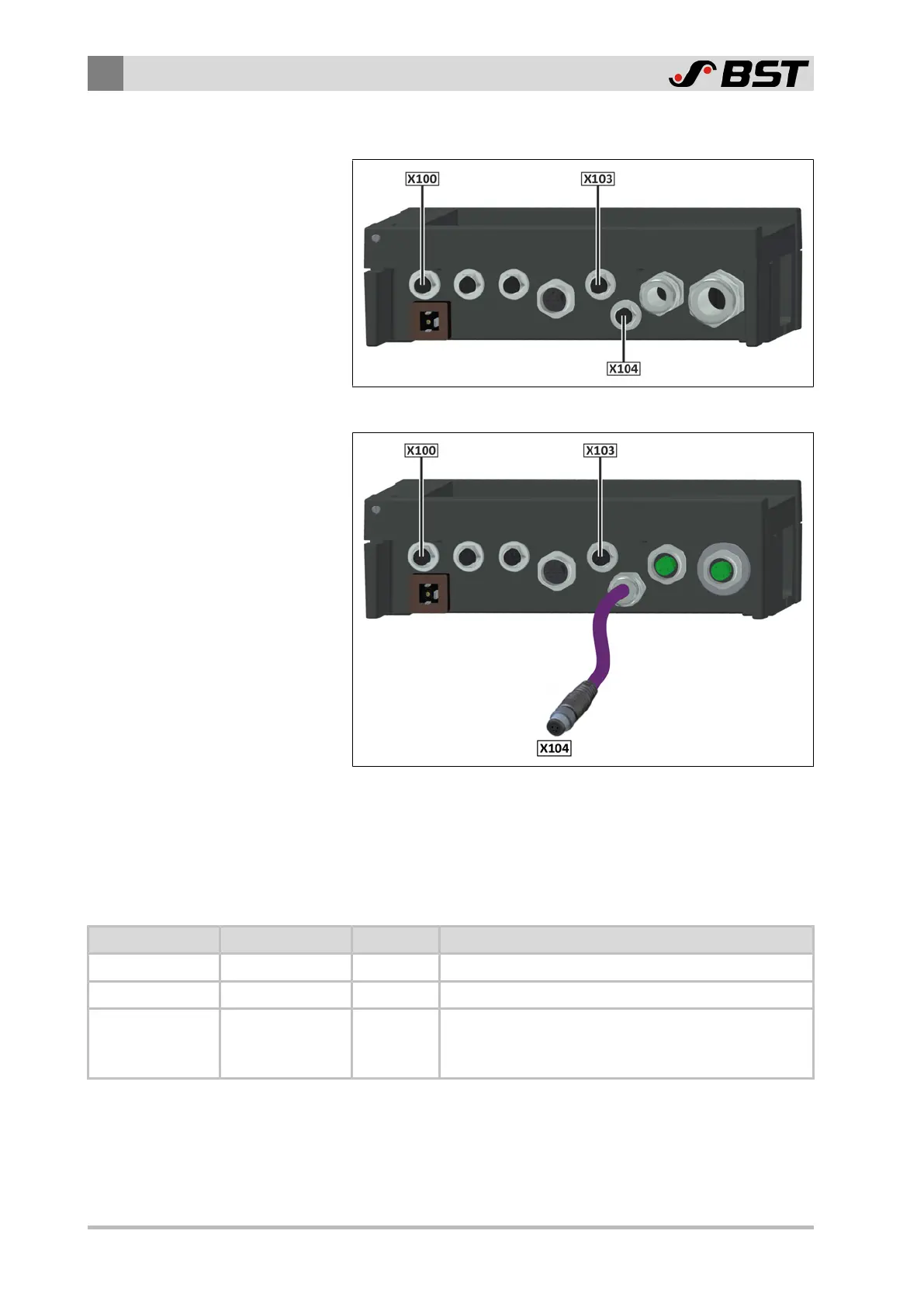

Fig.4: Connector assignment on the ekr CON 600 controller
Application with
ekr CON 600 net controller
Fig.5: Connector assignment on the ekr CON 600 net controller
With this Master-Slave Guiding version the ekrCON600net con-
troller is factory equipped with an additional cable tail. The edge
sensor 4 is connected to connector socket X104 of the cable tail.
Connector Assignment
Component Web of Material Connector Remark
ekrcommander X100
Sensor2 SLAVE web X103
Sensor4 MASTER web X104
Leads to terminal strip X12 in the controller (see
Terminal Assignment of Terminal Strip X12
(Connection Sensor 4), page 18).
