BST ekr CON 600 net User Manual

Wiring Diagrams Master-Slave Guiding
A
ekr CON 600, ekr CON 600 net – Master-Slave Guiding with Sensor Positioner 41/47
A Wiring Diagrams Master-Slave Guiding
A1 Web Edge Guiding
A1.1 Guiding to the Left Web Edge
Extension cable
2 m (131 993)
5 m (131 994)
10 m (131 995)
Connecting cable
3 m (118 447)
5 m (118 448)
10 m (118 449)
Control panel
ekr commander
Controller
ekr CON 600, ekr CON 600 net
Connector assignment
with two edge sensors
ekr commander: X101
Sensor 1: X102
Sensor 3: X100
Sensor 3
MASTER web
(unguided)
SLAVE web
(guided)
Sensor 1
Sensor positioner
Actuator
Guiding
device

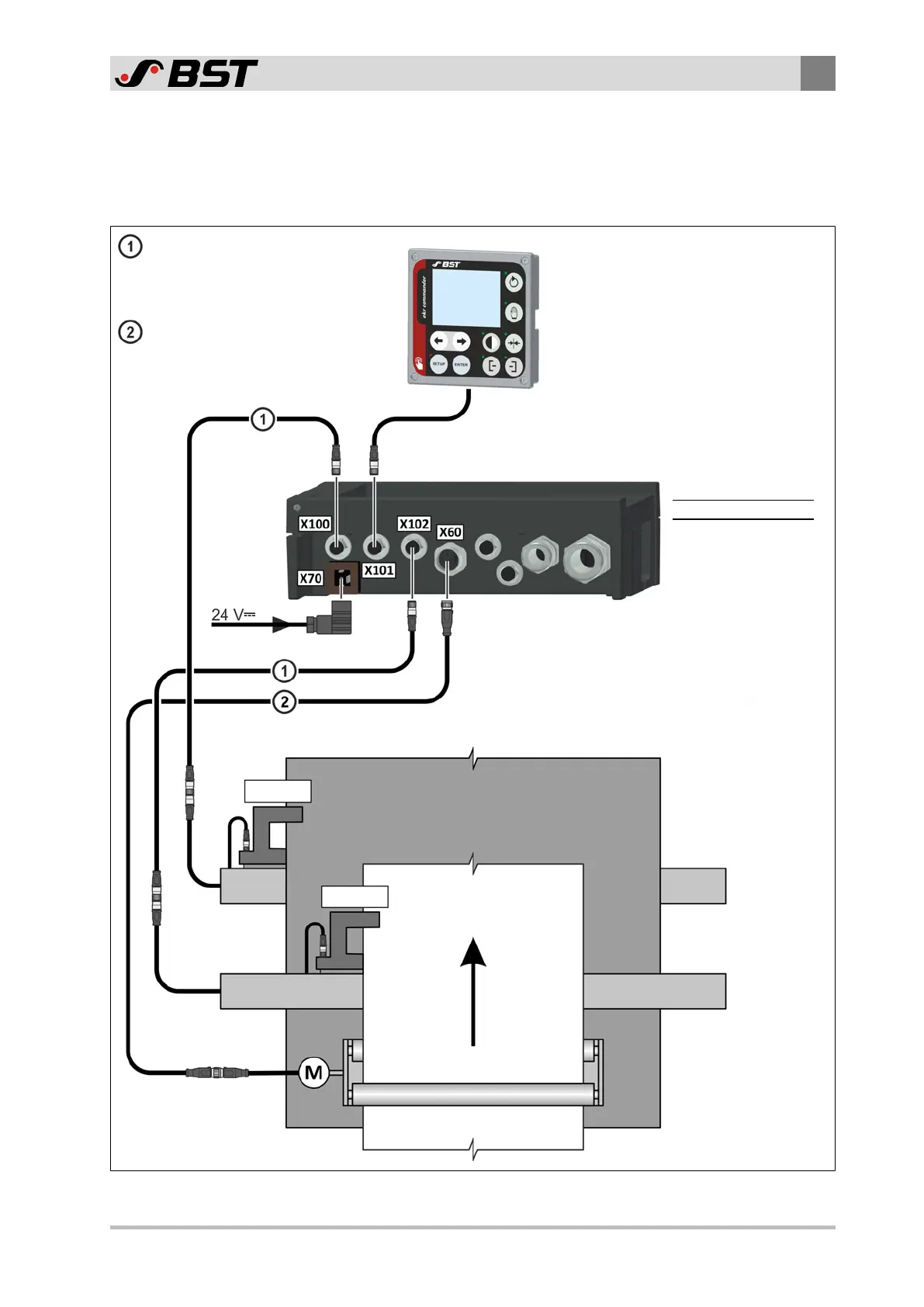

Fig.17: Wiring diagram for master-slave guiding with two edge sensors (guiding to the left web edge)
