SMART MATRIX FEEDER Operation
SMART MATRIX FEEDER 2-4

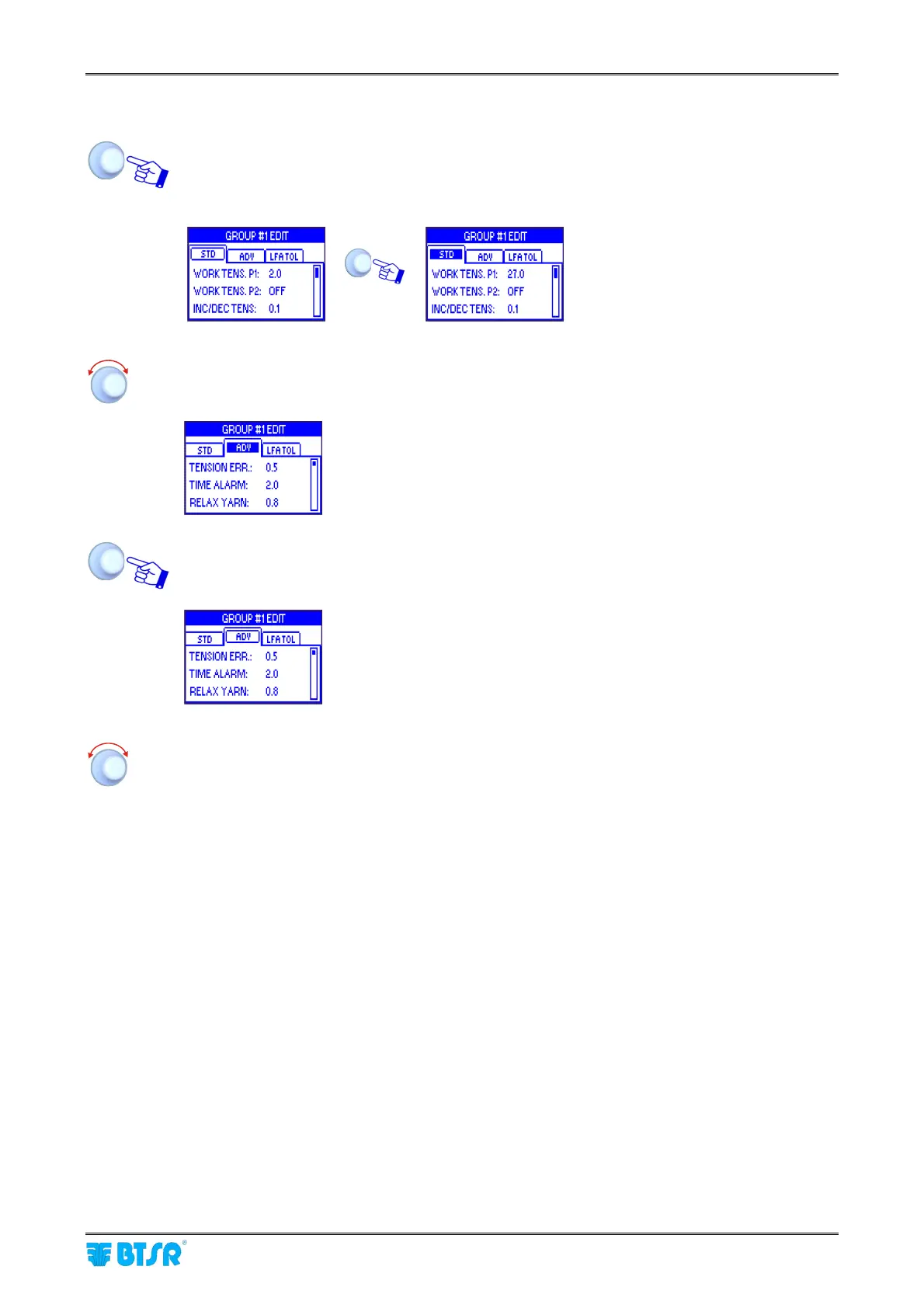

2 – Windows Swap
Turn the selector to “Point” the label of the current window (STD) and click to select it.
Example:
Î
STD window
highlighted.
Turn the selector to “Point” the remaining window (ADV).).
ADV window
highlighted.
Click to select the ADV window and enable the access to its parameters.
The ADV window is
now the current one
Select the desired parameter as explained on previous paragraph:
1 – Navigation throughout the Display Windows (STD)
