SM-DIN ↔ SMART MATRIX ↔ TS7 Connection
SMART MATRIX QUILT 1 - 3
SM-DIN ↔ SMART MATRIX ↔ TS7 Connection

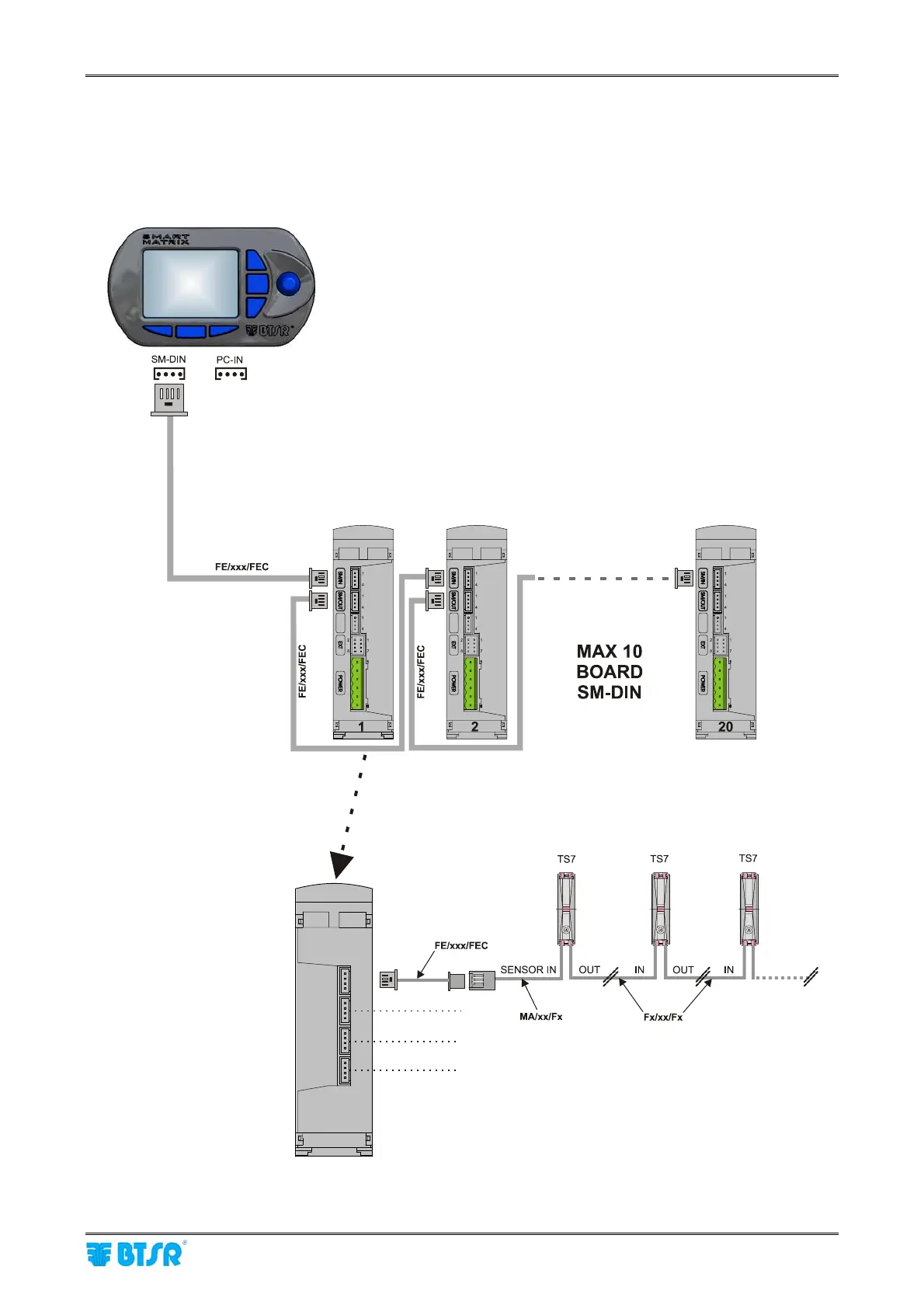

The following diagram shows the connection of TS7 Sensors to SM-DIN Boards, as well as the connection
between SM-DIN Boards and SMART MATRIX.
