Interpretation of Operating Screens

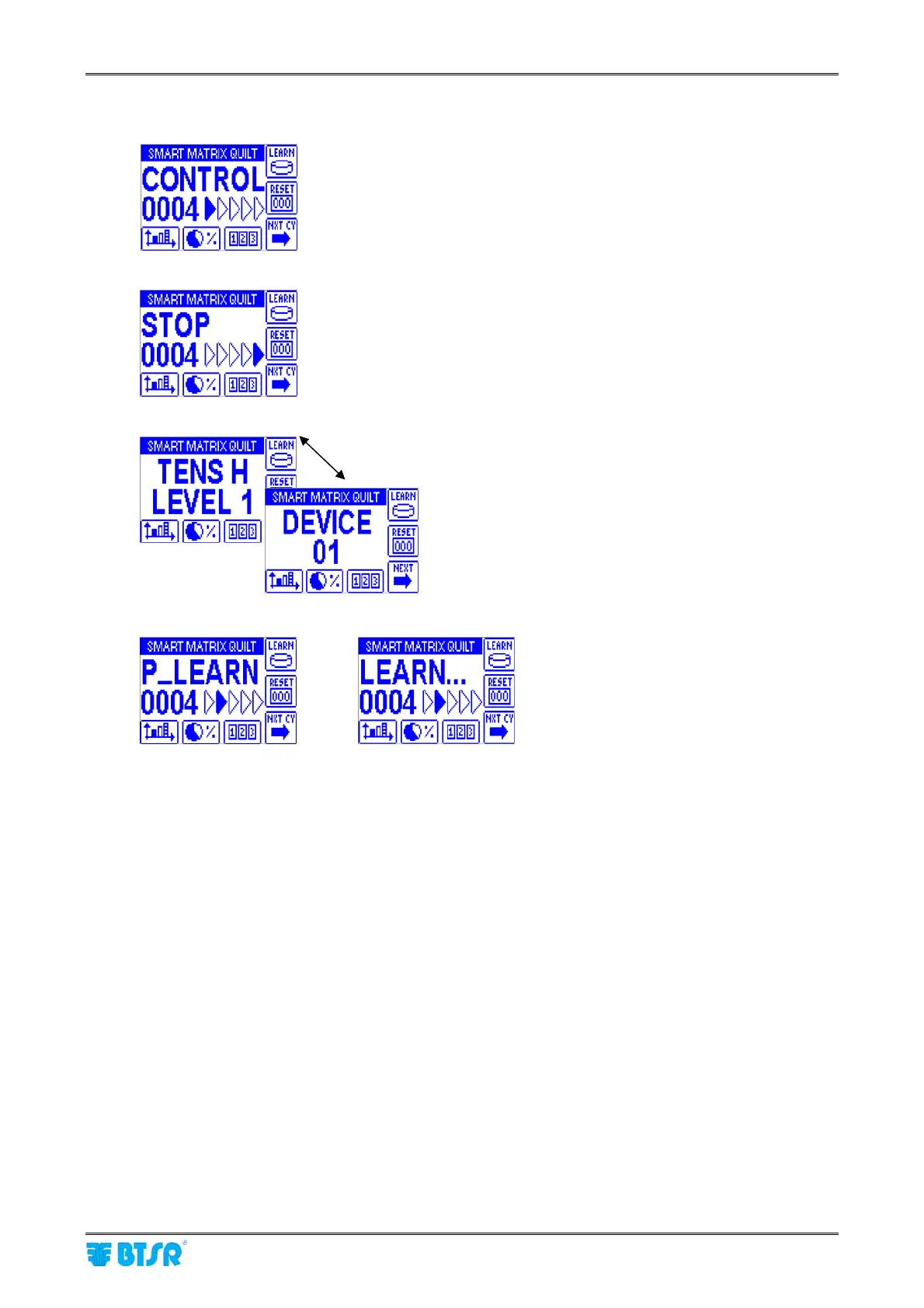

• System working in Control status
• No errors detected!
• 004 = 4 active sensors
• System working in Stop status
• No errors detected!
• 004 = 4 active sensors
•
• Tension High failure (TENS H) detected by sensor No 1
(DEVICE01) mounted on needle bar 1 (LEVEL1)
! Press to scroll the list of sensors in alarm.
!
• Learn reservation (P_LEARN)
• Learn in progress (LEARN…)
• 0004 = number of sensors detected.
Alternating
