Input/Output Configuration on SM-DIN/Smart Matrix
SMART MATRIX QUILT 2 - 12
Input/Output Configuration on SM-DIN/Smart Matrix
This function allows you to configure the input/output signals of all the SM-DIN Boards (BOARDS option) as
normally open (NO) or normally closed (NC) contacts.
It also allows you to configure the output relay of SMART MATRIX terminal as normally open (NO) or
normally closed (NC) contact.

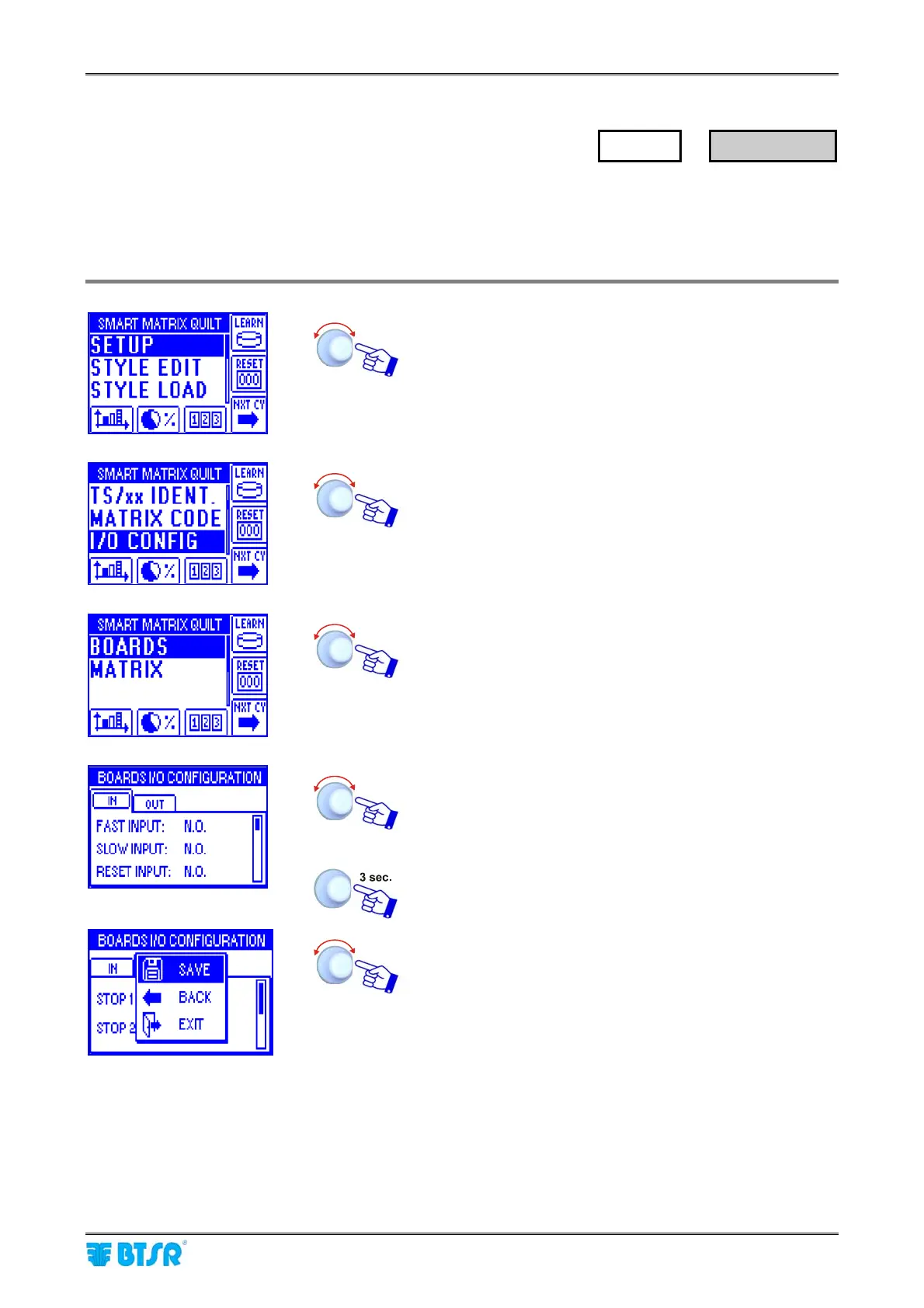

Enter the SETUP menu.
Select I/O CONFIG.
Select BOARDS.
Configure the input signals (FAST, SLOW, RESET,
LEARN, ZPX(*), PRX) within the IN window and the output
signals (STOP1, STOP2) within the OUT window, as NO or
NC.
To activate the save function.
SAVE to save the choice, BACK to return to the previous
screen without saving, EXIT to return to menu.
(*) ZPX is not used for QUILT application.
SETUP
→
I/O CONFIG
