Information reading from
SM-DIN/QUILT Boards
This function allows you to read various information stored to SM-DIN Boards
Such information could be useful to BTSR Service Department to solve particular problems.

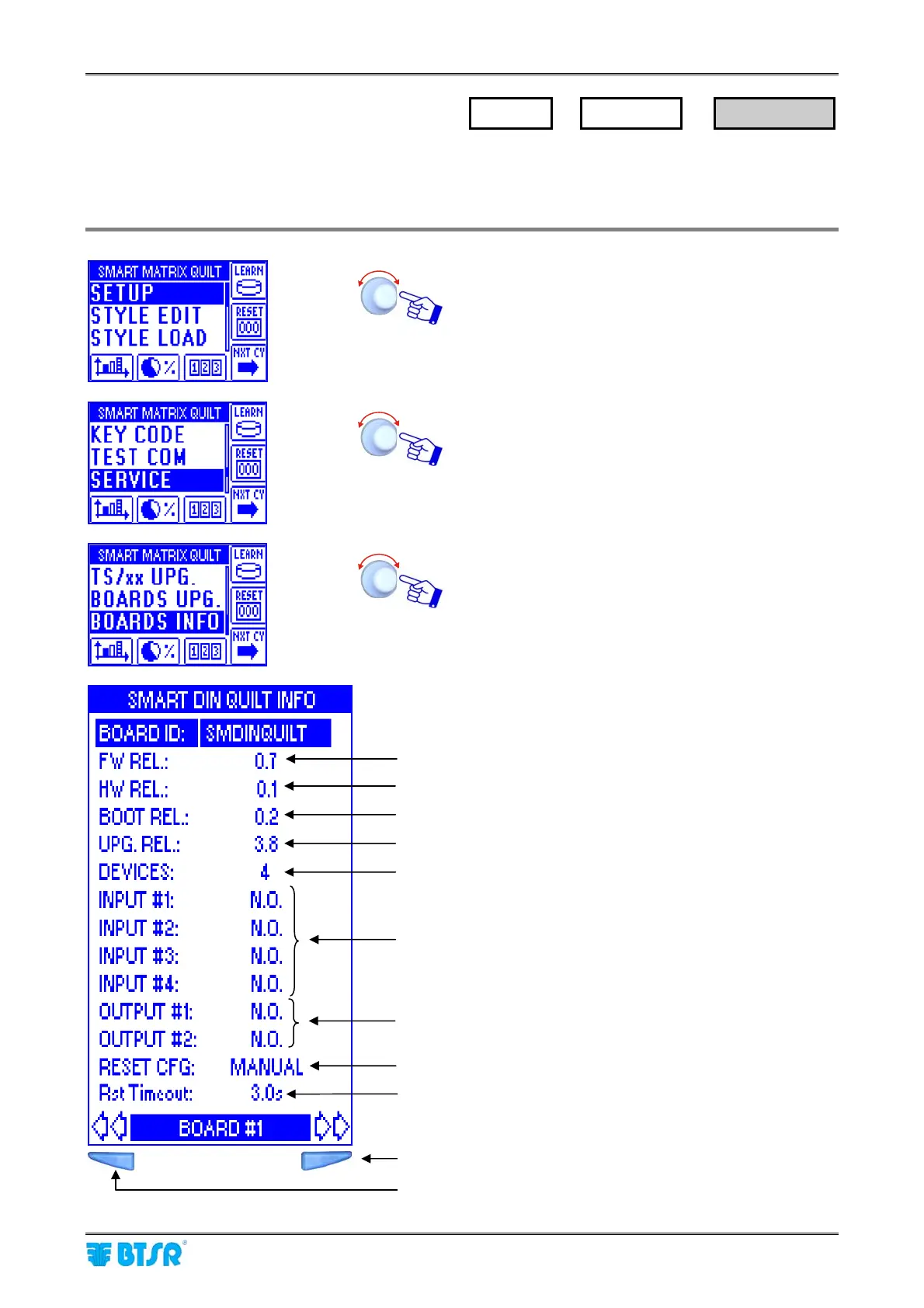

Enter the SETUP menu.
Select SERVICE.
Select BOARDS INFO.
SETUP
→
SERVICE
→
BOARDS INFO
Firmware Release currently loaded on the Board
Board Hardware Release
Board BOOTLOADER Program Release
Sensor Upgrading Release
Number of TS/xx sensors currently managed by the Board
Contact configuration (NO or NC) of input signals
Contact configuration (NO or NC) of output signals
Reset Timeout (time after which the STOP signal will be
released following, an alarm condition, after the machine
Stop).
Reset Mode Configuration (MANUAL or AUTO).
Selecting the next Board
Selecting the previous Board
To Next Page
