TS5/TS7 Offset
SMART MATRIX QUILT 2 - 19
TS5/TS7 Offset
This function allows you to read the value of tension detected by the loading cell of each sensor (without
yarn) and to carry out the calibration (offset) of all sensors or of a selectable sensor range.
Prior to start the calibration procedure, remove the yarn from the loading cell of the involved sensors.

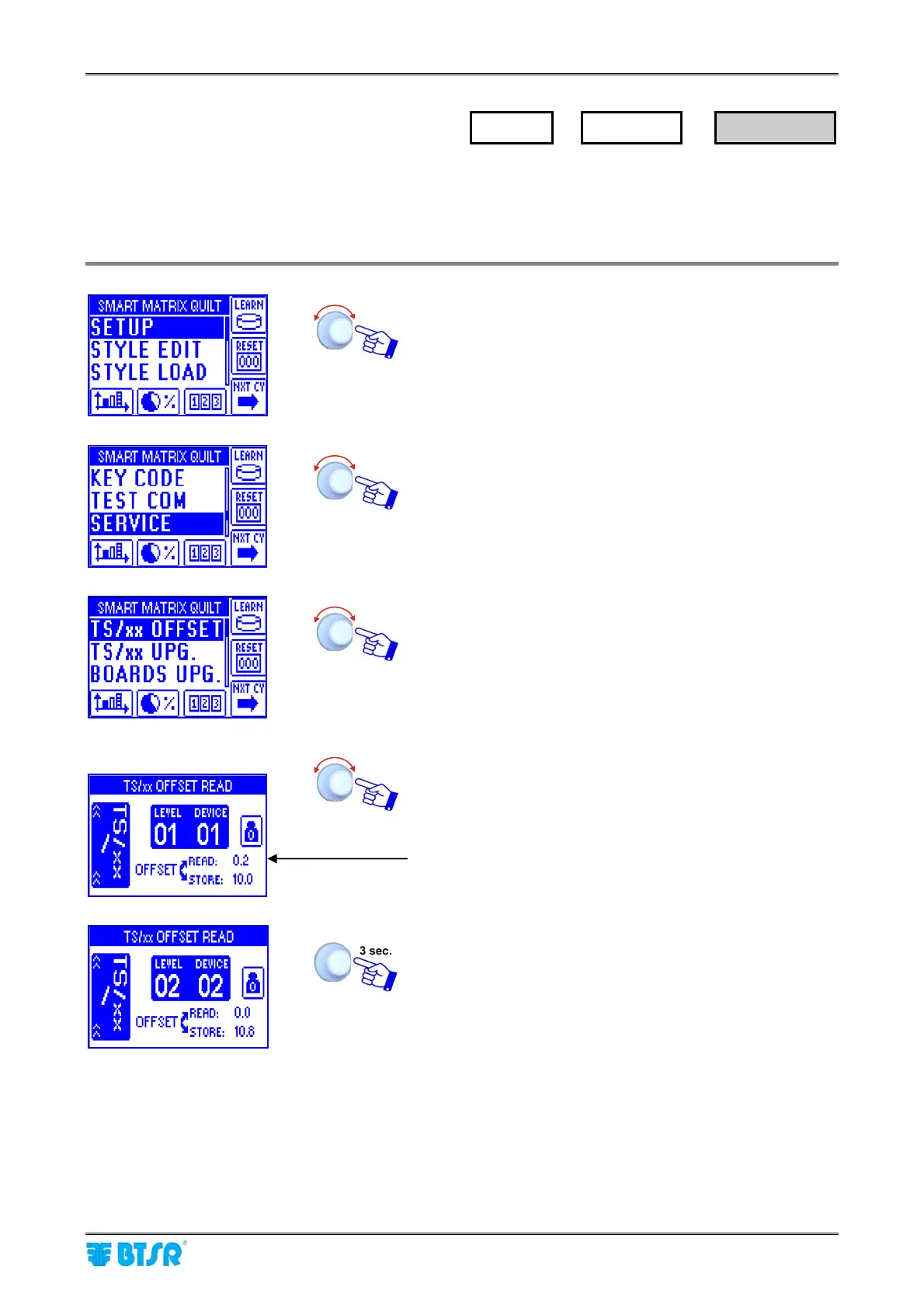

Enter the SETUP menu.
Select SERVICE.
Select TS/xx OFFSET.
Current offset reading
Select the sensor on which you want to read the current
offset (LEVEL NN, DEVICE NN).
Current value detected on sensor located at LEVEL 01,
DEVICE 01 position (0.2 g)
To move to the sensor calibration function.
SETUP
→
SERVICE
→
TS/xx OFFSET
