Troubleshooting and Maintenance
- 4.2 - SMART WARP

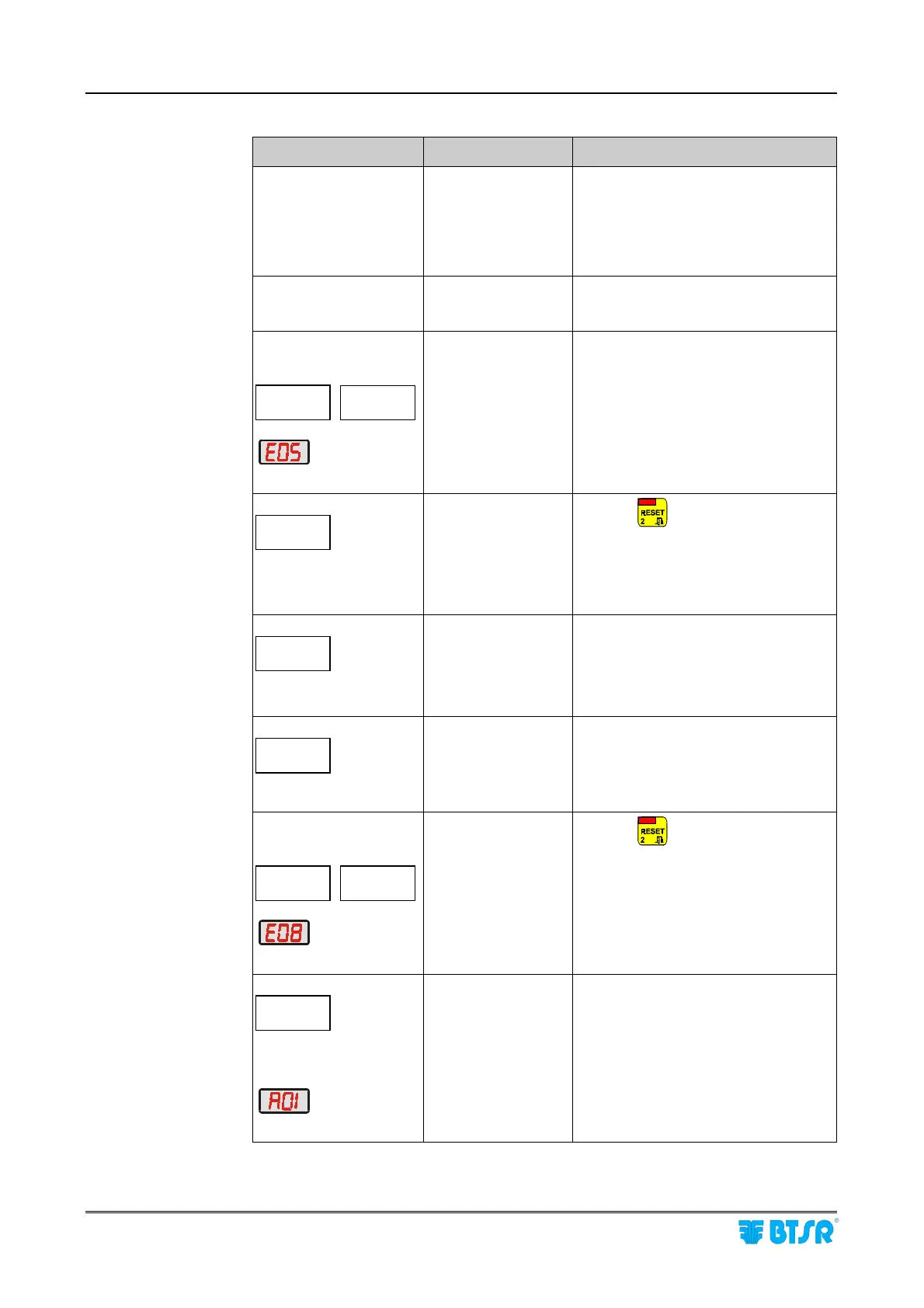

Faults Causes Solutions
The sensor failed at the
start of the yarn (the
green LED is not lit)
Insufficient Sensitivity ! Check the mechanical position of the
sensor (the yarn must run within the
image area).
! Increase Sensitivity and/or decrease
Start Frequency settings to optimise
the reading.
Missing yarn stop
signaling (the green led
does not turn off)
Sensitivity Too High
!
Decrease Sensitivity and/or increase
Stop Frequency settings.
Alternate messages on
display of SMART
terminal:
ERR-COM ROW aaa
SIDE X COL bbb
and message:
on display of the
involved MS-DIN module
Communication error
with sensor nn.
!
Check the RS485 connection.
! If necessary replace the sensor or the
related SM-DIN module.
Message:
ERROR
BOARDNN
on display of SMART
terminal
Error on SM-DIN
module nn.
! Press
! If the problem persists, turn the
system off and on again.
! If the problem persists, replace the
SM-DIN module.
Message:
ERROR
INPUT
on display of SMART
terminal
The input signal
configuration
(SLOW
EXT, FAST EXT)
is
not consistent on all
the SM-DIN modules.
! Check the wiring of input signals.
Message:
ERR_COM
BOARDNN
on display of SMART
terminal
Communication error
between SMART
terminal and SM-DIN
modules.
!
Check the numbering of SM-DIN
modules and baudrate (115 kbps).
If the problem persists replace the
SM-DIN module.
Alternate messages on
display of SMART
terminal:
ERR_PRG ROW aaa
SIDE X COL bbb
and message:
on display of the
involved MS-DIN module
Communication error
during the
programming of
sensor nn
parameters.
!
Press
and reconfigure the
P_SLOW and P_FAST parameters
Message:
ERROR
LEARN
on display of SMART
terminal
and message:
on display of the
involved MS-DIN module
Error during the Learn
phase.
! Repeat the Learn operation.
! Try to change P_SLOW and P_FAST
parameters.
If the problem persists replace the
SM-DIN module.
