5.2 MEC2 programming unit
The MEC2 programming unit is the central element with
which you operate your Logamatic 4211 control unit.
Display
The display (Æ Fig. 6, [4]) indicates functions and
operating values, e.g. the actual room temperature.
Rotary selector
The rotary selector (Æ Fig. 6, [5]) is used to set new
values and scroll through the menus.
Keys
You control the functions via the keys, and the relevant
indications appear on the display. If you push a key and
hold it down, you can change a value using the rotary
selector.
The new value will be accepted and saved after you
release the key.
You can reach certain functions, such as day room
temperature, night room temperature, and possibly the
DHW temperature or automatic heating mode, directly
via the corresponding keys (Æ Fig. 6, [1] to [3] and [6]).
Behind a flap (Æ Fig. 6, [7]), further keys are available
for additional settings, e.g. for the entry of weekdays or
setting the time.
The unit automatically returns to the standard display if
no entry is detected for some time.

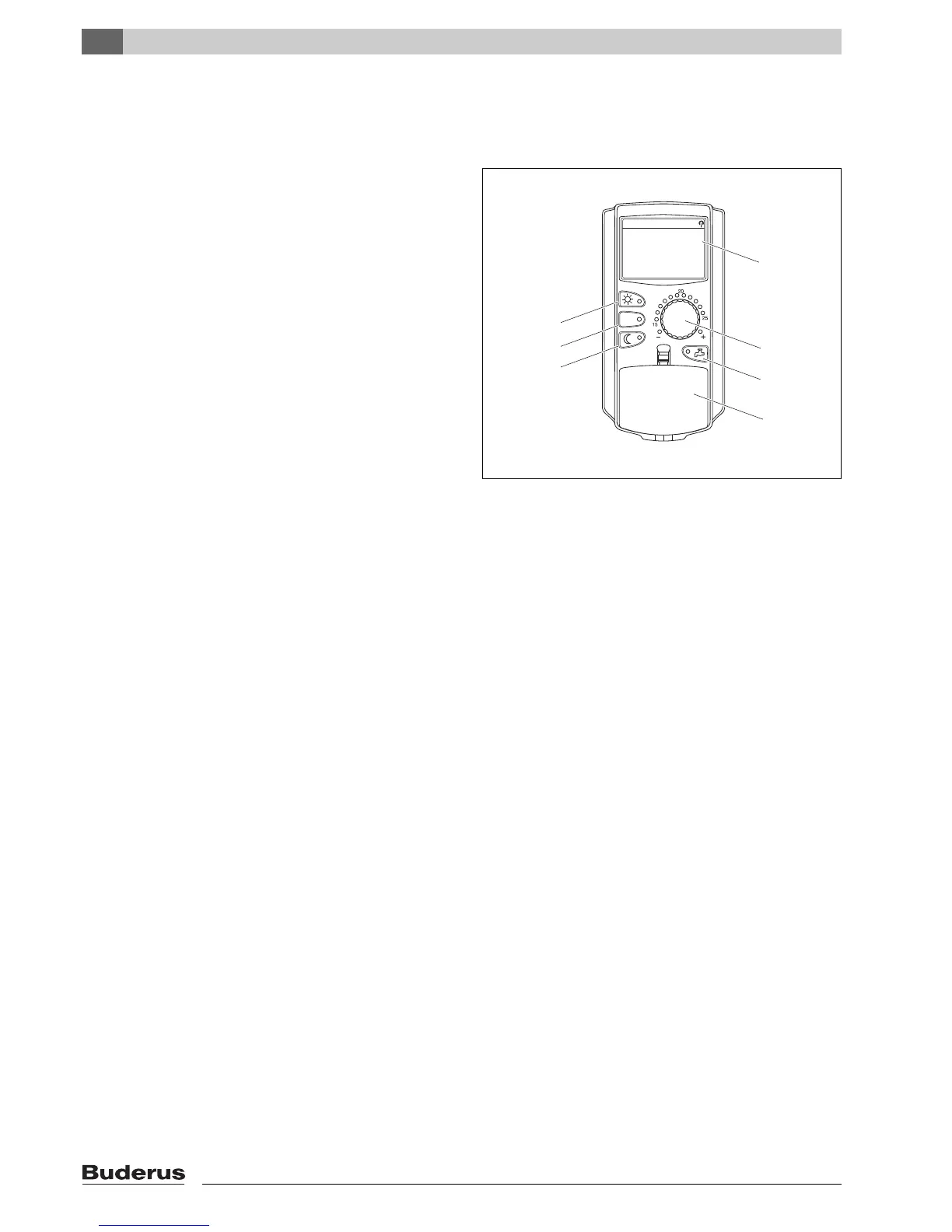

Fig. 6 MEC2 programming unit
1 Constant setback mode
2 Automatic heating mode in acc. with a time switch
3 Constant heating mode
4 Display
5 Rotary selector
6 Enter DHW temperature/reheating
7 Flap for the keypad of control level 2
