Installation 6
Logamax plus GB162-80 kW/100 kW - Subject to modifications resulting from technical improvements! 27

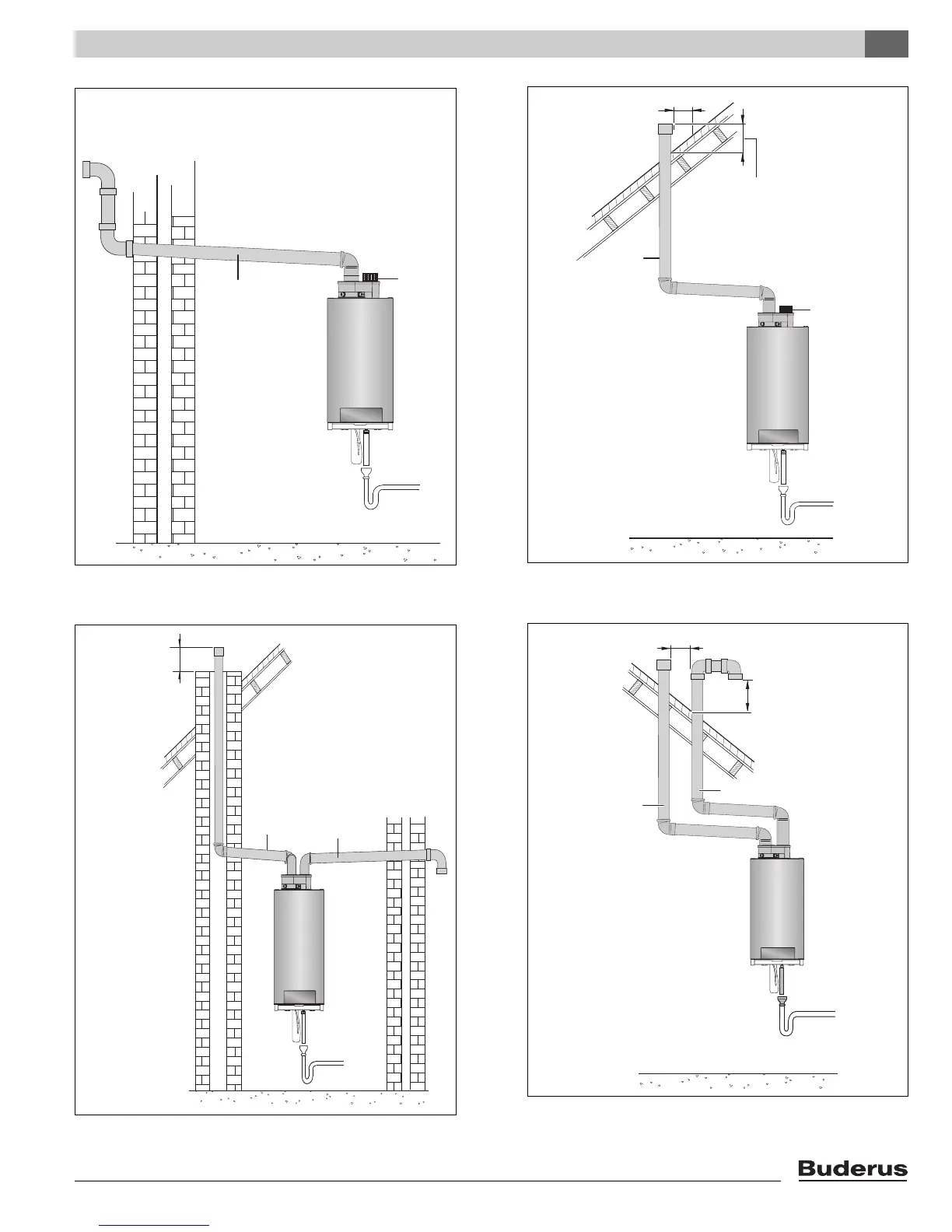

Fig. 23 Vertical venting system (room air only)
INTAKE
EXHAUST
10"- 0" MIN
(250 mm - 0 mm MIN)
12” (300 mm) over maximum
snow level or 24” (600 mm)
whichever is greater
Fig. 24 Horizontal venting system (room air only) -
Situation 1
INTAKE
EXHAUST
Fig. 25 Vertical parallel venting system (sealed
combustion) - Situation 1
INTAKE
EXHAUST
10"- 0" MIN
(250 mm - 0 mm MIN)
12" (300 mm) OVER
MAXIMUM SNOW LEVEL
OR 24" (600 mm)
WHICHEVER IS
GREATER
4" (102 mm)
4" (102 mm)
Fig. 26 Vertical venting system (sealed combustion)
Exhaust
Intake
12” (300 mm) over maximum
snow level or 24” (600 mm)
whichever is greater
