12.3.5 Disconnect the condensate trap
z Disconnect the condensate trap hose (fig. 89, pos. 3)
and the rubber sleeve (fig. 89, pos. 2) from the conden-
sate trap (fig. 89, pos. 1).
z Turn the condensate trap a quarter rotation counter-
clockwise (fig. 89).
z Disconnect the condensate trap from the coupling and
remove it (fig. 90, pos. 1).
z Rinse the condensate trap to clean it.
z Fill the condensate trap with water and reinstall it.
12.3.6 Remove the condensate collector
z Disconnect the flexible condensate drain hose and bend
it backwards (fig. 91).

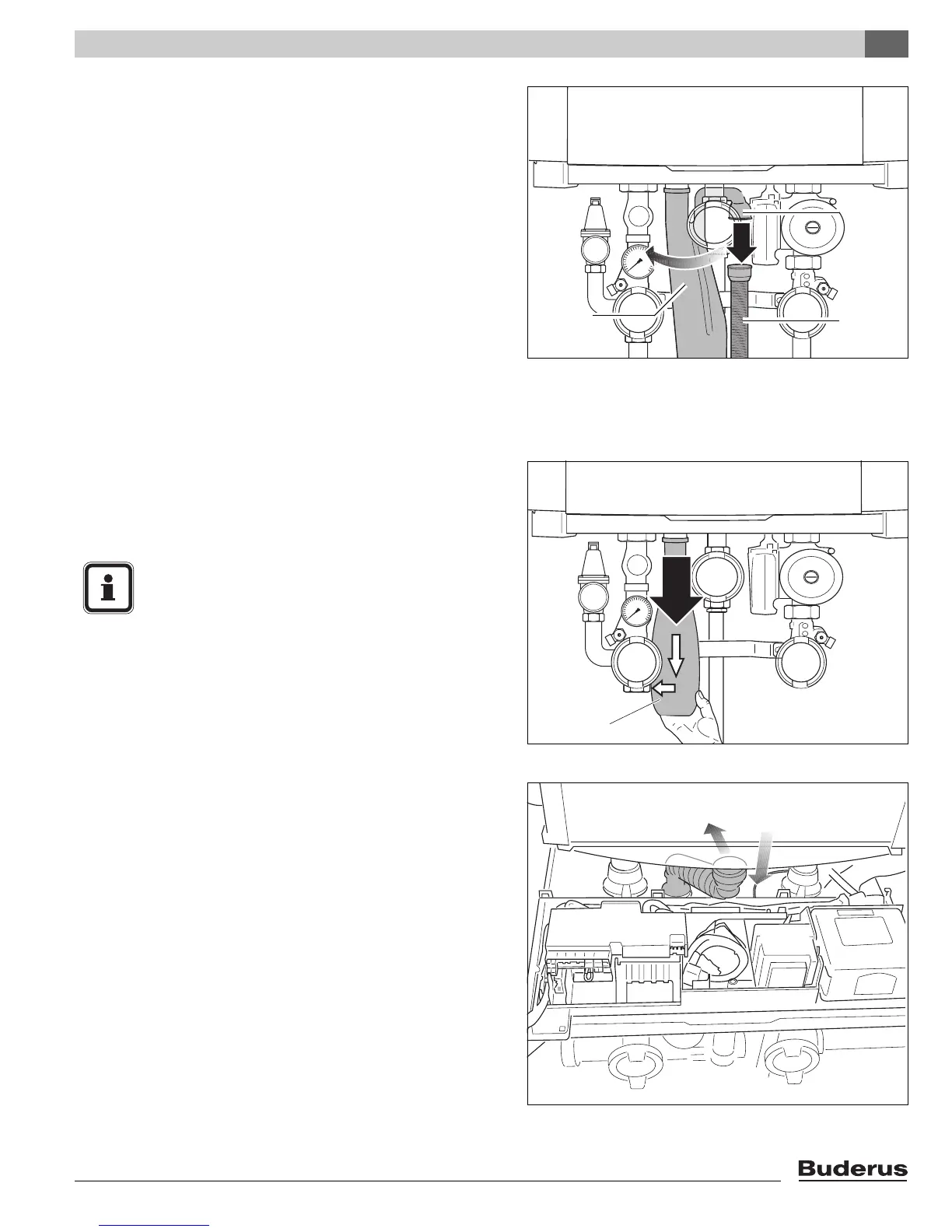

Fig. 89 Disconnecting the condensate trap hose
pos. 1: Condensate trap
pos. 2: Rubber sleeve
pos. 3: Condensate trap hose
1
2
3
Fig. 90 Disconnecting the condensate trap
1
NOTICE
The condensate trap has a bayonet connector.
After inserting it, the condensate trap must be
turned ¼ rotation clockwise to click into posi-
tion.
Fig. 91 Removing the condensate trap hose
