2-18 2007 Buell Firebolt: Chassis
HOME
ASSEMBLY
11WARNING1WARNING
Be sure that brake fluid or other lubricants do not con-
tact brake pads or discs. Such contact can adversely
affect braking ability, which could cause loss of control,
resulting in death or serious injury. (00290a)

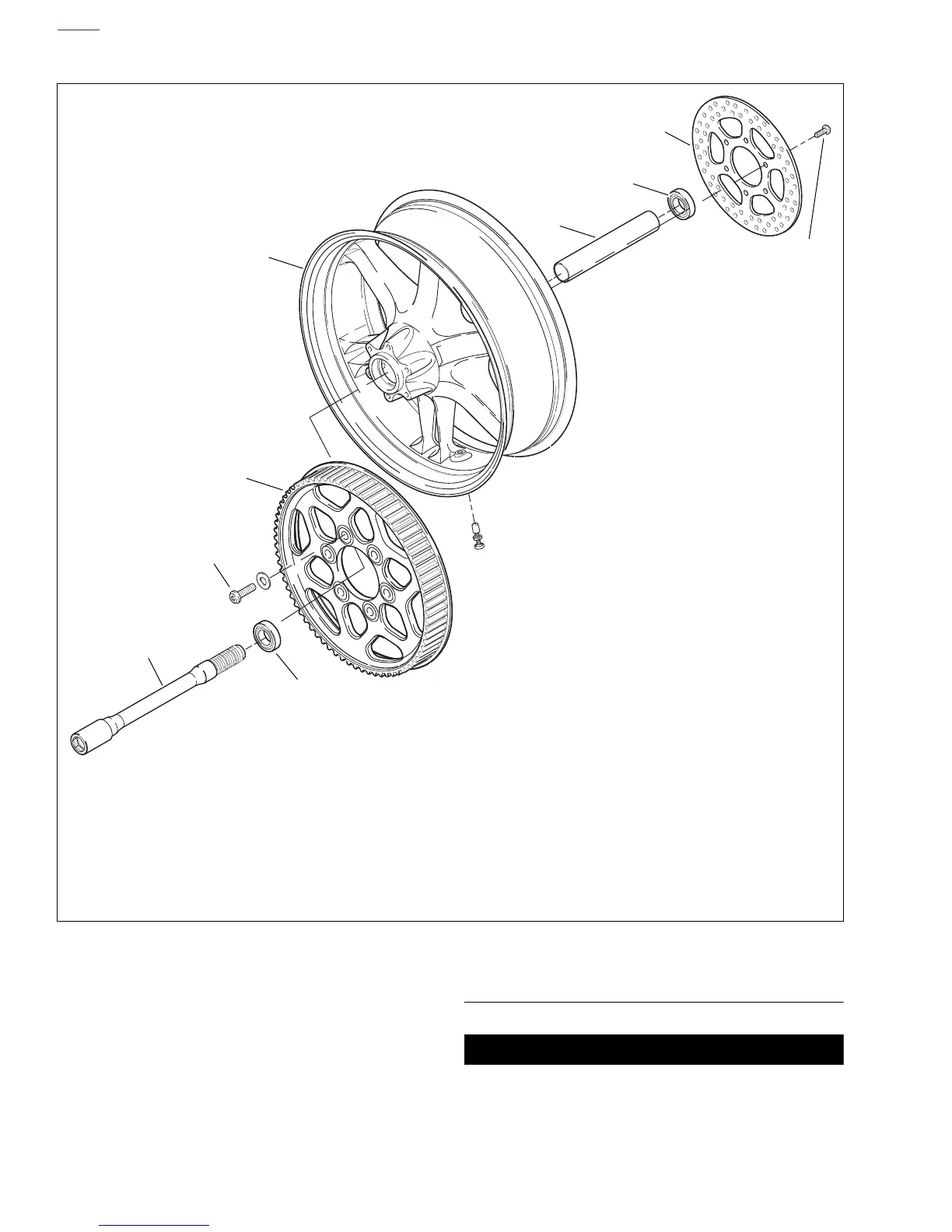

Figure 2-22. Rear Wheel Assembly
1. Rotor mounting fastener (6)
2. Brake rotor
3. Wheel bearing
4. Wheel spacer
5. Wheel
6. Sprocket
7. Sprocket fastener
8. Axle
b0936x2x
