2-84 2007 Buell Firebolt: Chassis
HOME
FENDERS 2.31
FRONT FENDER
Removal
1. See Figure 2-114. Remove fasteners and washers (2)
securing the front fender (1) to front forks.
2. Carefully remove front fender (1).
Installation
1. See Figure 2-114. Align front fender (1) to fender mounts
on front forks.
2. Use LOCTITE 271 (red) on all fasteners and install front
fender (1) with fasteners and washers (2) and tighten to
36-48 in-lbs (4-5.4 Nm).
REAR FENDER
Removal
1. See Figure 2-114. Remove fasteners and washers (4)
securing the rear fender (3) to swingarm.
2. Remove rear fender (3).
Installation
1. See Figure 2-114. Align rear brake line in rear fender.
2. Install rear fender (3) with fasteners and washers (4),
Tighten to 12-36 in-lbs (1-4 Nm).

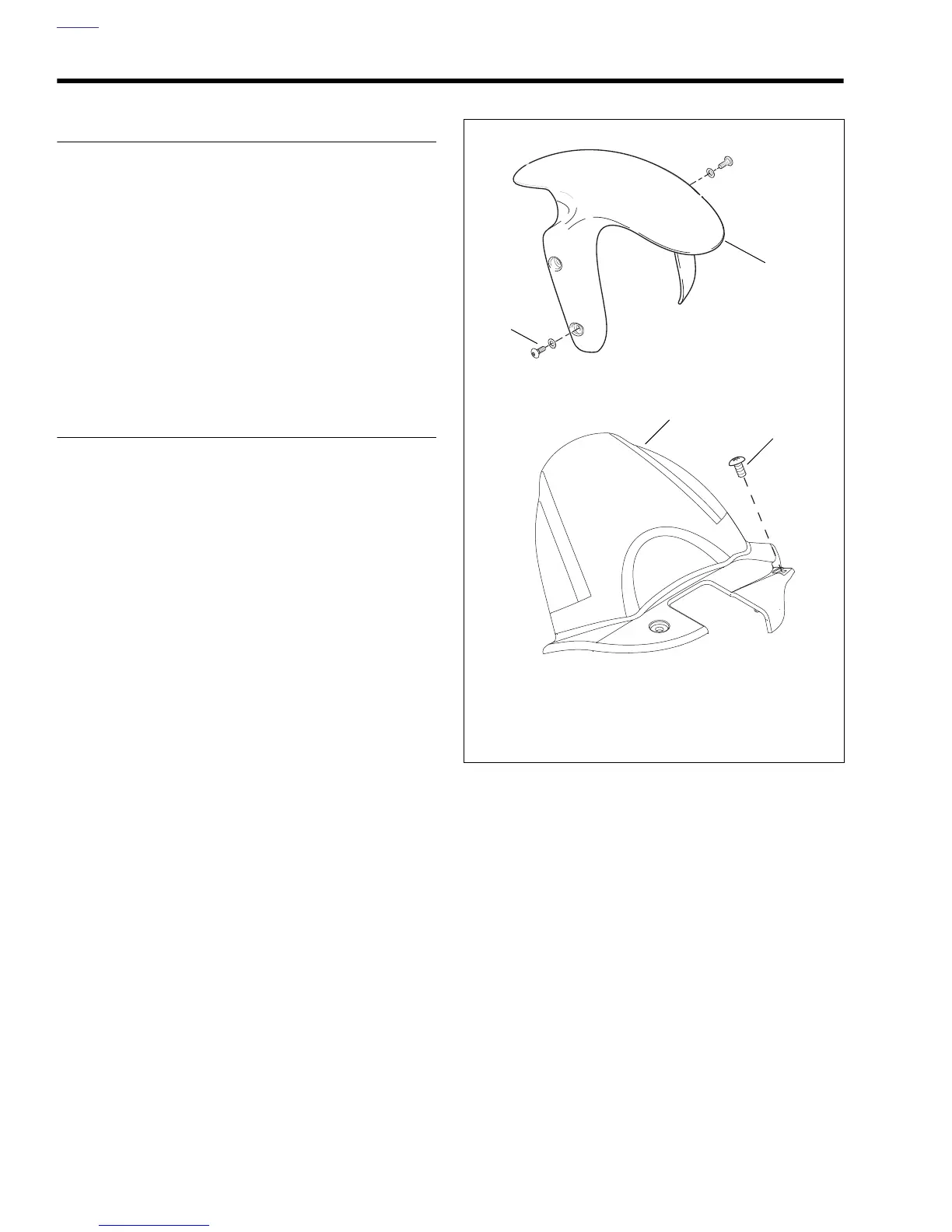

Figure 2-114. Front and Rear Fender
1. Front fender
2. Front fender fastener and washer
3. Rear fender
4. Rear fender fastener and washer
b1186x2x
1
2
3
4
