3-72 2007 Buell Firebolt: Engine
HOME
OIL HOSE ROUTING AND OIL RESERVOIR 3.9
GENERAL
See Figure 3-106. Engine oil runs through the swingarm
which serves as the oil reservoir. From the front of the reser-
voir, the vent line (2) runs to the rear of the gearcase cover.
The return line (4) and the feed line (3) run forward to the oil
pump (14). Three rubberized clamps (12) and one plastic
clamp (13) secure the lines in place.
The oil cooler feed line (5) exits the front of the oil pump and
routes across the front of the engine to the oil cooler on the
left front side of the crankcases. The oil cooler return line (6)
then exits the oil cooler and connects to the oil filter housing
on the right front side of the crankcases.
For more information see 3.14 OILING SYSTEM.

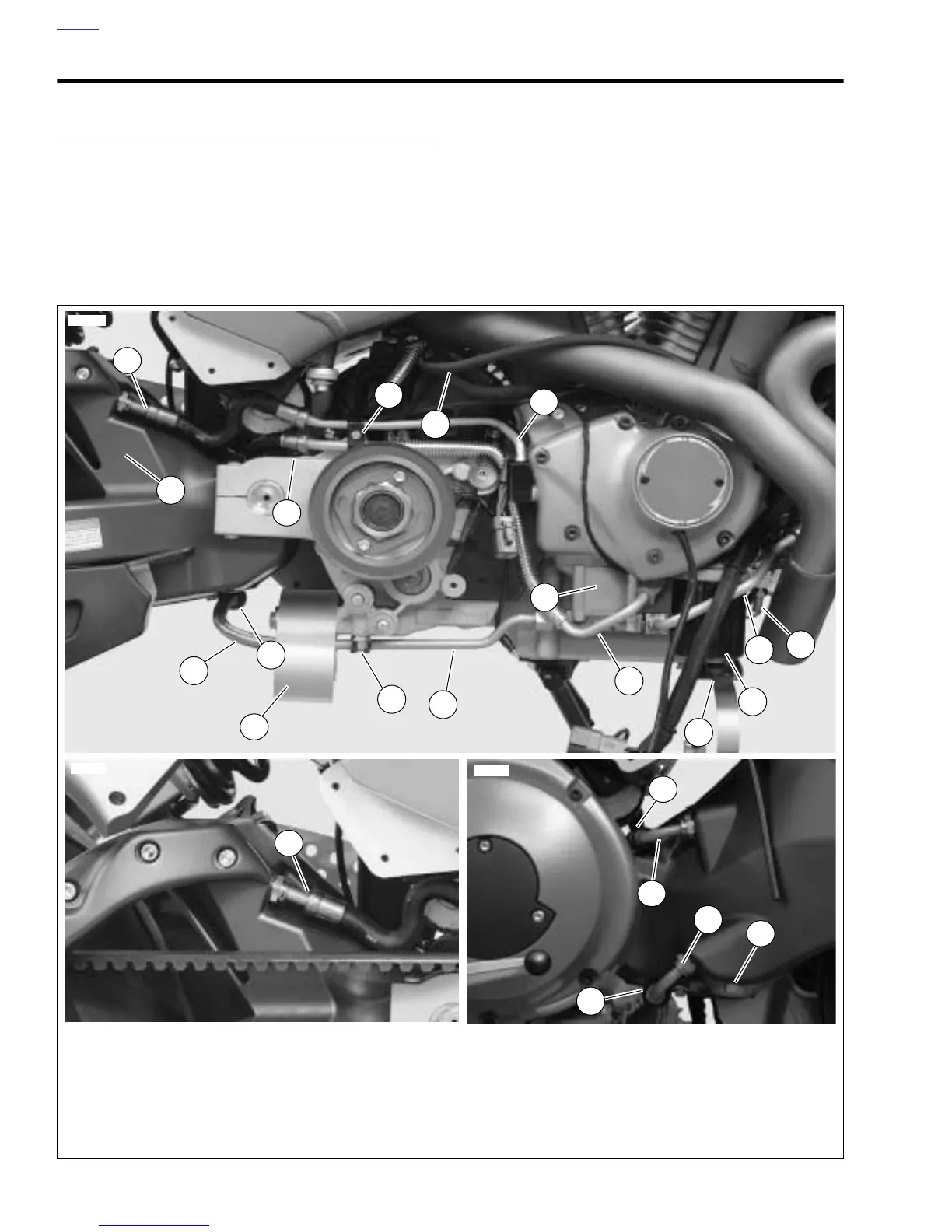

Figure 3-106. Oil Lines and Connections
1. Swingarm/Oil reservoir
2. Vent oil line
3. Feed oil line
4. Return oil line
5. Feed oil line from oil pump to oil cooler
6. Feed oil line from oil cooler to crankcase
7. Oil tank drain plug
8. Oil Filter
9. Front muffler mount
10. Rear muffler bracket
11. Cable, interactive exhaust
12. P-clamp
13. Oil line clamp
14. Oil pump
2
7
5
4
3
4
11964b
11963a
10
1
2
3
3
8
9
6
4
11972
11
12
12
13
12
12
14
2
