INTAKE AIR TEMPERATURE SENSOR 4.36
GENERAL
The intake air temperature sensor (IAT Sensor), located on
the air cleaner cover baseplate, measures the air tempera-
ture allowing the ECM to calculate the density of the air enter-
ing the manifold. The IAT is a thermistor type sensor.
REMOVAL
1WARNING1WARNING
To prevent accidental vehicle start-up, which could
cause death or serious injury, disconnect negative (-)
battery cable before proceeding. (00048a)
1. Disconnect negative battery cable.
2. See Figure 4-80. Remove air cleaner cover, filter.
Remove fasteners securing base. See 4.44 AIR
CLEANER ASSEMBLY.
3. Raise base and pull IAT sensor from sensor grommet.
4. Disconnect connector [89] from intake air temperature
sensor.
5. Inspect sensor grommet for damage and replace as
required.
INSTALLATION
1. Connect IAT sensor connector [89] to wiring harness.
2. Install IAT sensor into grommet on air cleaner base from
beneath.
3. Install air cleaner cover. See 4.44 AIR CLEANER
ASSEMBLY.
4. Install negative battery cable.

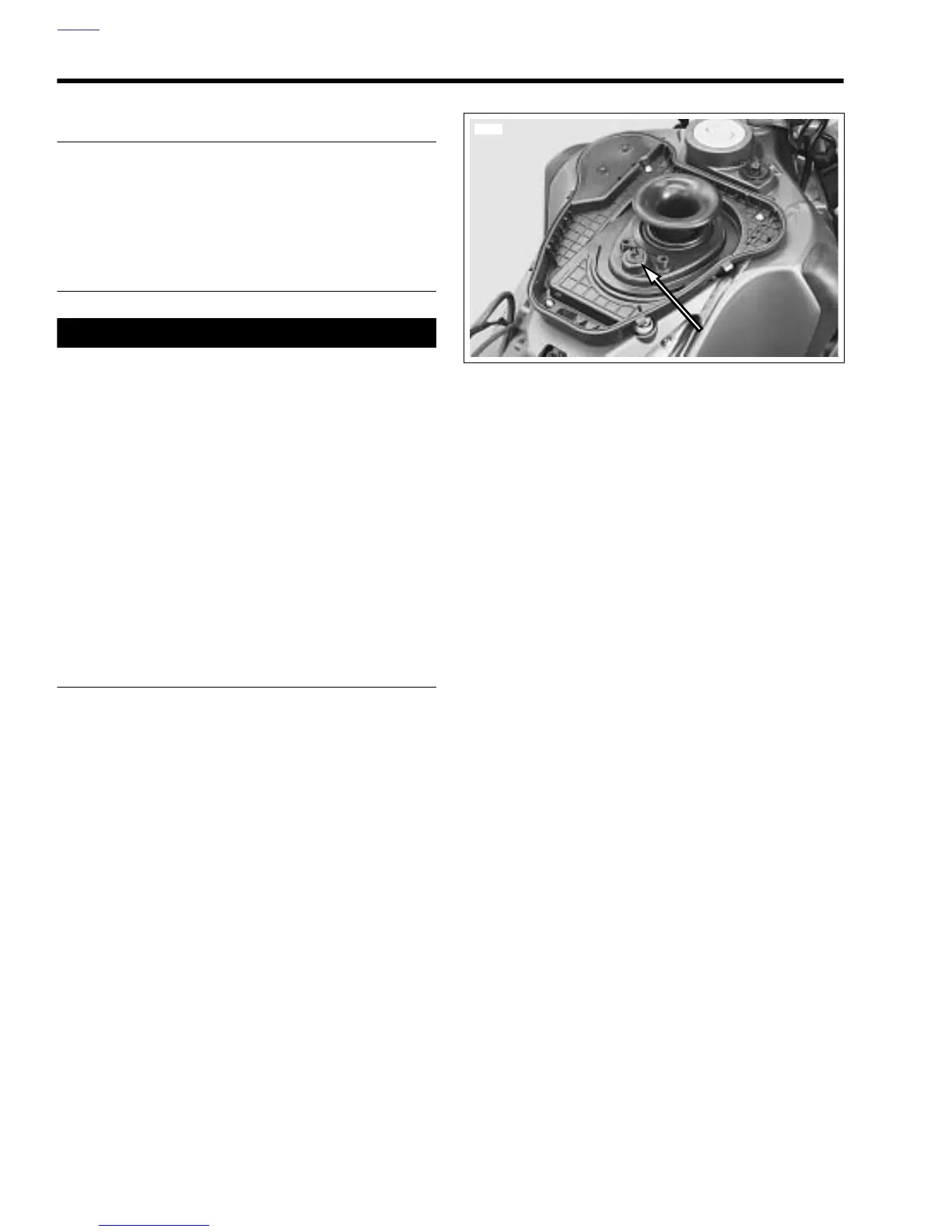

Figure 4-80. Intake Air Temperature Sensor Installed
11504
