FRONT FORK 2.16
GENERAL
The 43mm front fork consists of two telescoping outer tube/
inner slider assemblies. Each assembly has an internal com-
pression spring which supports the forward weight of the
vehicle and rider. The compression spring extends and
retracts to cushion the ride over rough or irregular road sur-
faces. An oil filled damping mechanism controls the telescop-
ing action of each tube/slider assembly.
See 1.12 SUSPENSION DAMPING ADJUSTMENTS for
more information.
REMOVAL
1. Remove front fender. See 2.31 FENDERS.
2. Remove front wheel. See 2.5 FRONT WHEEL.
3. Remove caliper mounting fasteners. See 2.12 FRONT
BRAKE CALIPER.
4. See Figure 2-62. Loosen upper (1) and lower (3) fork
clamp pinch fasteners.
5. Remove fork from upper fork clamp (2)
6. See Figure 2-63. Slide the stopper ring up and over the
top of the fork.
7. See Figure 2-62. Remove fork from lower fork clamp (4).
8. Repeat 4 through 6 on opposite side.

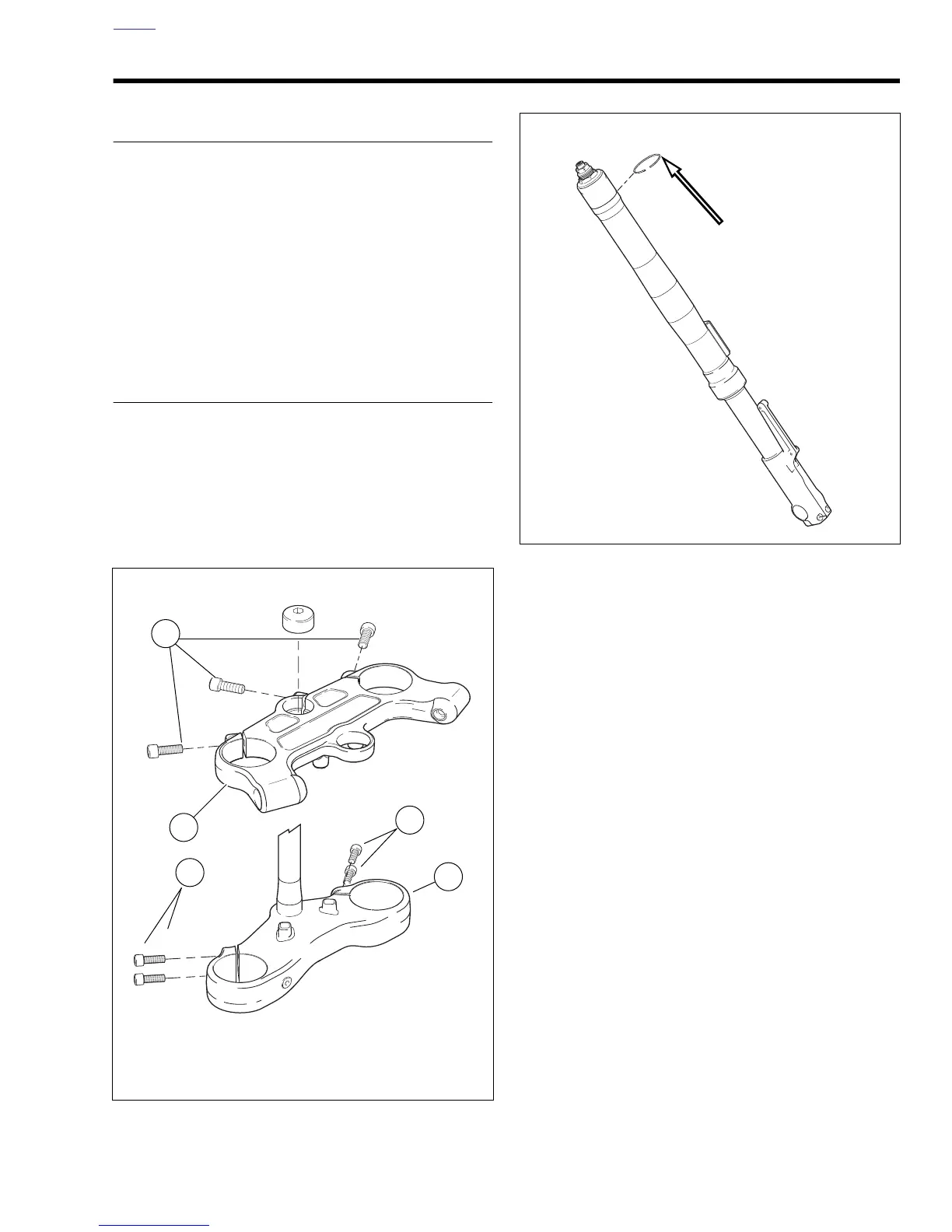

Figure 2-62. Upper and Lower Fork Clamp Pinch
Fasteners
b1089x2x
1
2
3
1. Upper pinch fasteners
2. Upper fork clamp
3. Lower pinch fasteners
4. Lower fork clamp
3
4
Figure 2-63. Stopper Ring
