4-60 2007 Buell Firebolt: Fuel System
HOME
TROUBLE CODE 16 4.20
GENERAL
Battery Voltage
A Code 16 will set if the ECM detects battery positive voltage
less than 6 volts or greater than 20 volts.
● A low voltage condition typically occurs during activation
of the starter or generally indicates loose wire connec-
tions.
● A high voltage condition is usually caused by a faulty
voltage regulator.
DIAGNOSTICS
Diagnostic Notes
The reference numbers below correlate with the circled num-
bers on the Code 16 flow charts.
1. The ECM is monitoring voltage at ECM connector [10]
(black) Terminal 1. Connect BREAKOUT BOX (Part No.
HD-42682) to ECM. See 4.6 BREAKOUT BOX.
2. This checks for voltage drops in the ECM power circuit. If
a significant voltage drop is not present, condition may
be caused by excessive starter current draw.

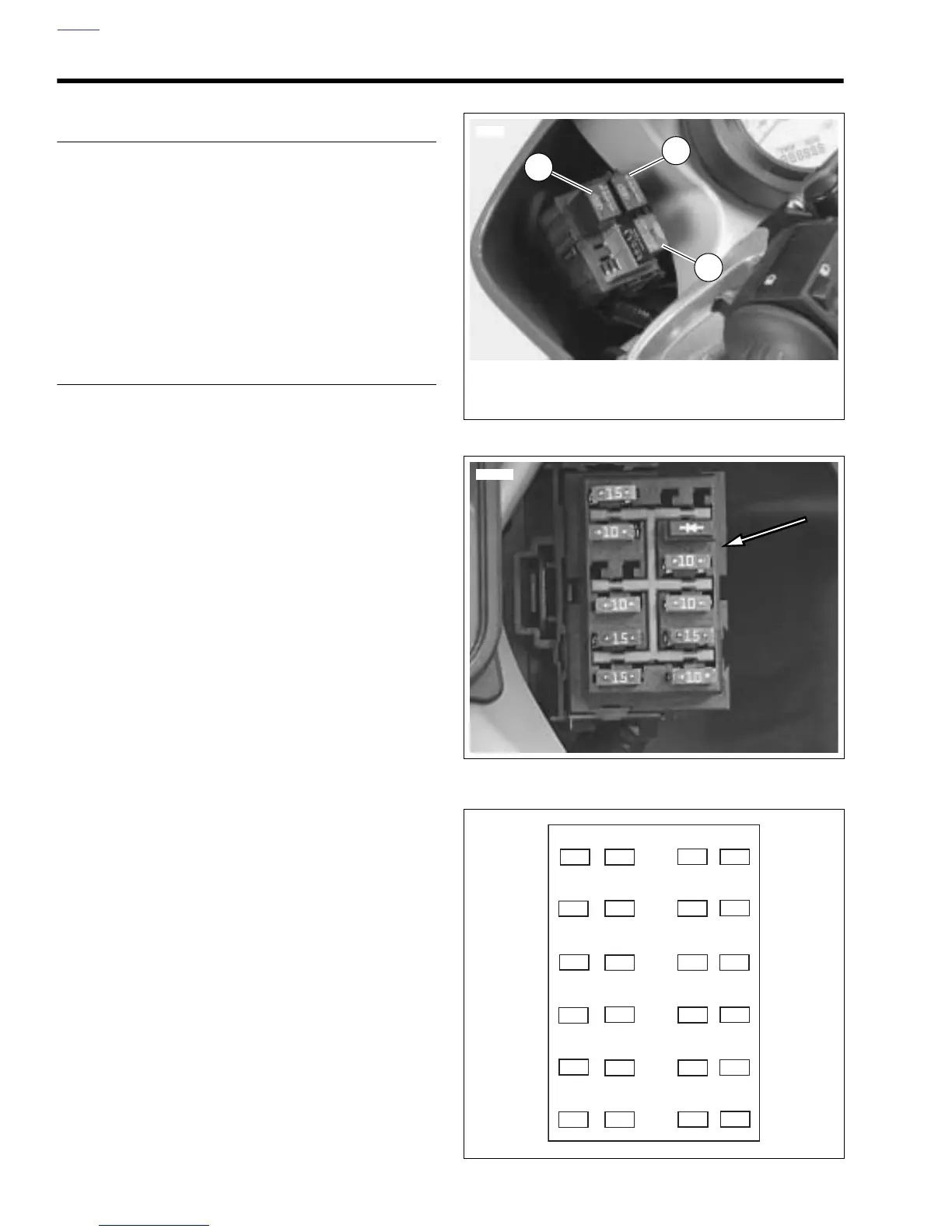

Figure 4-40. Electrical Relays
Figure 4-41. Fuse Block
Figure 4-42. Fuses and Diode
8379
1
1. Key Switch Relay
2. Ignition Relay
3. Start Relay
3
2
10960
19
20
21
22
23
24
13
14
15
16
17
18
1
2
3
4
5
6
7
8
9
10
11
12
11
Spare
Diode
Bk/Hn/Mflr
Fan
IGN
Acces.
Key Sw
Lights
ECM
Spare
Empty
Empty
ax
