7-44 2007 Buell Firebolt: Electrical
HOME
TAIL LAMP 7.13
REMOVAL/DISASSEMBLY
1. See Figure 7-50. Remove two screws (3) to detach tail
light lens (4) and tail light (5). If replacing bulb (2), turn
counterclockwise and remove.
2. Disconnect two connectors [93] from tail lamp harness
(6).
ASSEMBLY/INSTALLATION
1. See Figure 7-50. Attach the two tail light harness con-
nectors [93] (6).
a. Single wire connector connects to single spade of
tail lamp.
b. Dual wire connector connects to dual spades of tail
lamp with red wire facing left side of vehicle.
2. If removed, install tail lamp bulb (2).
a. Turn bulb clockwise to install.
b. Install tail light lens (4) and tail light (5) with two fas-
teners (3) and tighten to 6-7 in-lbs (0.7-0.8 Nm).
1WARNING1WARNING
Be sure that all lights and switches operate properly
before operating motorcycle. Low visibility of rider can
result in death or serious injury. (00316a)
3. Check tail lamp for proper operation. If operation fails,
reread procedure and verify that all steps were per-
formed.
a. Turn ignition key switch to ON.
b. Check for tail lamp illumination.
c. Squeeze front brake hand lever. Check for brake
lamp illumination. Release front brake hand lever.
d. Press rear brake pedal. Check for brake lamp illumi-
nation. Release rear brake pedal.
e. Turn ignition key switch to OFF.

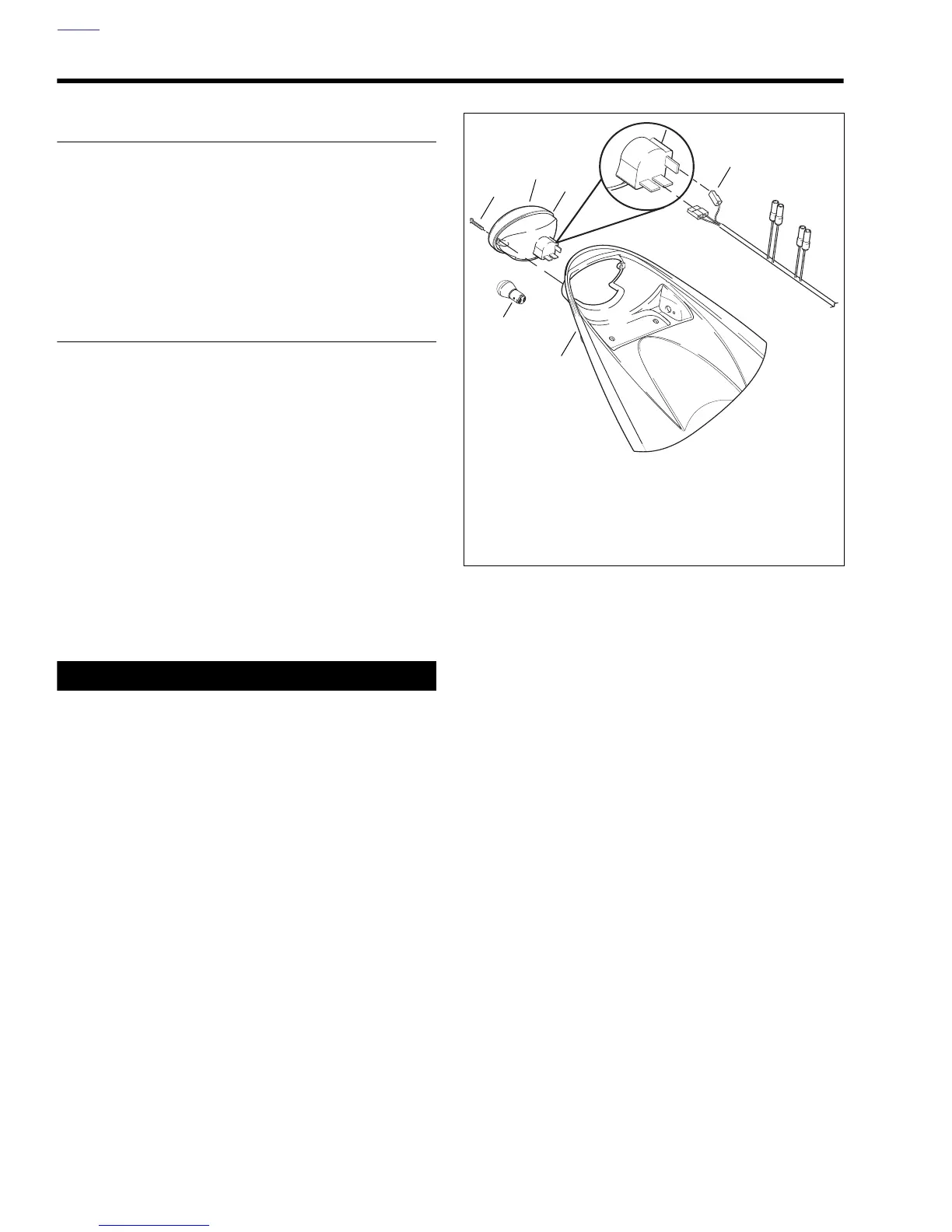

Figure 7-50. Tail Lamp Assembly
b1006a7x
1. Tail section
2. Tail lamp bulb
3. Fastener (2)
4. Tail light lens
5. Tail light
6. Tail light harness
3
2
1
6
5
4
