HEADLIGHT ASSEMBLY AND SUPPORT BRACKET 2.25
REMOVAL
1. Remove seat. See 2.38 SEAT.
11WARNING1WARNING
To prevent accidental vehicle start-up, which could
cause death or serious injury, disconnect negative (-)
battery cable before proceeding. (00048a)
2. Disconnect battery by unthreading fastener removing
negative cable (black) from battery first. See 1.5 BAT-
TERY MAINTENANCE.
3. Remove front fairing. See 2.37 FRONT FAIRING, WIND-
SHIELD, AND MIRRORS.
4. See Figure 2-101. Disconnect flasher (1) and bank angle
sensor (2). Remove electronic control module fasteners
(3).
5. See Figure 2-103. Rotate headlamp support bracket.
a. Loosen headlamp pivot fasteners (1).
b. Rotate headlight bracket (2) down.
6. See Figure 2-102. Disconnect headlight connection.
7. Disconnect and remove electronic control module. See
4.30 ELECTRONIC CONTROL MODULE.
8. See Figure 2-103. Remove headlight support
bracket (2).

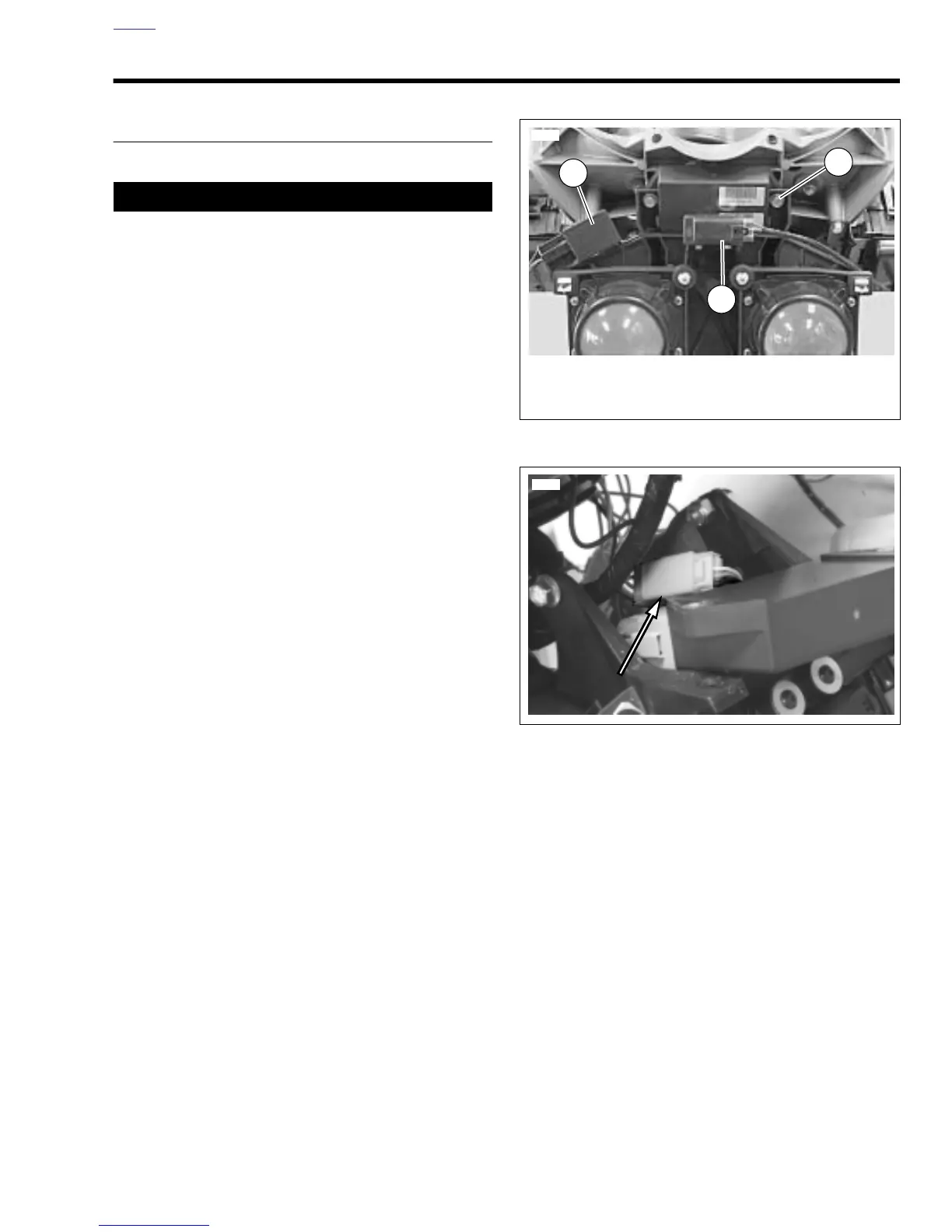

Figure 2-101. Headlight Support Bracket
Figure 2-102. Headlight Connector
6775
1. Flasher
2. Bank angle sensor
3. Electronic control module
1
8428
2
3
8470
