2-72 2007 Buell Firebolt: Chassis
HOME
DISASSEMBLY
1. See Figure 2-101. Remove bank angle sensor (2).
2. Remove flasher.
3. See Figure 2-103. Remove black rubber cover (4) from
rear of headlights.
4. Disconnect black connector from headlights.
5. Disconnect headlight bulb (8) connector (white) from
wire harness.
6. Remove headlights (5, 7) from headlight support bracket
(2) by removing headlight fasteners (6).
ASSEMBLY
1. See Figure 2-103. Align headlights (5, 7) into headlight
support bracket (2). Tighten headlight fasteners (6) to 20-
25 in lbs (2.3-2.8 Nm).
2. Connect headlight bulb (8) connector (white) into wire-
harness.
3. Connect black headlight connector.
4. Install black rubber cover (4).
5. See Figure 2-101. Install bank angle sensor connector
case (2). Tighten to 12-36 in-lbs (1-4 Nm).
6. Install flasher (1) and tighten to 36-60 in-lbs (4-6.7 Nm).

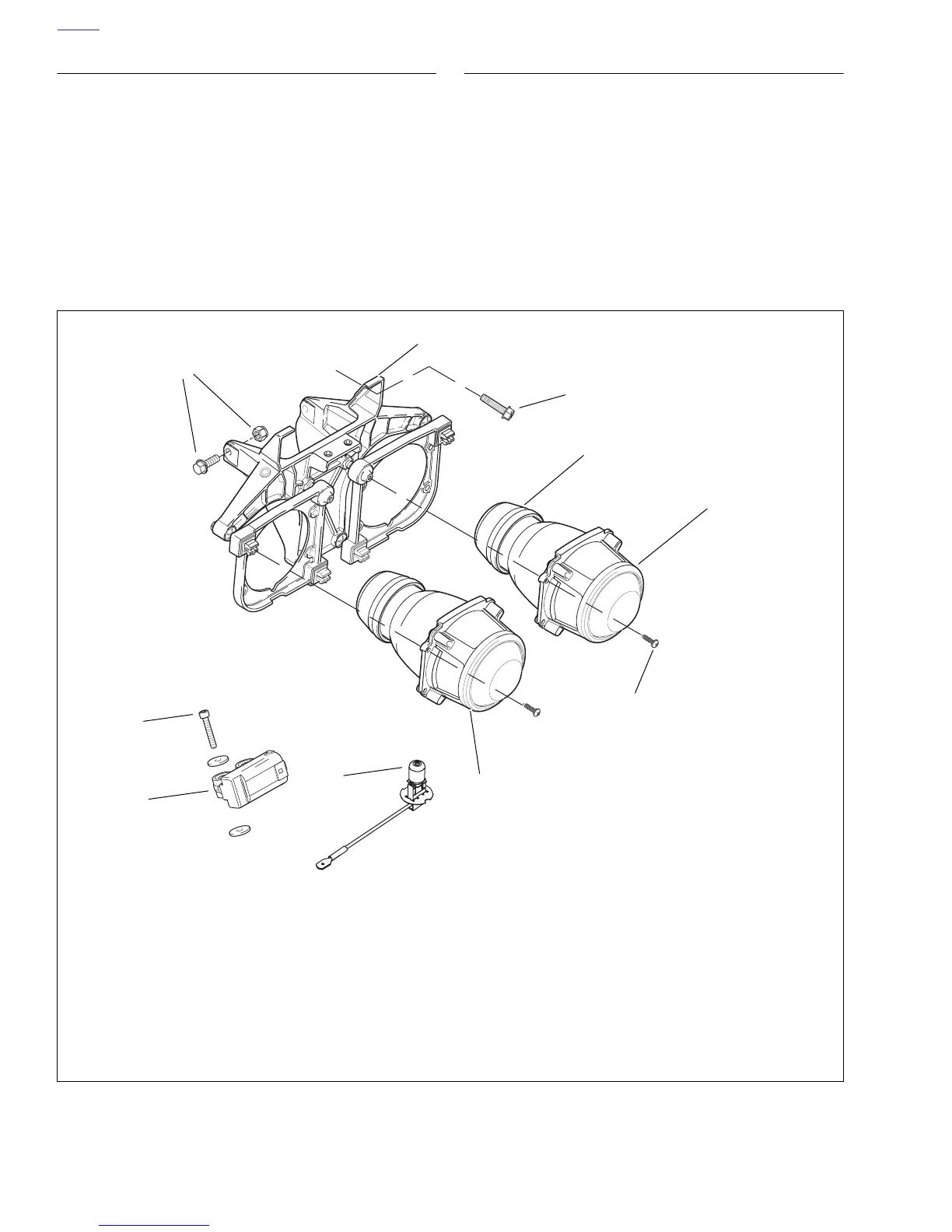

Figure 2-103. Headlight Support Bracket Assembly
1. Headlight pivot fasteners
2. Headlight support bracket
3. Electronic control module fasteners
4. Black rubber cover
5. Low beam headlight
6. Headlight fastener
7. High beam headlight
8. Headlight bulb
9. Bank angle sensor
10. Bank angle sensor fastener
b0989x2x
2
5
7
3
1
8
4
9
10
6
