2007 Buell Firebolt: Electrical 7-45
HOME
TURN SIGNALS 7.14
REMOVAL
NOTE
To ensure correct installation, make note of wire routing and
cable strap locations before removing turn signals.
Bulbs
Remove screw on back of housing to access turn signal
bulbs.
Front
1. See Figure 7-51. Disconnect bullet connectors on turn
signal wires.
2. See Figure 7-52. Remove fastener (3) and lockwasher
(2) from fairing support bracket (4).
3. Pull bullet connectors and wiring through hole in fairing
support bracket (4) and fairing (5).
Rear
1. Remove seat See 2.38 SEAT.
2. Remove tail frame upper body work. See 2.36 SUB-
FRAME TAIL ASSEMBLY AND BODY WORK.
3. See Figure 7-54. Disconnect bullet connectors on turn
signal wires.
4. See Figure 7-53. Remove fastener (6) and lockwasher
(5).
NOTE
In next step, reflector bracket (3) will be removed with turn
signal (1).
5. Remove turn signal from tail section (7) and license plate
bracket (4).

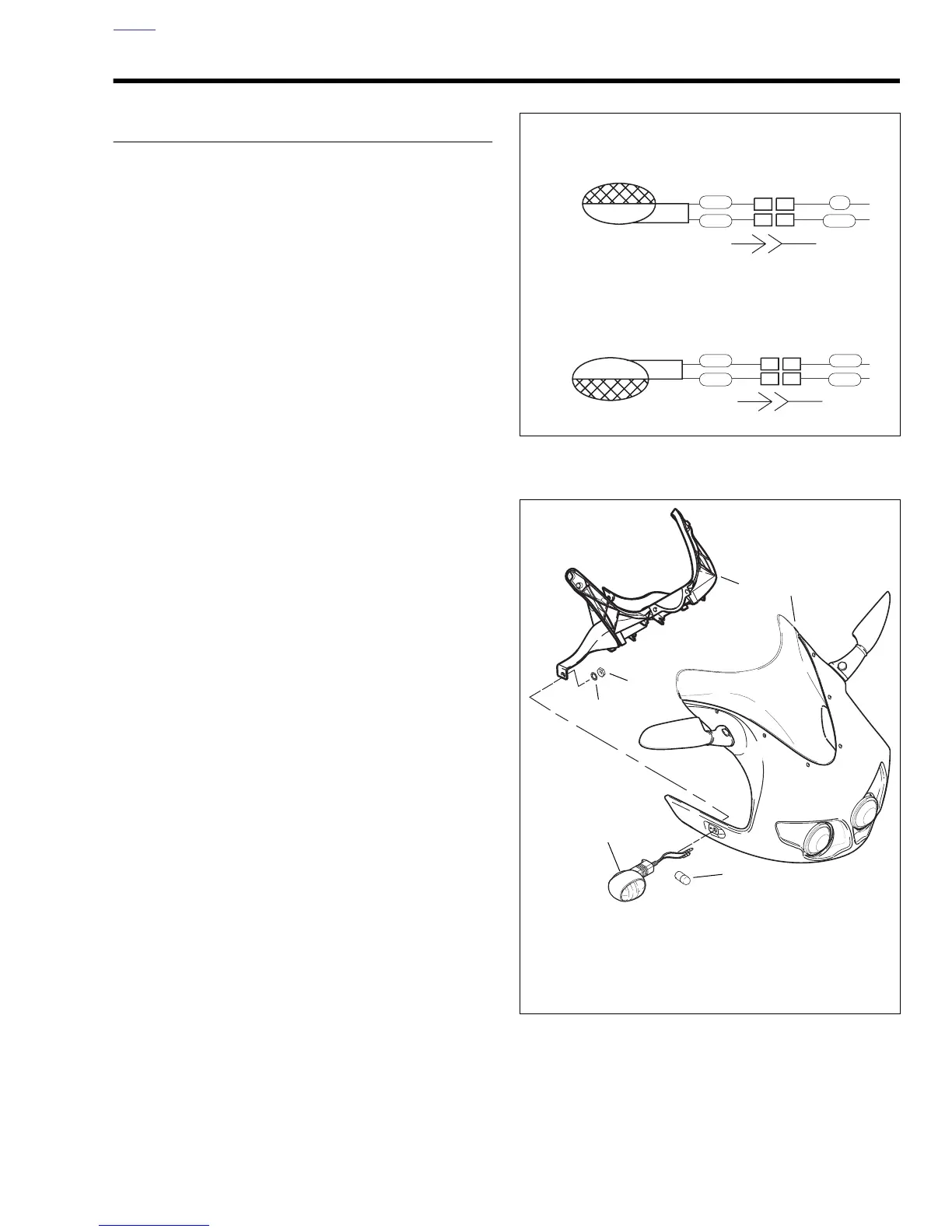

Figure 7-51. Front Turn Signal Connections
Figure 7-52. Front Turn Signals
22
11
11
22
[31B]
[31A]
[31B]
[31A]
b1100x7x
Right Turn
Signal
Left Turn
Signal
BK
V
BE
BK
BK
BE
BK
BN
b1007x7x
1. Turn signal (2)
2. Lockwasher (2)
3. Fastener (2)
4. Fairing support bracket
5. Fairing
6. Bulb
1
2
3
4
5
6
