MAIN FUSE AND FUSES 7.22
GENERAL
Buell motorcycles feature two components which protect the
electrical system.
Fuses
See Figure 7-74.The covered fuse block is behind the fairing
on the right hand side of the motorcycle.
See Figure 7-75. The lights, key switch and ignition fuses are
rated at 15 Amps. The ECM, cooling fan, brake/horn/muffler
and accessory fuses are rated at 10.0 Amps.
Always investigate the cause of blown fuses before replacing
them.
Main Fuse
See Figure 7-76. The 30 Amp main fuse is located under the
seat.
To disable the motorcycle’s ignition system, pull the main fuse
up and out of the main fuse holder.

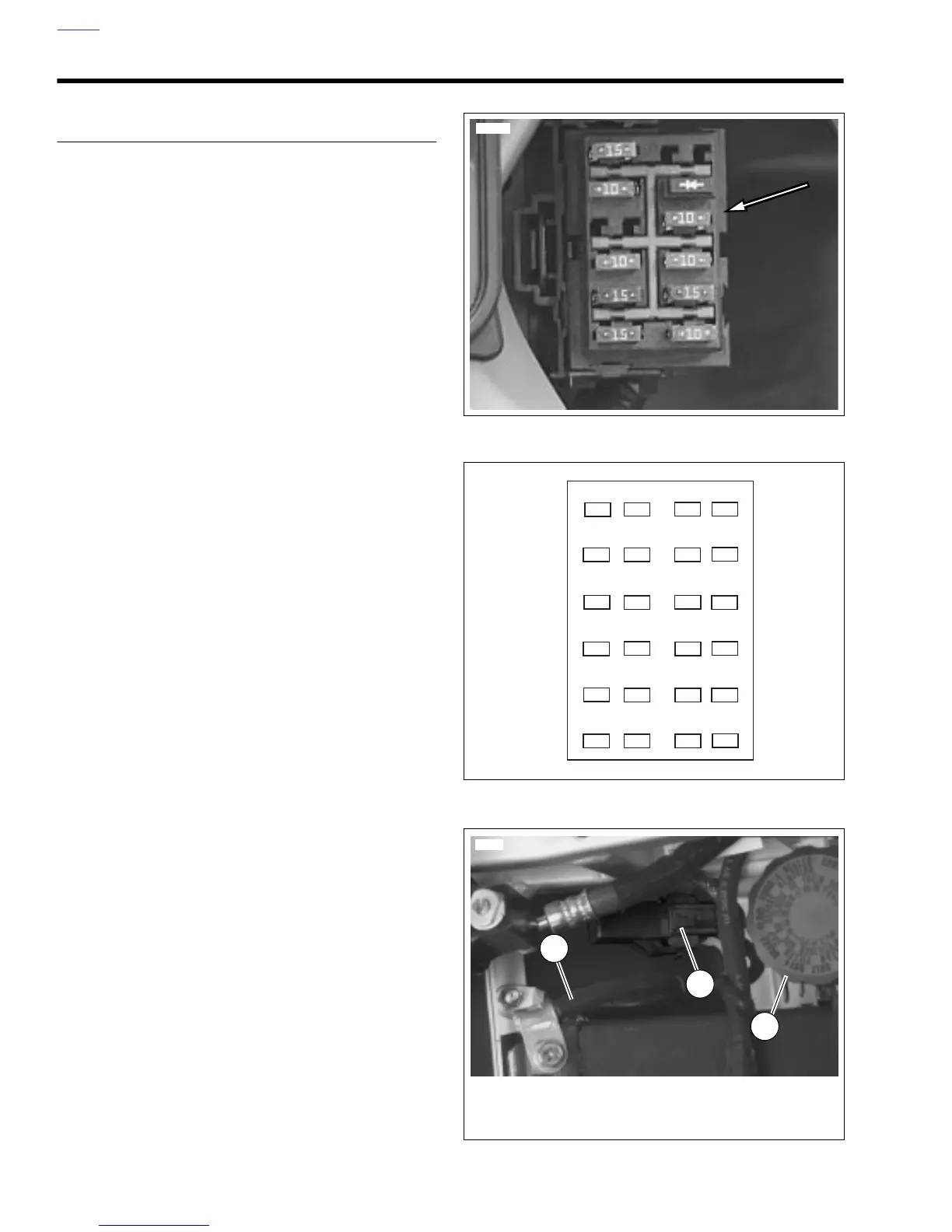

Figure 7-74. Fuse Block
Figure 7-75. Fuse Block
Figure 7-76. 30 A Main Fuse Location
10960
19
20
21
22
23
24
13
14
15
16
17
18
1
2
3
4
5
6
7
8
9
10
11
12
11
Spare
Diode
Bk/Hn/Mflr
Fan
IGN
Acces.
Key Sw
Lights
ECM
Spare
Empty
Empty
b1165x4x
8464
1. Negative battery cable
2. Main fuse holder
3. Rear brake fluid reservoir
1
2
3
