HORN 7.20
GENERAL
The horn is located inside fairing.
REMOVAL
1. Remove seat. See 2.38 SEAT.
1WARNING1WARNING
To prevent accidental vehicle start-up, which could
cause death or serious injury, disconnect negative (-)
battery cable before proceeding. (00048a)
2. Disconnect negative battery cable.
3. Remove headlight support bracket. See 2.25 HEAD-
LIGHT ASSEMBLY AND SUPPORT BRACKET.
4. See Figure 7-69. Remove fastener (3).
5. Remove horn (1) from fairing support bracket (4).
6. See Figure 7-70. Detach Y/BK power wire and BK
ground wire from terminal clips on horn.
INSTALLATION
1. See Figure 7-70. Connect Y/BK power wire and BK
ground wire to terminal clips on horn.
2. See Figure 7-69. Attach horn (1) to fairing support
bracket (4) using fastener (3). Tighten to 72-96 in-lbs
(8.1-10.8 Nm).
3. Install negative battery cable.
4. Check horn operation. If horn does not sound or fails to
function satisfactorily, see TROUBLESHOOTING.
a. Turn ignition key switch ON.
b. Press horn switch to activate horn.
c. Turn ignition key switch OFF.
1WARNING1WARNING
After installing seat, pull upward on front of seat to be
sure it is in locked position. While riding, a loose seat can
shift causing loss of control, which could result in death
or serious injury. (00070a)
5. Install seat. See 2.38 SEAT.

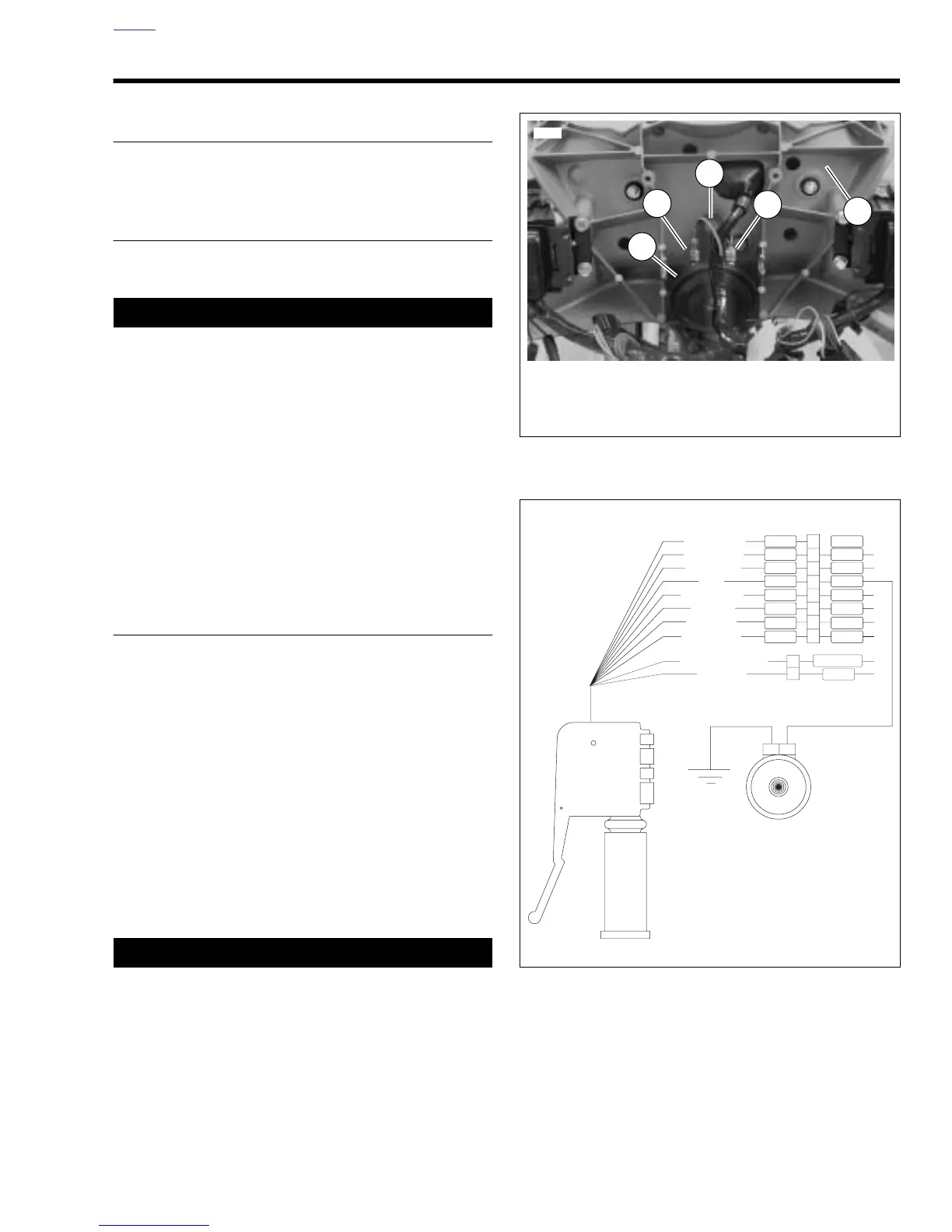

Figure 7-69. Horn Assembly
Figure 7-70. Horn Wiring
1. Horn
2. Horn connectors [122 A & B]
3. Horn fastener
4. Fairing support bracket
