2-20 2007 Buell Firebolt: Chassis
HOME
10. See Figure 2-26. Install caliper carrier and tighten fas-
tener to 24-26 ft-lbs (32-35 Nm). See 2.15 REAR
BRAKE CALIPER.
NOTE
The brake pads may become cocked and will not allow the
rotor to slide into the caliper. Press on the brake pad from the
outside of the caliper to straighten out the pad.
11WARNING1WARNING
After repairing the brake system, test brakes at low
speed. If brakes are not operating properly, testing at
high speeds can cause loss of control, which could
result in death or serious injury. (00289a)

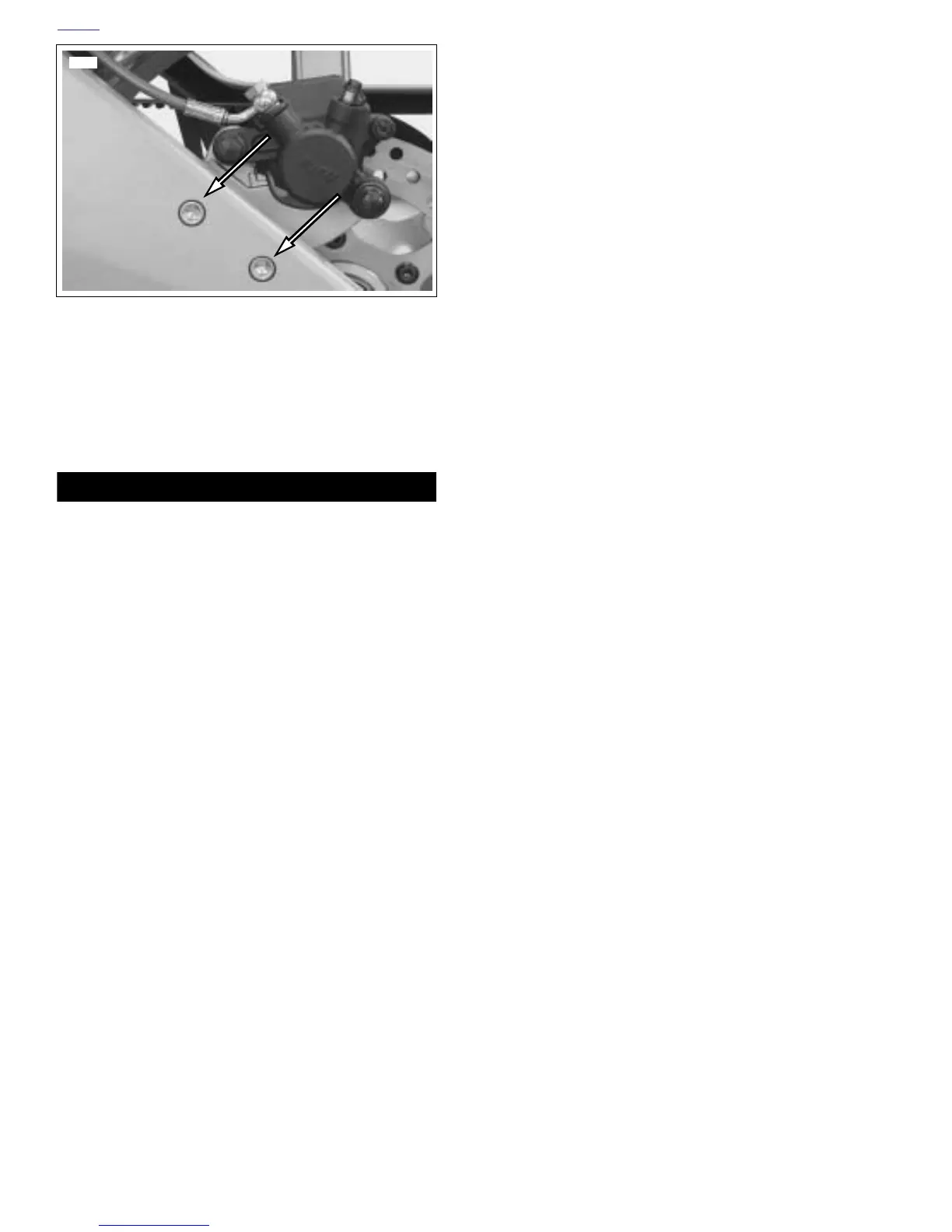

Figure 2-26. Rear Brake Caliper Carrier Fasteners
8348
