2007 Buell Firebolt: Chassis 2-75
HOME

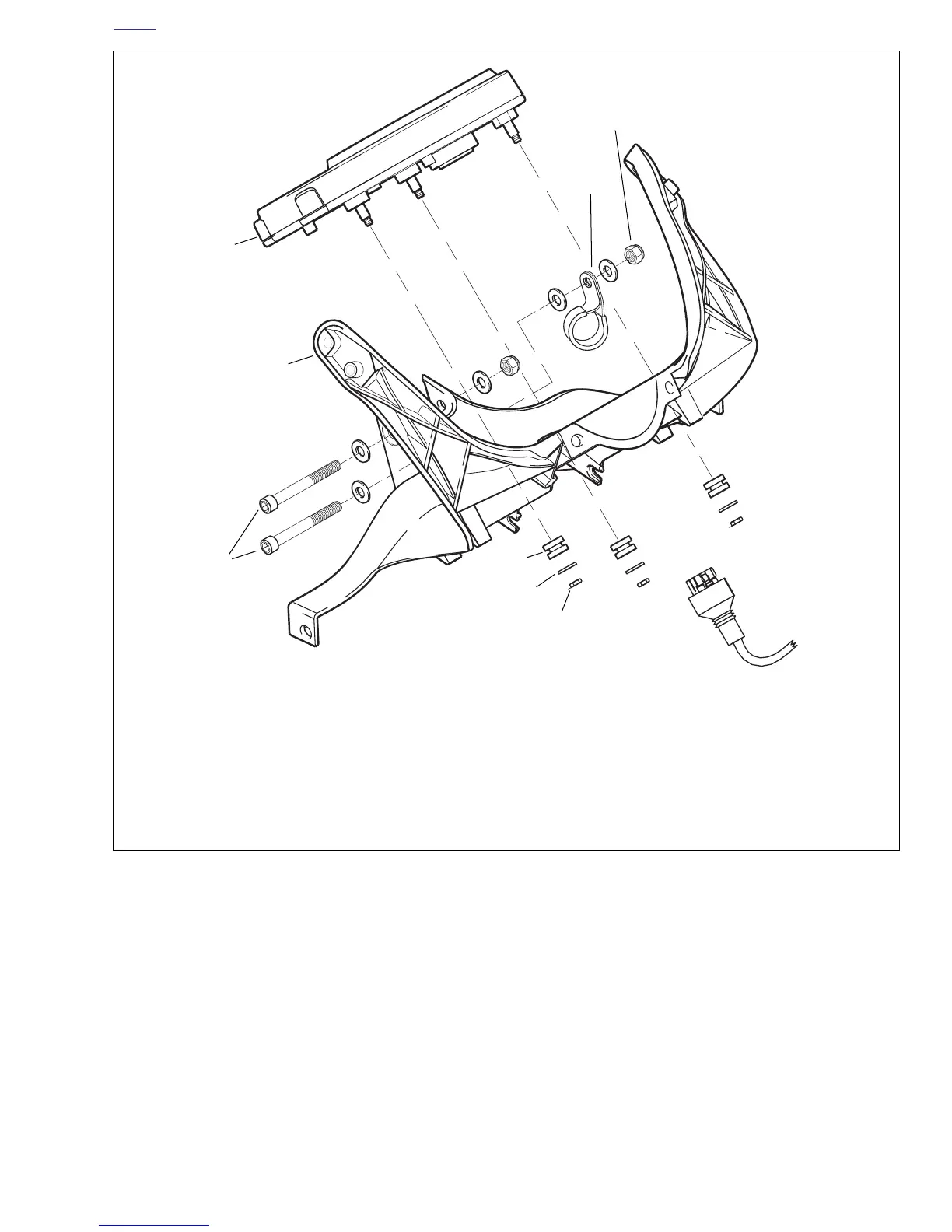

Figure 2-105. Fairing Support Bracket Assembly
1. Jam nut
2. Washer
3. Rubber grommet
4. Fairing support bracket fasteners and washers
5. Fairing support bracket
6. Instrument cluster
7. P-clamp
8. P-clamp fastener and washers
b0958x2x
1
2
3
6
5
4
7
8
