Buell 2007 FIREBOLT - Page 210

2007 Buell Firebolt: Chassis 2-79
HOME

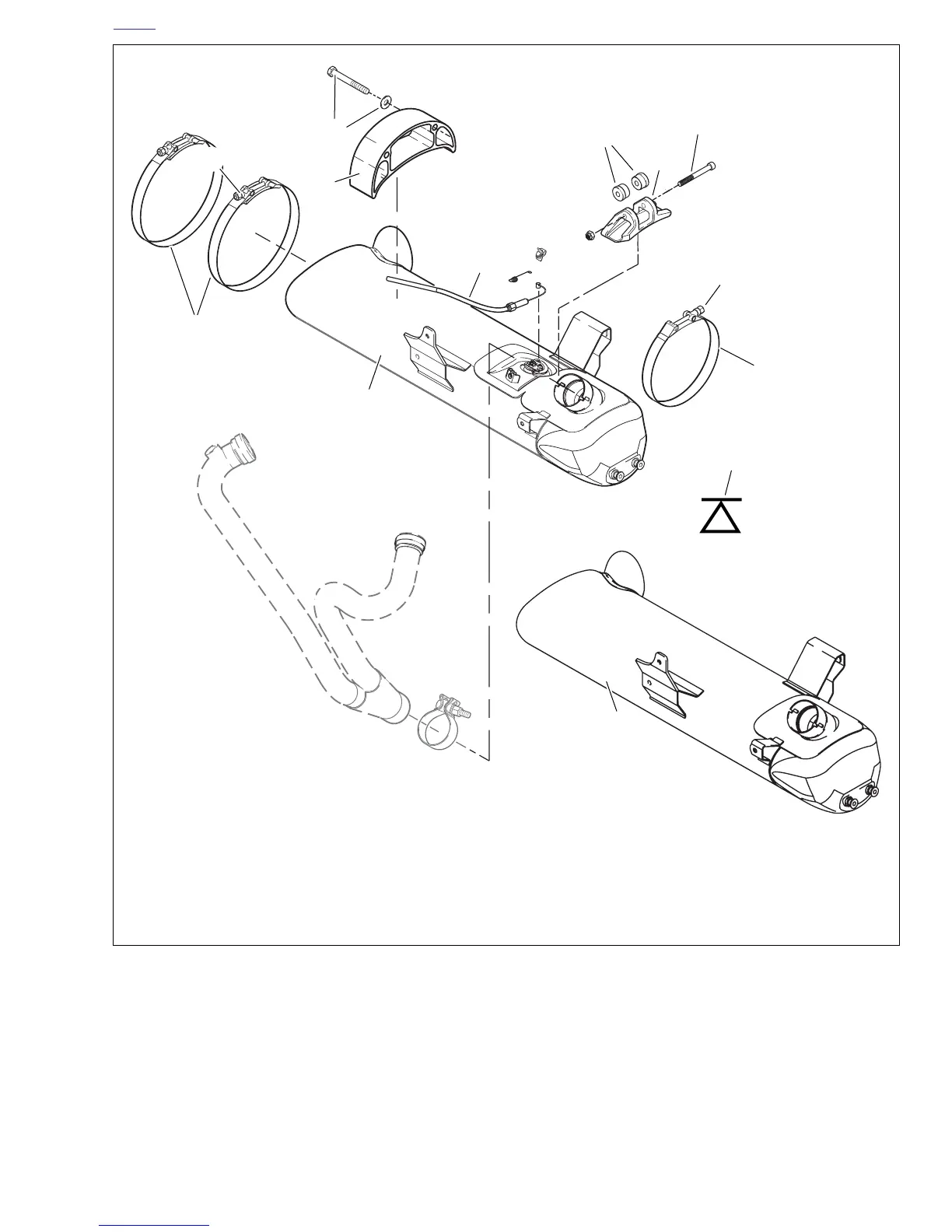

Figure 2-108. Muffler Assembly
b1259x1x
1. Rear muffler strap fastener (2)
2. Rear muffler strap (2)
3. Interactive muffler (XB12R)
4. Muffler (XB9R)
5. Front muffler strap
6. Front muffler strap fastener
7. Front muffler mount
8. Front muffler mount fastener
9. Front muffler mount bushings
10. Interactive exhaust cable
11. Rear muffler bracket
12. Rear muffler bracket fasteners (2)
13. Jacking point on muffler
*Jacking point symbol shown
on both sides of muffler.
2
1
3
4
6
5
7
8
10
11
13
9
12
