2-90 2007 Buell Firebolt: Chassis
HOME
5. See Figure 2-120. Cut cable strap (3) from subframe tail
assembly holding vent hose (1), main wire harness (2)
and shock reservoir hose (4).
6. Disconnect main wire harness connection (5).
7. Disconnect turn signal bullet connections and tail light
connections. See 7.14 TURN SIGNALS and 7.13 TAIL
LAMP.
8. Remove christmas tree tie that holds the turn signals and
tail light wire harness to subframe tail assembly.
9. Remove turn signals and reflectors from lower body
work. See 7.14 TURN SIGNALS.
10. See Figure 2-119. Remove license plate fasteners (12)
from lower tail body work (9) and remove license plate
bracket (13).
11. Remove passenger footpeg mounts. See 2.29 FOOT-
PEG, HEEL GUARD AND MOUNT.
12. Remove lower body work (9) and trunk (11) from sub-
frame tail assembly (7).
a. Remove lower body work (9) underneath subframe
tail assembly by removing fasteners (10).
b. Remove trunk (11).
13. See Figure 2-121. Disconnect main battery ground (1)
and ground to wire harness (2).
14. Remove main fuse case (3) from subframe tail assembly.
NOTE
When removing the main fuse case from subframe tail
assembly, be very careful not to bend the subframe.
15. See Figure 2-121. Cut cable strap (4) holding rear brake
reservoir hose (5) and rear brake light wire (6).
16. Disconnect rear brake light connection (6).

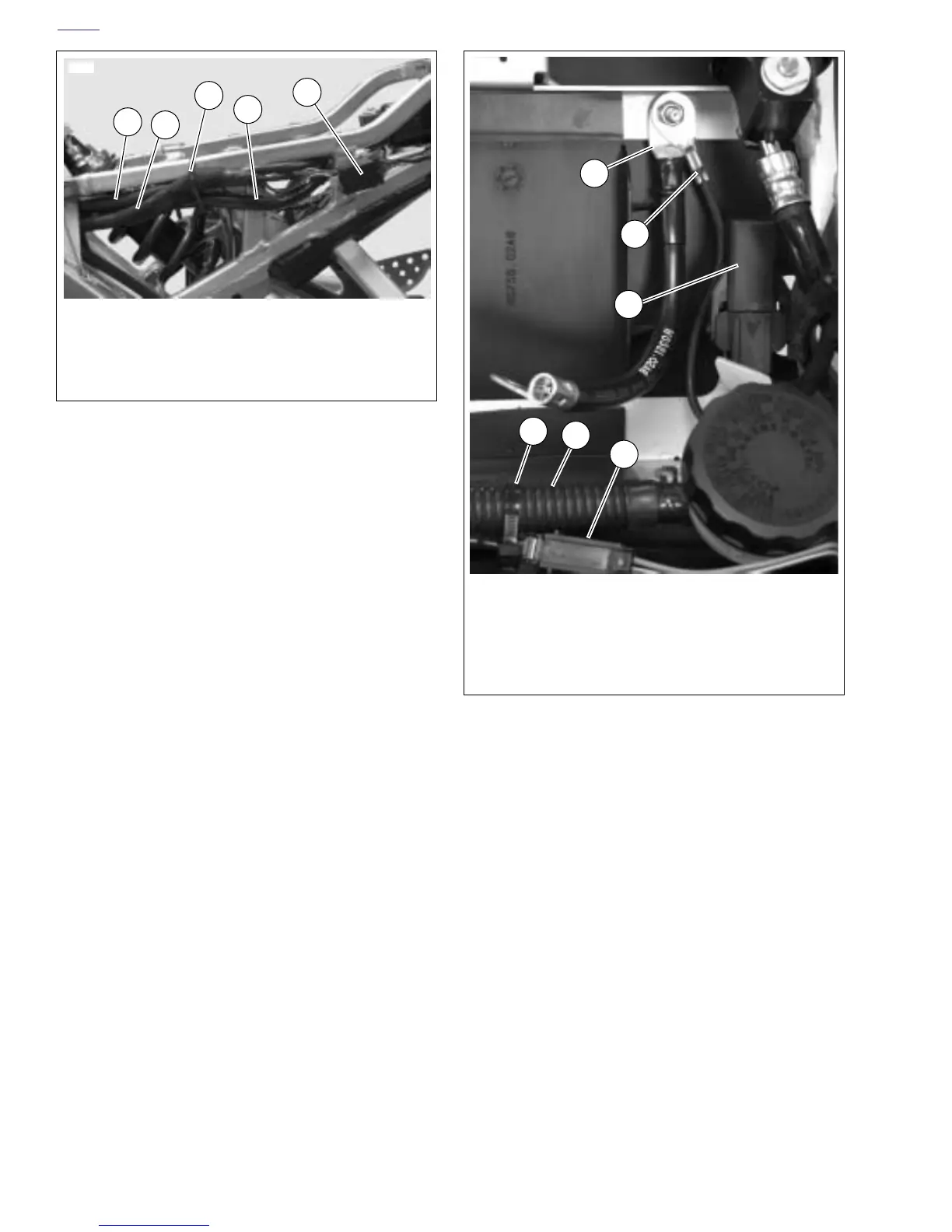

Figure 2-120. Left Side Subframe Tail Assembly
Hose and Wire Routing
8463
1. Fuel vent hose
2. Main wire harness
3. Cable strap
4. Rear shock reservoir hose
5. Main wire harness connection
1
2
3
5
4
Figure 2-121. Inside Subframe Tail Assembly
Hose and Wire Routing
8478
1. Main battery ground
2. Wire harness ground
3. Main fuse case
4. Cable strap
5. Rear brake reservoir hose
6. Rear brake light wire and connector
1
2
3
6
4
5
