3-10 2007 Buell Firebolt: Engine
HOME
12. Disconnect and remove air scoops, right and left sides.
See 2.35 AIR SCOOPS.
13. Remove idler pulley . See 6.6 DRIVE BELT SYSTEM.
NOTE
See 7.6 INTERACTIVE EXHAUST SYSTEM (XB12 MODEL)
for specific details on removal of interactive components.
14. See Figure 3-3. Remove muffler. See 2.28 EXHAUST
SYSTEM.

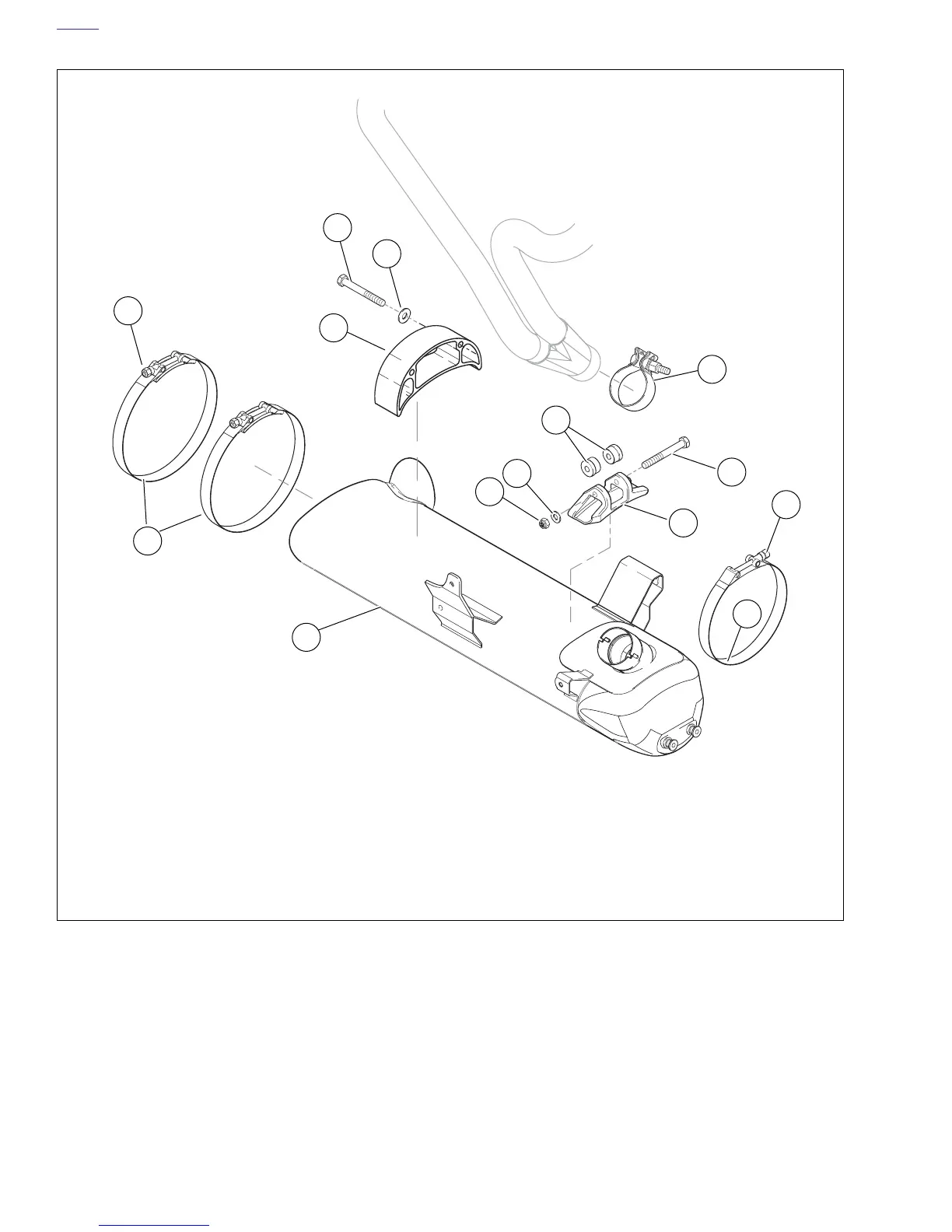

Figure 3-3. Muffler and Mounting System (XB9R)
1. Clamp, Torca
2. Muffler mount, front
3. Screw, front muffler mount (1)
4. Bushings, front muffler mount (2)
5. Flat washer, front muffler mount (1)
6. Nut, front muffler mount (1)
7. Front muffler strap fastener
8. Muffler strap, front
9. Muffler bracket, rear
10. Screw, rear muffler bracket (2)
11. Flat washer, rear muffler bracket (2)
12. Rear muffler strap fastener
13. Muffler strap, rear (2)
14. Muffler
11
9
14
8
2
1
13
3
10
b0986
x
3
x
12
7
4
5
6
