3-34 2007 Buell Firebolt: Engine
HOME
21. See Figure 3-45. Install the feed, return and vent oil lines
starting at the engine and working towards the rear of the
vehicle. Leave all oil line fittings loose at the engine at
this time. See 3.10 OIL LINE FITTINGS.
NOTE
The feed oil line (3) is routed through the right side of the rear
muffler bracket (10).

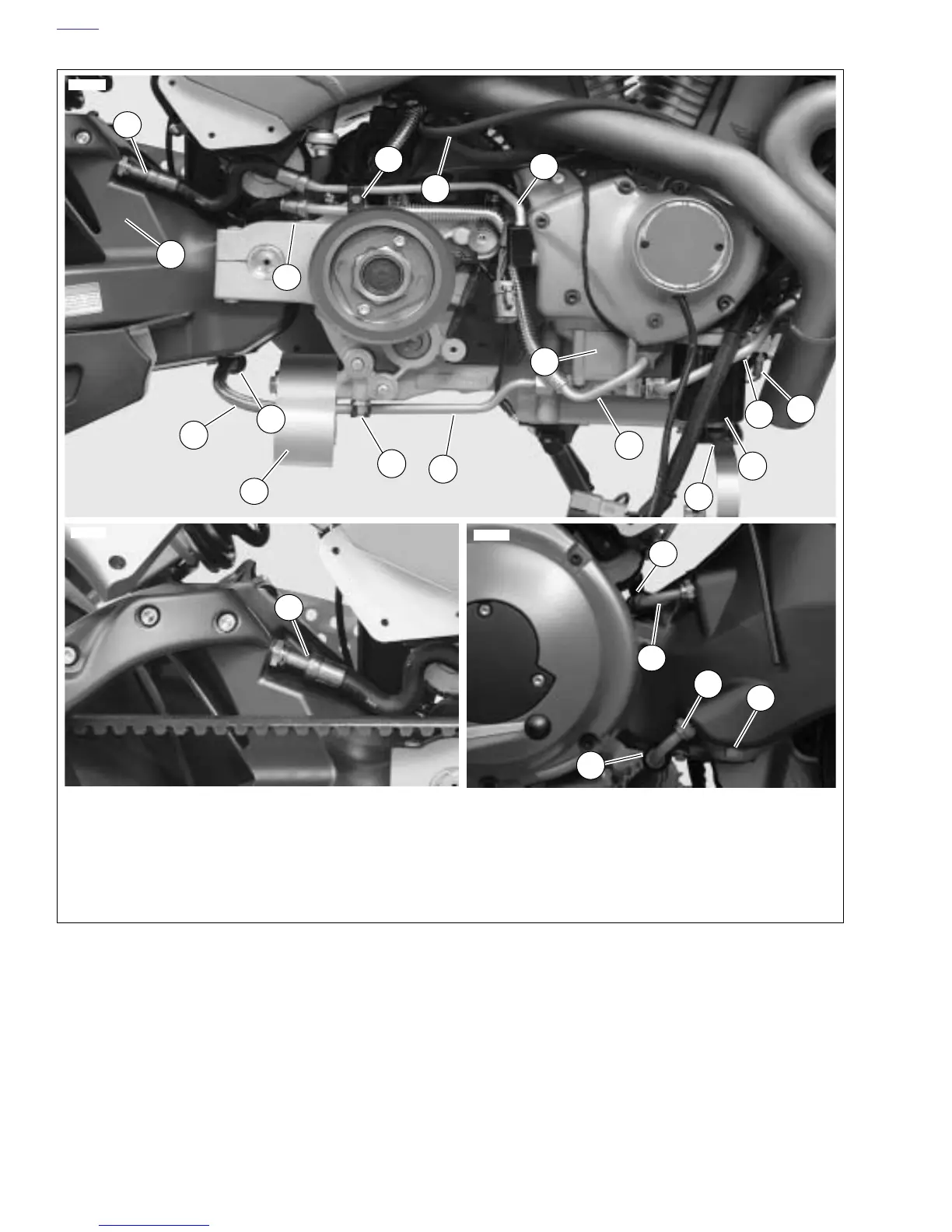

Figure 3-45. Oil Lines and Connections
1. Swingarm/Oil reservoir
2. Vent oil line
3. Feed oil line
4. Return oil line
5. Feed oil line from oil pump to oil cooler
6. Feed oil line from oil cooler to crankcase
7. Oil tank drain plug
8. Oil Filter
9. Front muffler mount
10. Rear muffler bracket
11. Cable, interactive exhaust
12. P-clamp
13. Oil line clamp
14. Oil pump
2
7
5
4
3
4
11964b
11963a
10
1
2
3
3
8
9
6
4
11972
11
12
12
13
12
12
14
2
